Model#: 22320 7201
Stock#: DL-22320
UPC/GTIN/EIN: 085077223224
FREE SHIPPING OVER $75!
Model#: 22320 7201
Stock#: DL-22320
UPC/GTIN/EIN: 085077223224
FREE SHIPPING OVER $75!

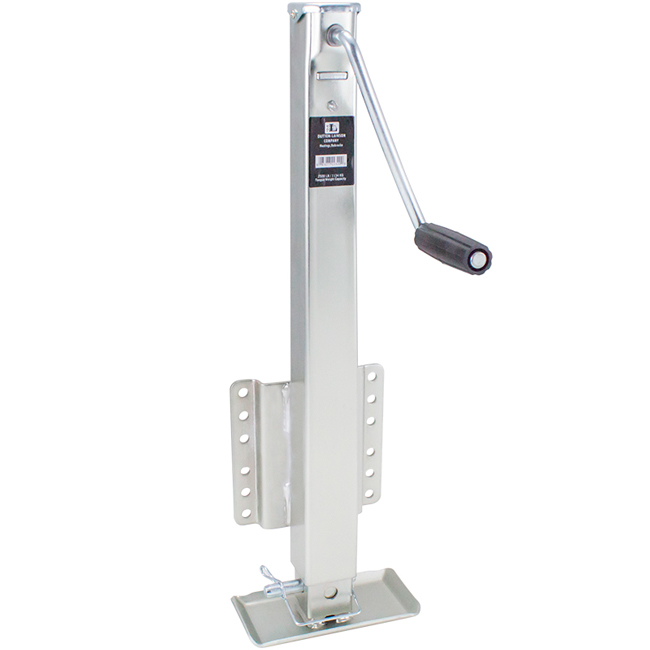

2500 lb bolt-on drop leg jack with hardware, side wind, plated finish. Imported, tested to D-L standards
| Model | Mounting Style |
Handle Type |
Capacity | Travel | Overall Height (1) |
Bracket Height (2) |
|---|---|---|---|---|---|---|
| 7201 | Bolt-On (Square Tube) | Side | 2500 lb/1134 kg | 15" | 23-1/2" | 10-1/4" (3) |
(1) Overall height is measured from top of jack to ground in retracted position, not including handle.
(2) Center of swivel points to ground when retracted.
(3) Top mounting hole to ground when retracted.
