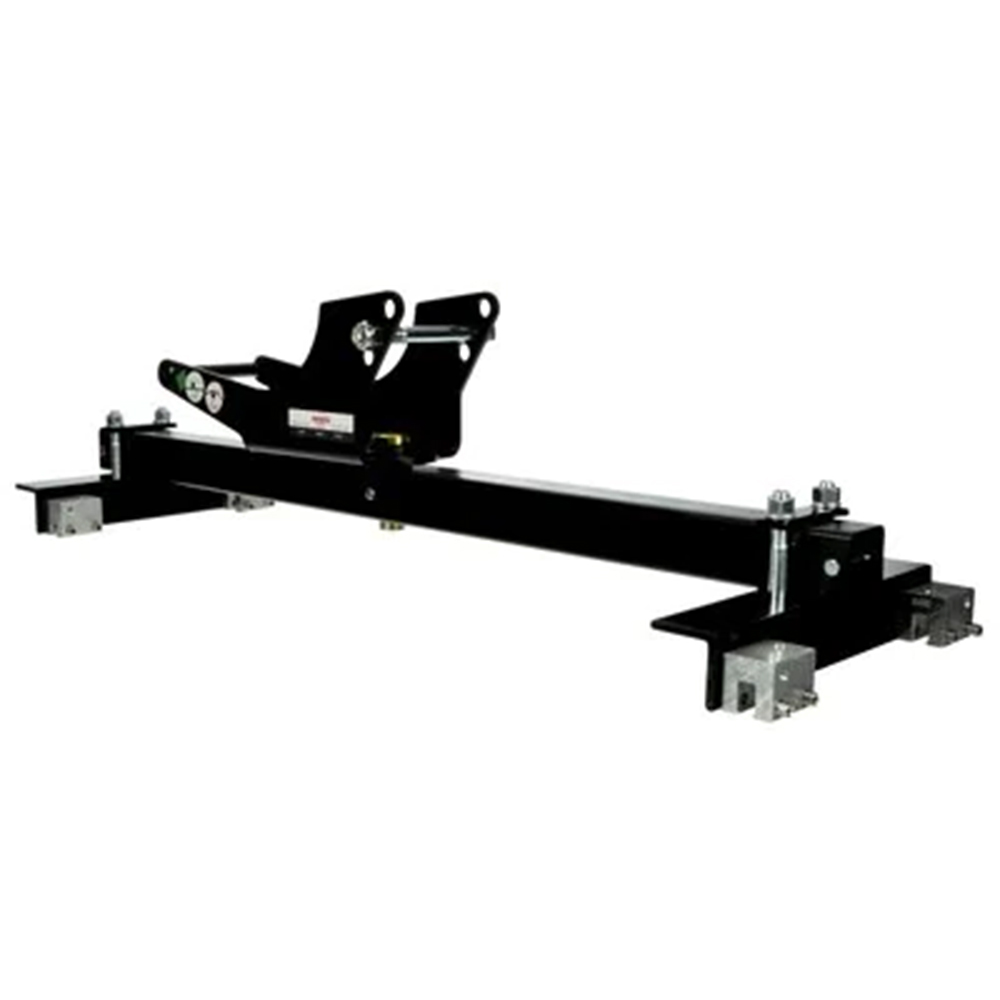

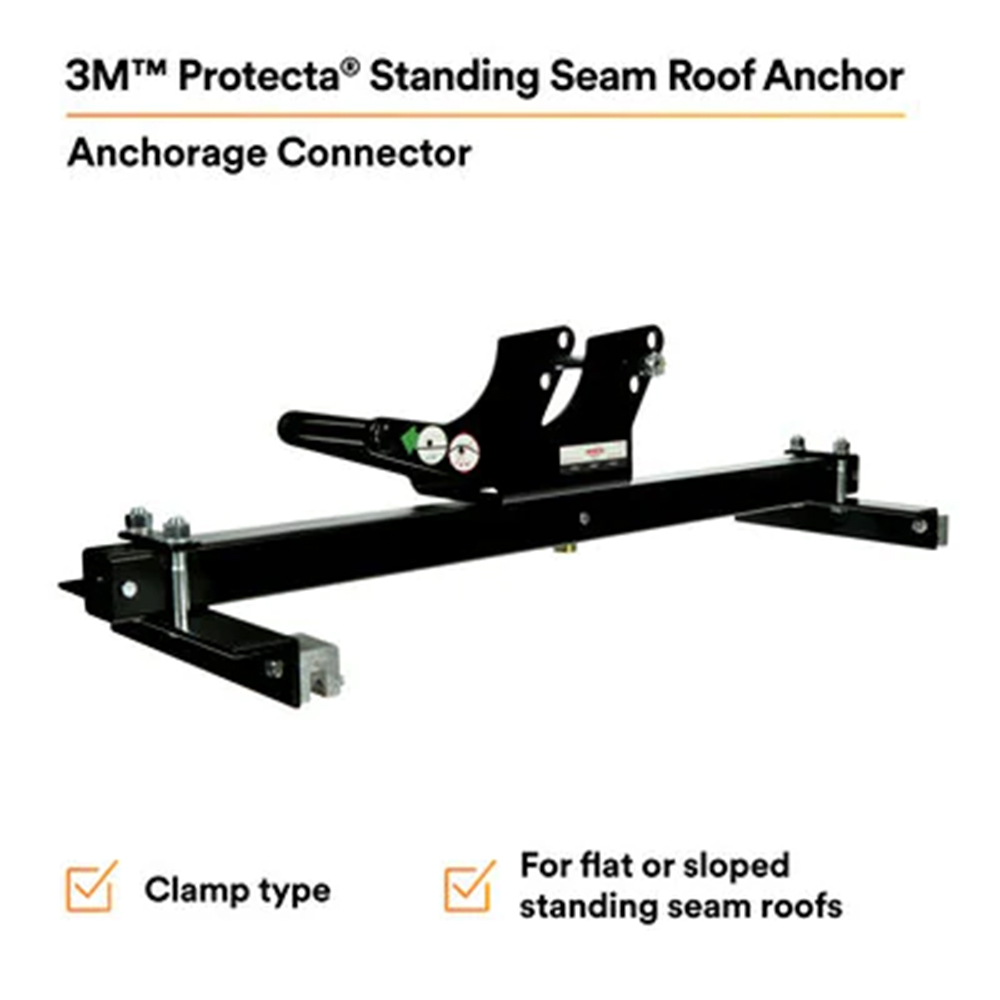

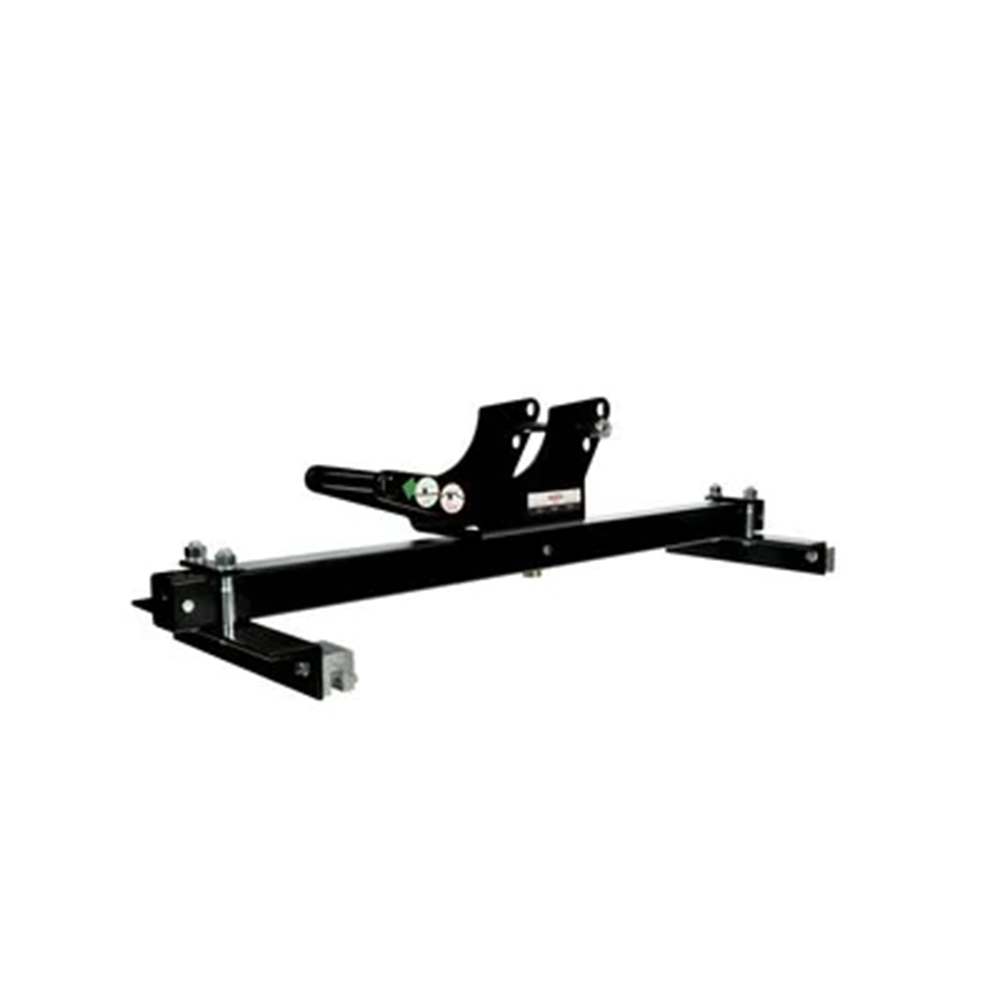

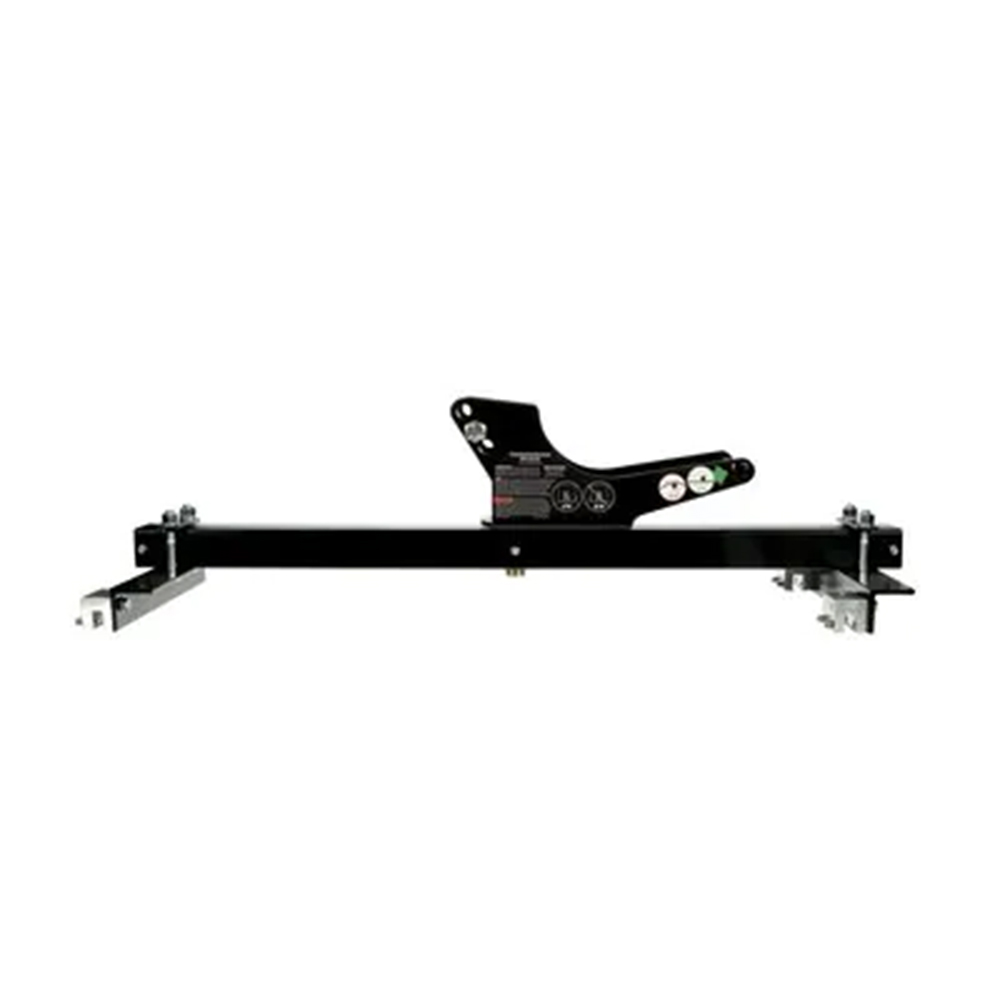

3M DBI Sala Protecta Reusable Roof Anchor for Standing Seam

The 3M DBI Sala Protecta Reusable Roof Anchor for Standing Seam has high strength and durability to stand up to the toughest environments. Anchorages are sold by what they connect to (general/all-purpose, steel, concrete, roof, or specialty), whether they are fixed or mobile, and whether they are permanent or portable. They all must provide a secure point of attachment for a complete personal fall arrest system, and must be capable of supporting a load of 5,000 lbs. (22kN) or of meeting OSHA’s criteria of a 2 to 1 safety factor.

Features:

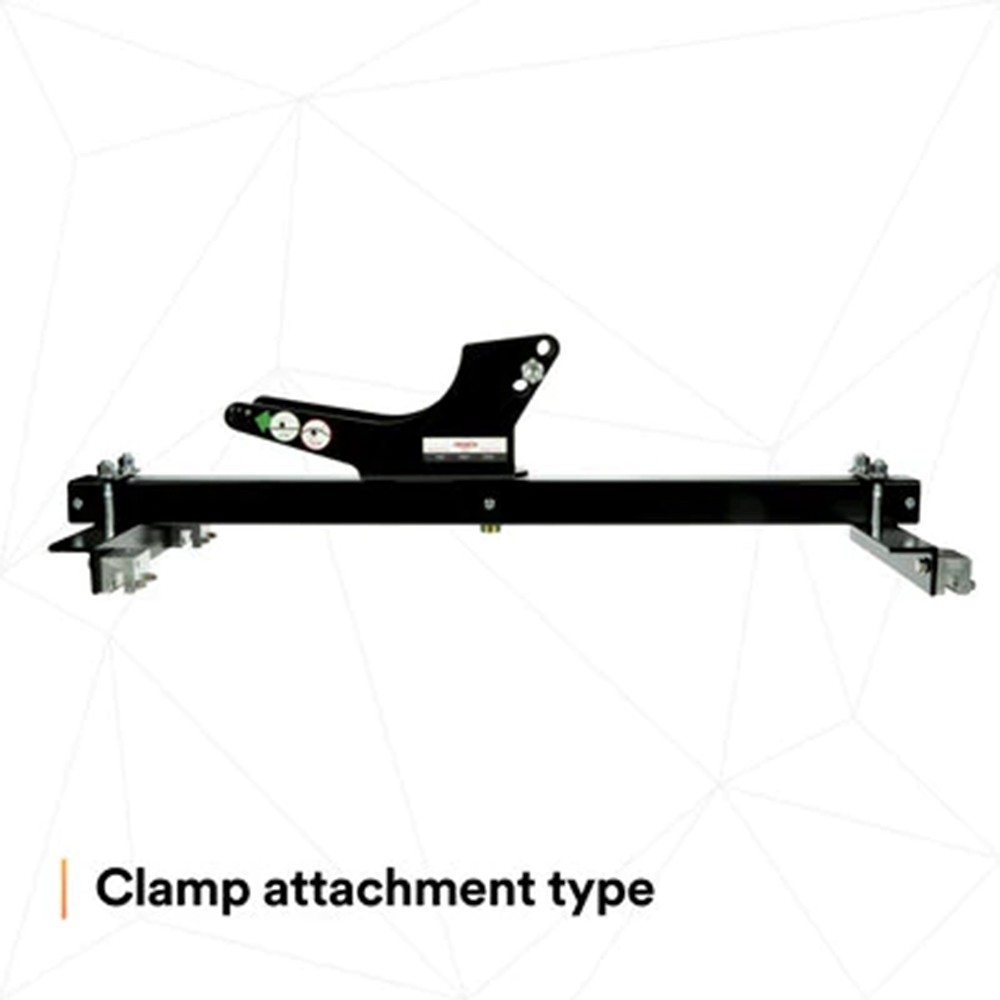

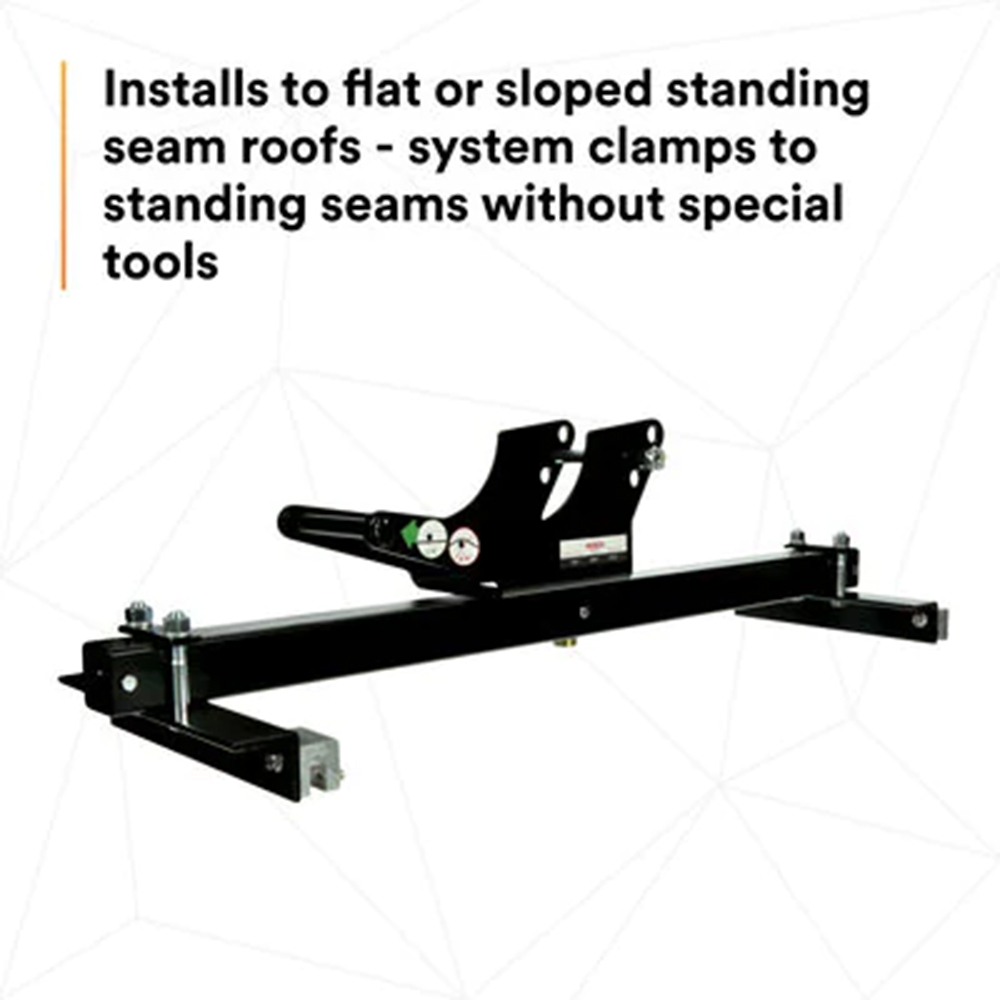

• Installs to flat or sloped standing seam roofs. System clamps to standing seams without special tools, providing an anchorage point for an SRL.

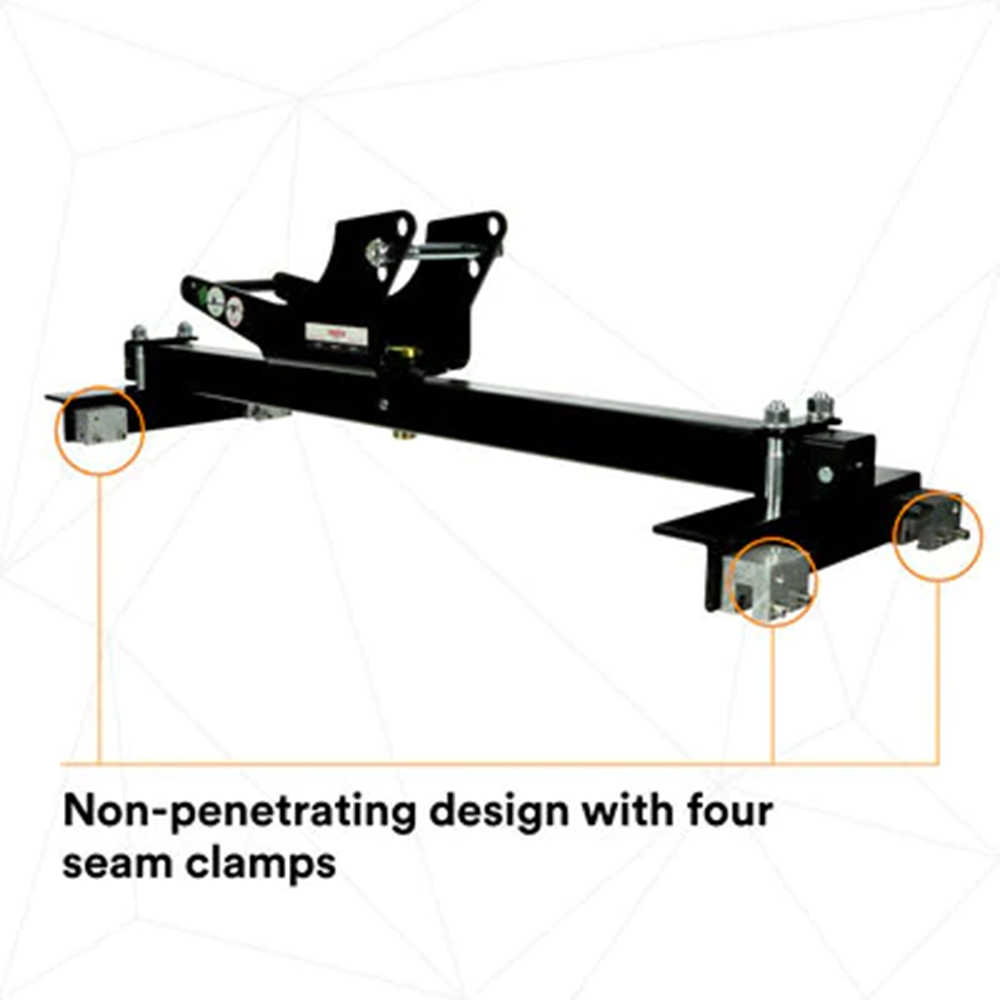

• Non-penetrating design with four-seam clamps allows for quick attachment without damaging the roof.
• Adjustable legs with a simple bolt style allow you to size the system to a variety of seam spacing. Fits 12, 24, 30, 32, and 36 in. spacing.

Specifications:

• Anchor Hook Material: Metal
• Anchor Install Type: Reusable
• Brand: PROTECTA
• Case Quantity: 1 EA
• Connected Safety ID Equipped: No
• For Use With: 3M Protecta Self-Retracting Lifeline (SRLs)

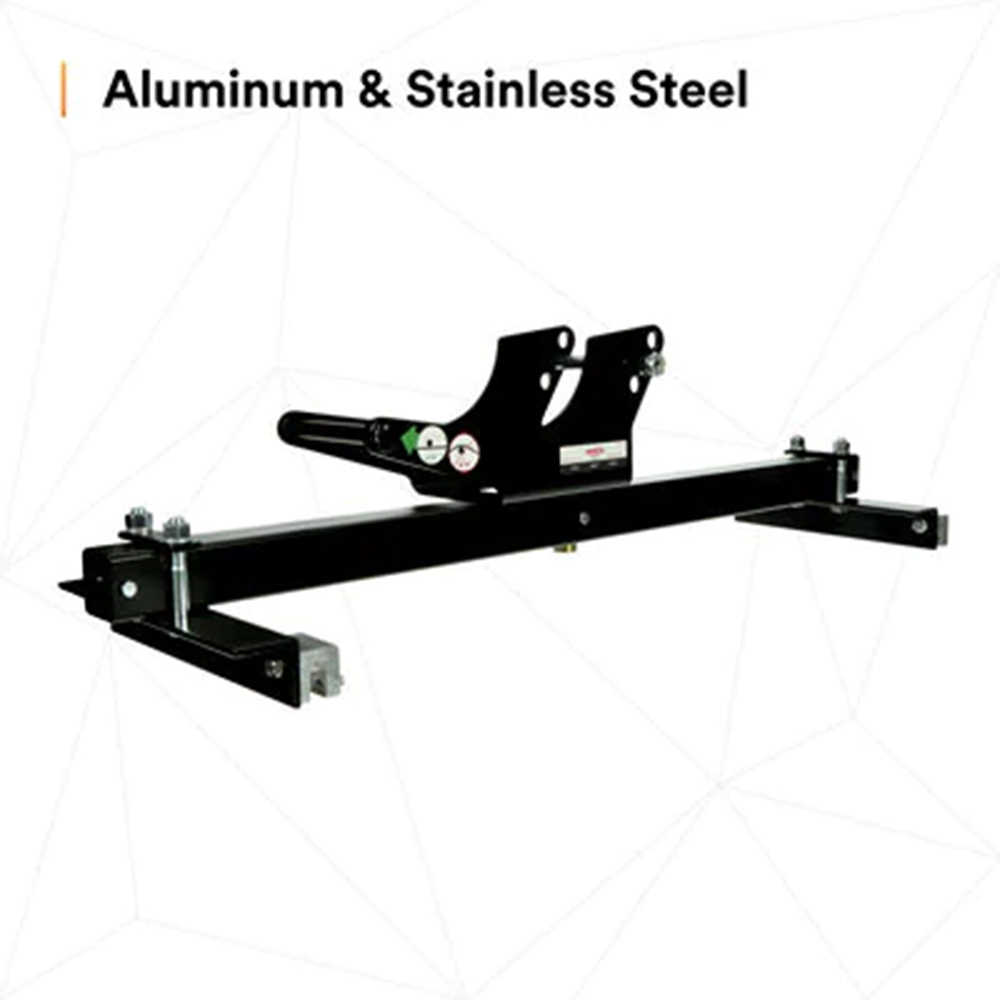

• Housing Material: Aluminum & Stainless Steel
• Material: Steel
• Mounting Type: Portable & Reusable
• Product Type: Standing Seam Roof Anchor - For SRL
• Recommended Application: Construction
• Recommended Industry: Construction
• Specifications Met: OSHA 1910.140, OSHA 1926.502
• Weight (Imperial): 27.6 lb.
• Weight (Metric): 12.5 kg
• Weight Capacity: 420 lbs. (190 kg)
• Weight Capacity (Imperial): 310 lb.
• Weight Capacity (Metric): 140.6 kg
