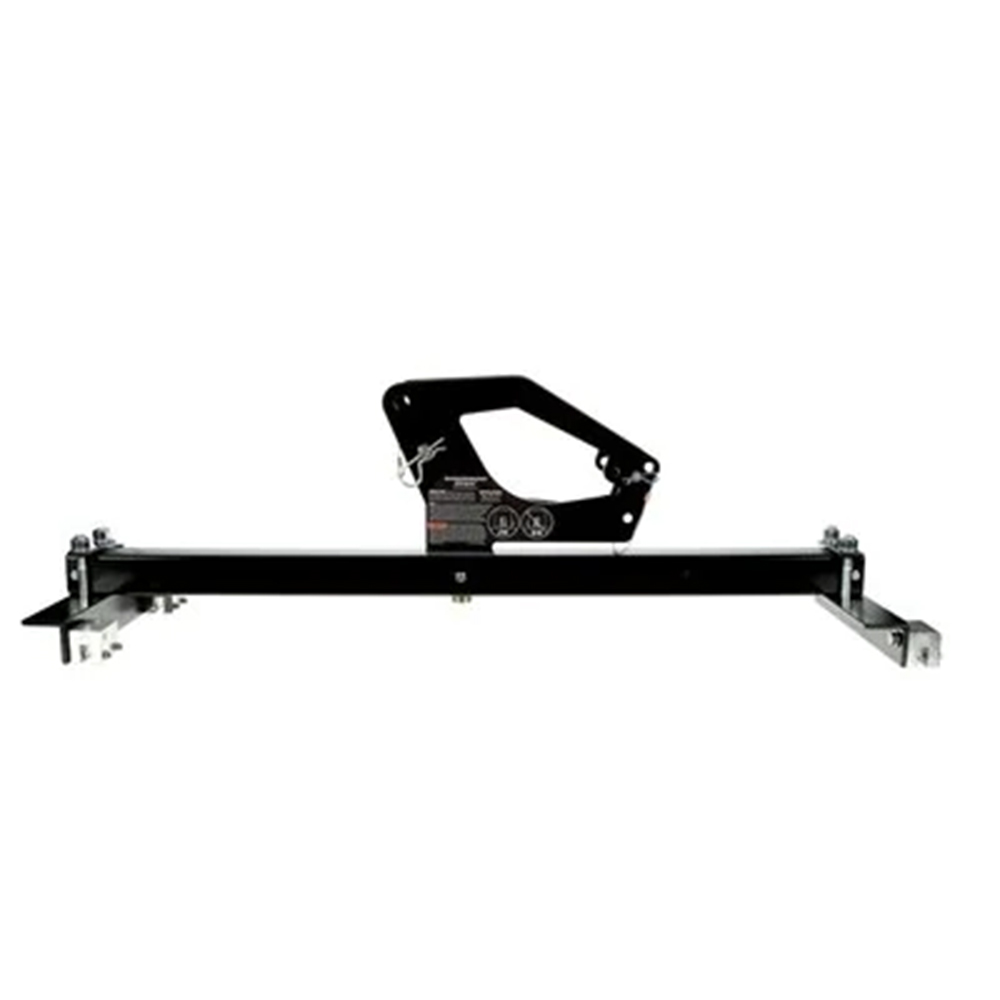

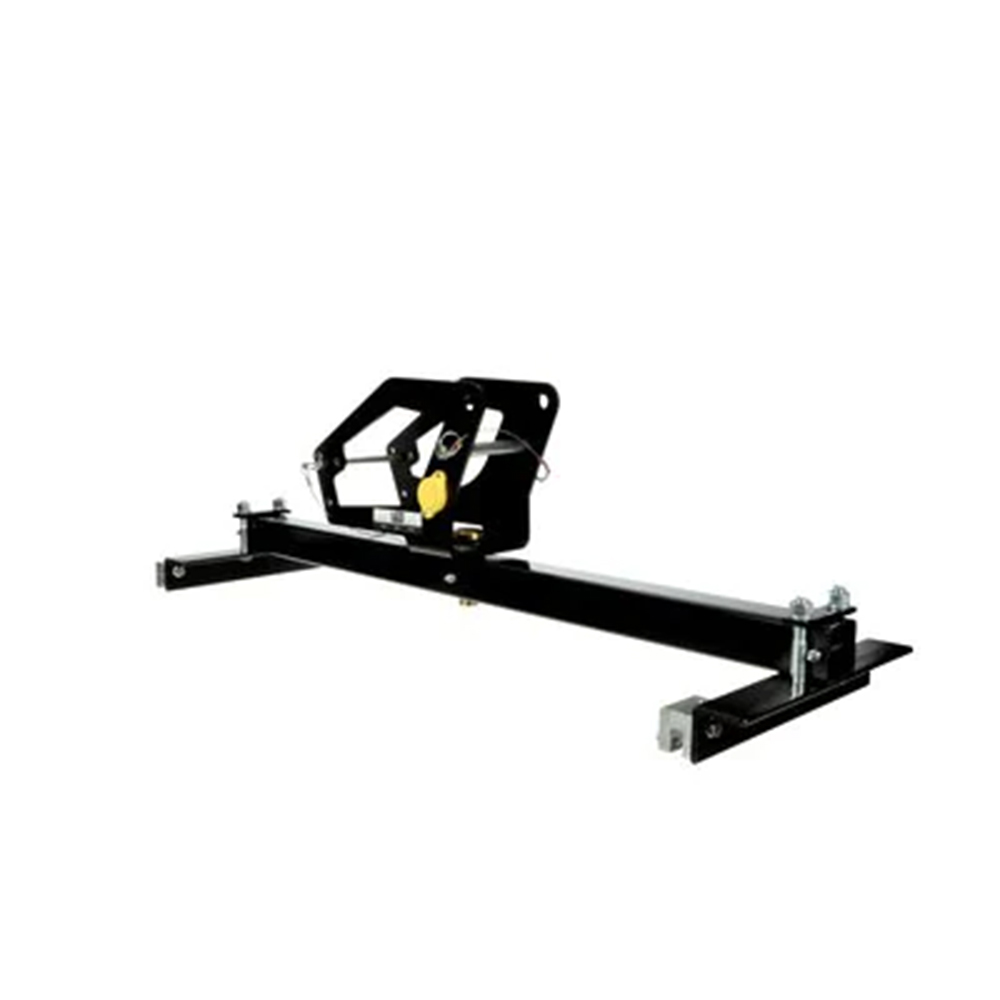

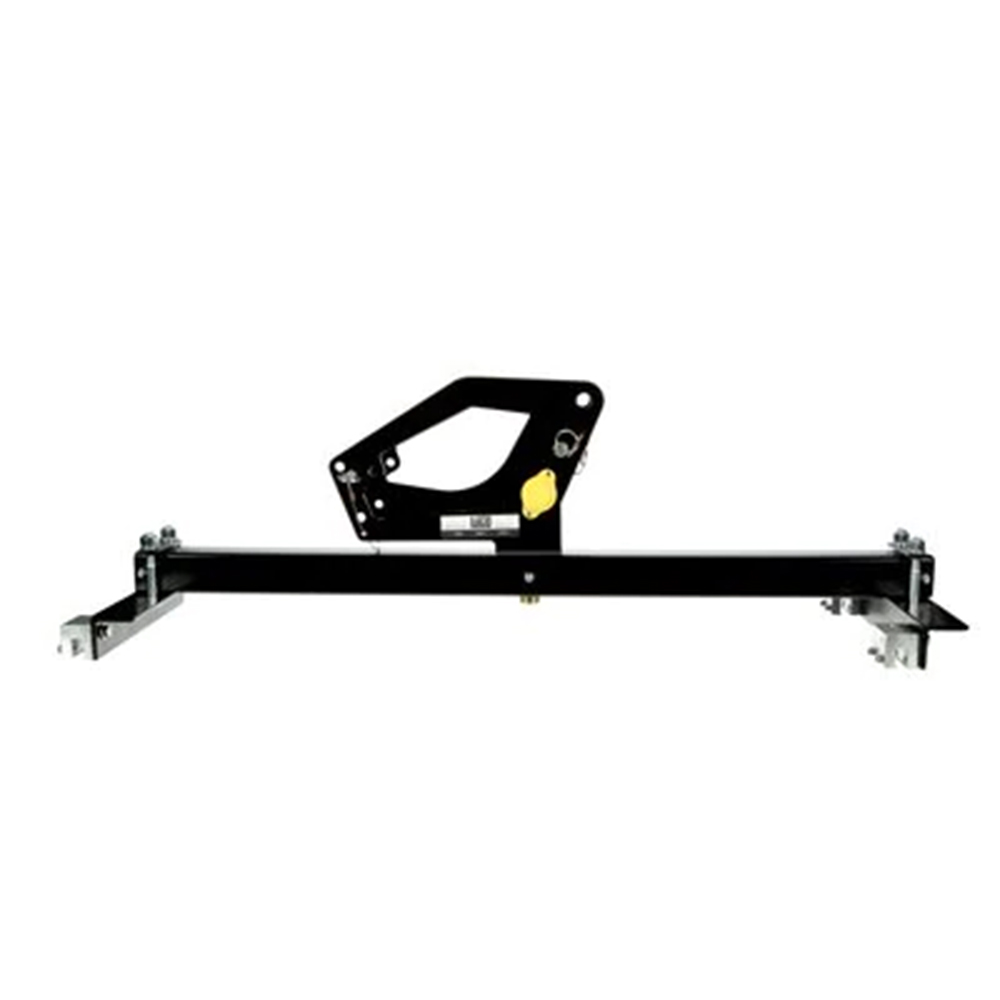

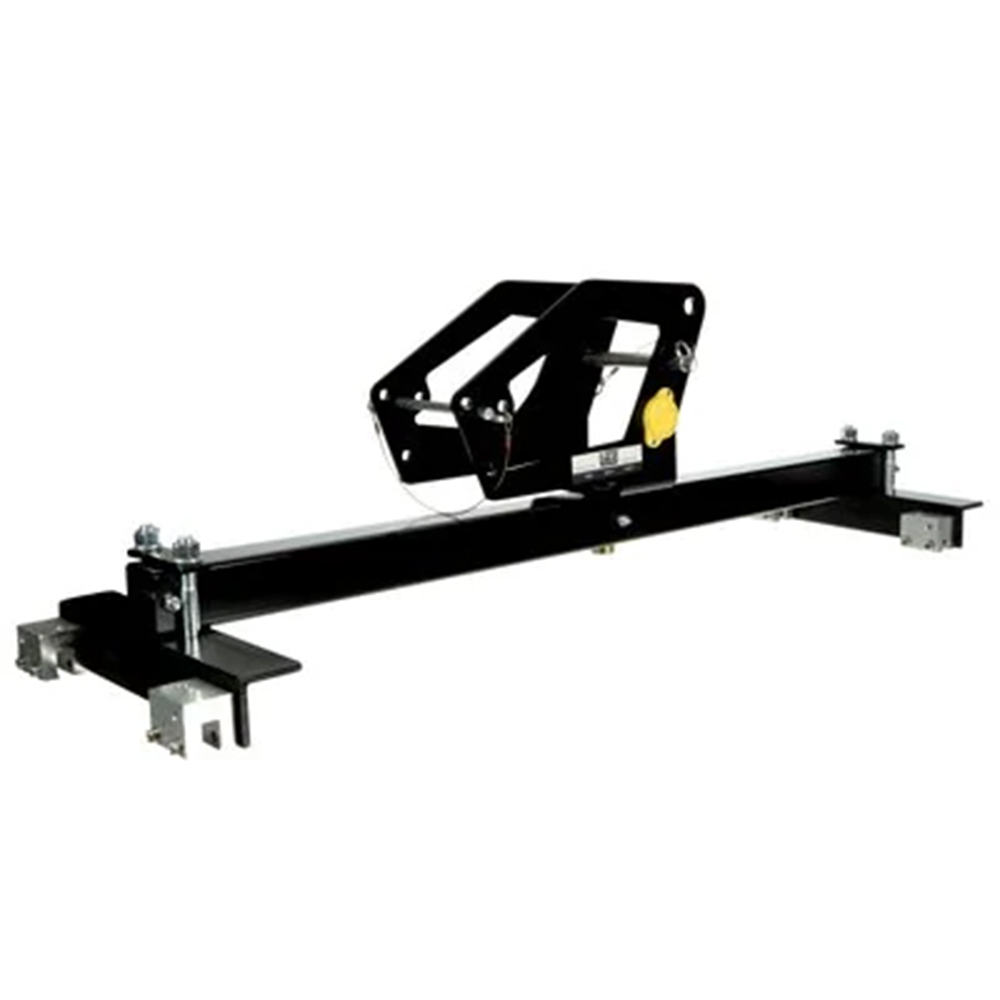

3M DBI Sala Standing Seam Roof Anchor

The 3M DBI Sala Standing Seam Roof Anchor has high strength and durability to stand up to the toughest environments. Anchorages are sold by what they connect to (general/all-purpose, steel, concrete, roof, or specialty), whether they are fixed or mobile, and whether they are permanent or portable. They all must provide a secure point of attachment for a complete personal fall arrest system, and must be capable of supporting a load of 5,000 lbs. (22kN) or of meeting OSHA’s criteria of a 2 to 1 safety factor.

Features:

• Installs to flat or sloped standing seam roofs. System clamps to standing seams without special tools, providing an anchorage point for an SRL, including the 3M DBI-SALA Smart Lock Self-Retracting Lifeline.
• Built-in non-penetrating clamp design with four-seam clamps allow for quick attachment without damaging the roof.
• Slide on the tube legs fit 12,24, 30, 32, and 36 in. seam spacing (30.5, 61, 76.2, 81.3, and 91.4 cm).

Specifications:

• Anchor Hook Material: Metal
• Anchor Install Type: Reusable
• Brand: DBI-SALA
• Case Quantity: 1 EA
• Connected Safety ID Equipped: No
• For Use With 3M DBI-SALA Smart Lock Self-Retracting Lifeline (SRL)
• Housing Material: Aluminum & Stainless Steel
• Housing Type: Aluminum, Stainless Steel
• Material: Steel
• Mounting Type: Portable & Reusable
• Product Color: Black
• Product Type: Standing Seam Roof Anchor - For SRL
• Recommended Application: Construction
• Recommended Industry: Construction
• Specifications Met: OSHA 1910.140, OSHA 1926.502
• Weight (Imperial): 27.7 lb.
• Weight (Metric): 12.6 kg
• Weight Capacity: 420 lbs. (190 kg)
• Weight Capacity (Imperial): 420 lb.
• Weight Capacity (Metric): 190.5 kg
