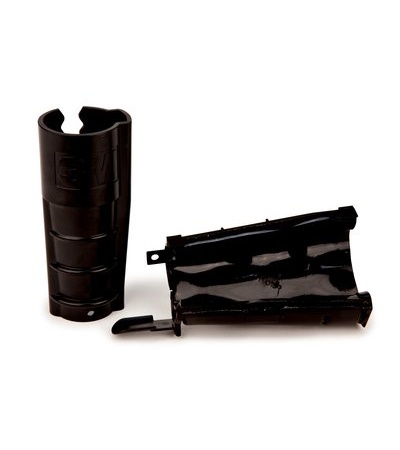

3M Slim Lock Closure 716
3M™ Slim Lock Classic Closure is a re-enterable, re-usable and easy-to-use solution for the wireless industry. It protects RF connections at the antenna and remote radio units. The clamshell-like design of the closure allows re-entry, enabling repeated use of the closure. This Slim Lock Closure is for 1/2" Jumper Coax Cable with DIN 716 connections.
Features:
- Designed for RF connection points on both the antenna and remote radio unit
- The sealing-gel technology found inside the closure displaces air around the cable and connector
- Designed for wireless weatherproofing applications
- Neck size range: 1 to 1.03"
- Use with cables with diameters of 0.53 to 0.63 inches
- Used in DIN-716 typical connector applications
- RoHS 2011/65/EU Compliant
Specifications:
- Connector Neck Size: 1.00" - 1.03" (25.4 - 26.2 mm)
- Connector Type: DIN 716
- Diameter: 2.19 Inch
- Environmental Protection: IP68
- Length: 5"
- Operating Temperature: -40 to 65°C
- Product Type: Closue
- Solution For: Wireless Network: Weatherproofing
