3M Thin-Wall EPS-300 Heat Shrink Tubing

The 3M Thin-Wall EPS-300 Heat Shrink Tubing is a dual wall tubing that provides the advantage of an integral, adhesive-lined construction. This flame retardant tubing with a 3:1 shrink ratio offers insulation for 600V-rated applications. The flexible polyolefin construction features an internal layer of thermoplastic adhesive, which offers moisture seal protection in automotive and marine applications.

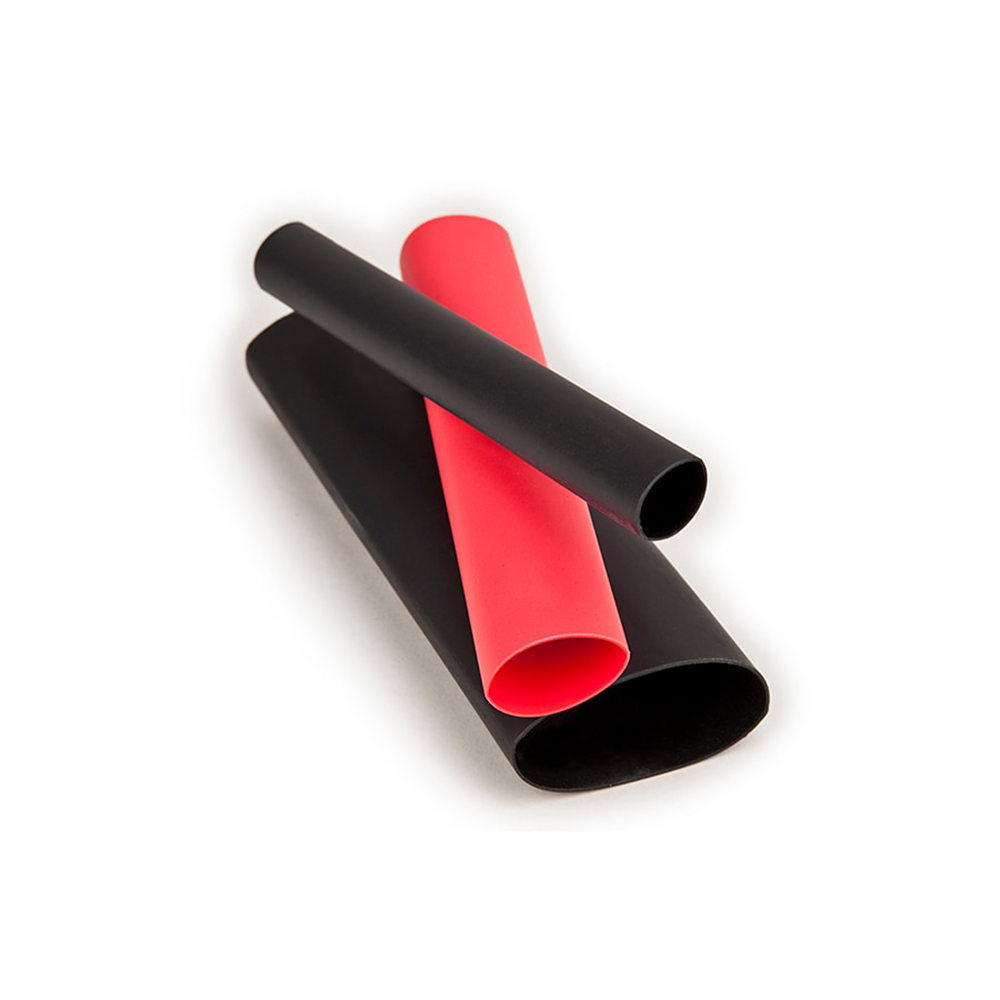

The 3M Heat Shrink Tubing EPS-300 is color coded for quick and easy identification of the wire. It provides a skintight fit and strain relief protection for electronic components, wire splices, wire bundles, and harness breakouts. This flame retardant tubing has a heat-shrinkable outer wall that is irradiation cross-linked for abrasion resistance and helps to maintain the high flow as well as good adhesion characteristics. When the tubing cools down, it forms a permanent, water-resistant barrier. It withstands a wide temperature range of 67 to 230 degrees F ( 55 to 110 degrees C). UL Listed, CSA Certified, and RoHS 2011/65/EU Compliant.

Features:

• Dual-wall construction provides abrasion resistance and moisture-seal protection
• Offers the advantage of integral, adhesive-lined construction
• Offers protection for automotive, truck, electronic components, wire splices, wire bundles, and harness breakouts
• Made of black flexible polyolefin
• Withstands temperatures of -67 to 230 degrees F (-55 to 110 degrees C)
• Flame-retardant tubing is rated for 600V applications

Specifications:

• Agency Approvals: CSA, UL Recognized
• Elongation: 450 %
• Expanded Inner Diameter: 0.5 in
• Expanded Inner Diameter (Metric): 12.70 mm
• Flame Retardant: Yes
• Flammability Rating: UL 224 All Tubing Flame Test [jacket]
• Heat Shrink Type: Adhesive-Lined Polyolefin Heat Shrink Tubing
• Inner Diameter After Shrink (Imperial): 0.16 in
• Inner Diameter After Shrink (Metric): 4.06 mm
• Inner Diameter Before Shrink (Imperial): 0.5 in
• Inner Diameter Before Shrink (Metric): 12.7 mm
• Material: Polyolefin
• Maximum Operating Temperature (Celsius): 110
• Maximum Operating Temperature (Fahrenheit): 230
• Mil-Spec: AMS-DTL-23053/5, Class 3
• Minimum Expanded Tubing I. D.: 0.5 in
• Non-Corrosive: Yes
• Operating Temperature (Celsius): -55 °C to 110 °C
• Operating Temperature (Fahrenheit): -67 °F to 230 °F
• Operating Temperature Range (Celsius): -55 °C to 110 °C
• Operating Temperature Range (Fahrenheit): -67 °F to 230 °F
• Overall Length (Imperial): 48 in
• Product Color: Black
• Recovered Inner Diameter: 0.16 in
• Recovered Inner Diameter (Metric): 4.1 mm
• Shrink Ratio: 3:1
• Solution for: Long-haul/Metro Loop Network: Outdoor, Access Network: FTTH/FTTB/CATV, Wireless Network: Backhaul, Access Network: xDSL, Long-haul/Metro Loop Network: CO/POP
• Tensile Strength (Imperial): 2100 Pound-Force Per Square Inch
• Tubing Type: Dual Wall (Adhesive Lined)
• UL File Number: E-157227

Available Options:

• Length:

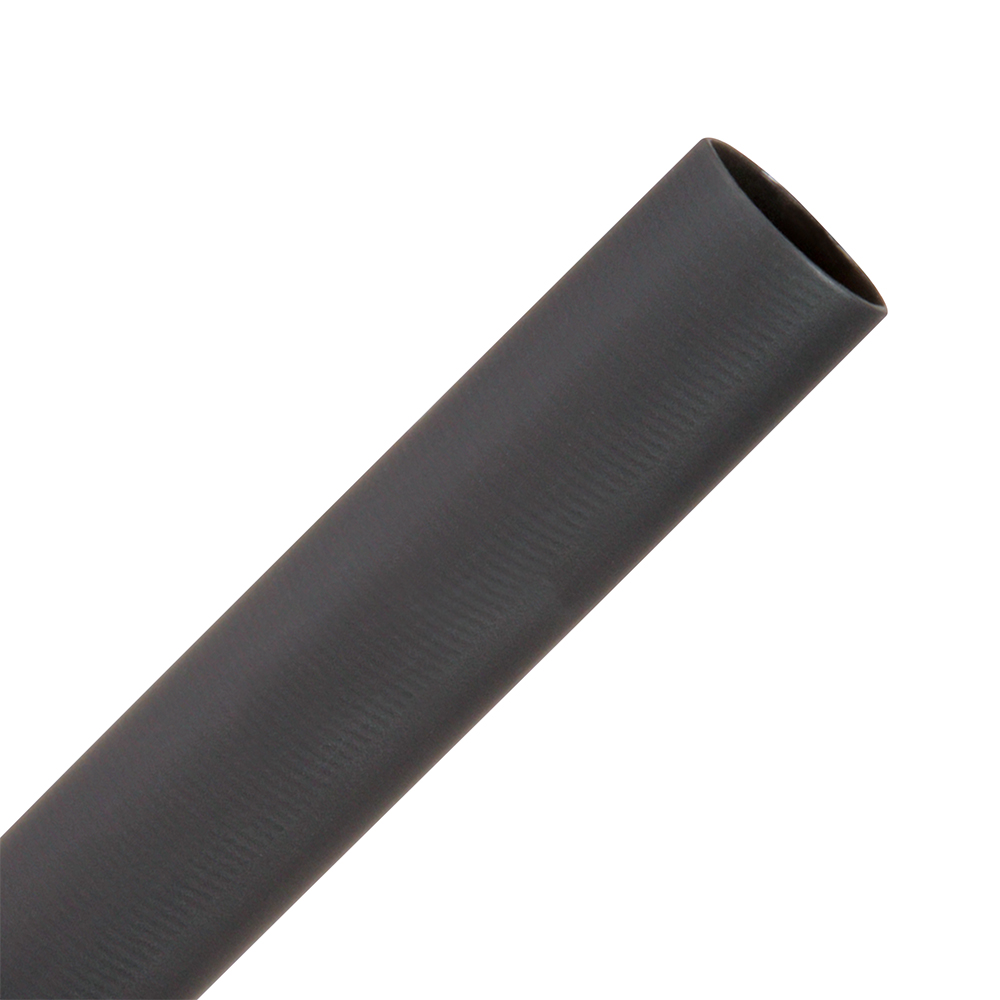

  • 1/2" W x 48" L/Black (7000133616)

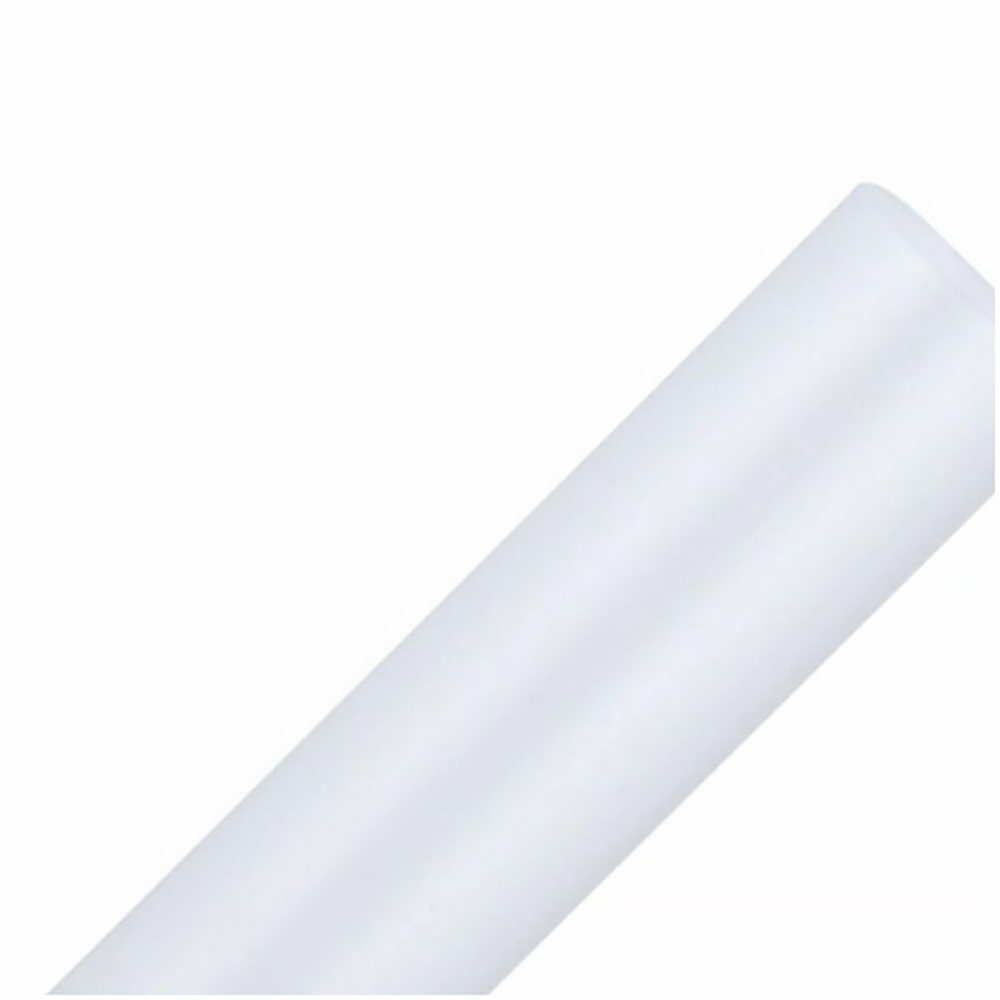

  • 1/4" W x 48" L/Clear (7010297796)
  • 1/2" W x 48" L/Clear (7010351702)
