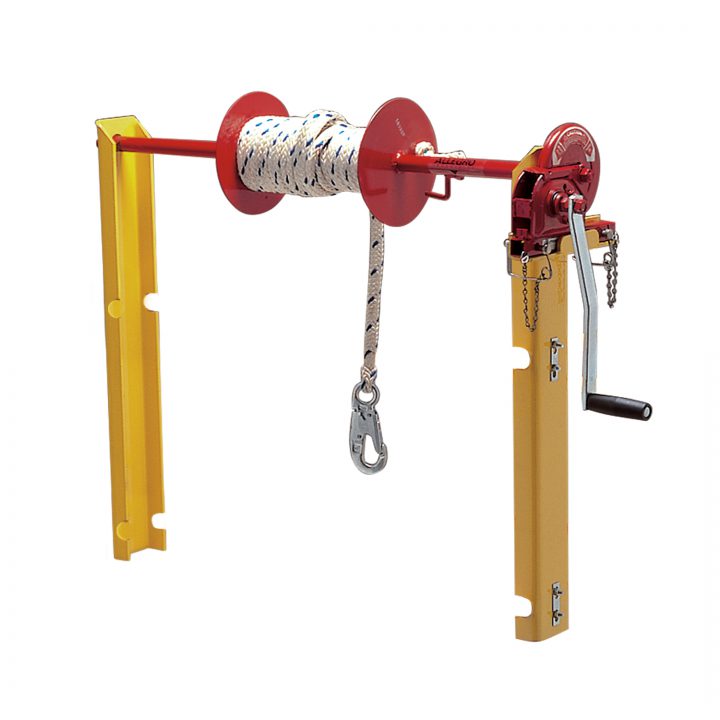

Allegro Industries Guard Rail Winch

The Allegro Industries Guard Rail Winch is made for raising and lowering equipment into confined spaces and can be impossible without this durable winch. Even with a 300 lb. capacity, it is lightweight and portable, allowing easy mounting on guard rails. The side pieces are constructed of high-tensile, heavy-gauge aluminum with a durable yellow finish that resists weather and wear. The winch bar is constructed of rugged high tensile steel tubing with a 3″ drum for fast recovery. Two independent ratchet systems, and a double-disc automatic brake offer load control and security. The 1/2″ x 35′ Nylon braided rope is strong and durable. Guard rail not included. Please click here for the Allegro Manhole Guard Rail.

This guardrail winch is intended for raising and lowering equipment into confined spaces. NOT for use as a personal retrieval device.

Features:

• 300 lbs. (136.07 kg) workload limit
• 3:1 safety factor
• 3” (7.6 cm) drum center
• 1” (2.5 cm) diameter center pipe 36” (91.4 cm) in length
• Two 7” (17.7 cm) discs (11” (27.9 cm) apart) to hold the rope in place
• ½” (1.27 cm) holes (2” (5.0 cm) apart) accommodate 3/8” x 2¼” (0.95 cm x 5.7 cm) Loxall pins

Crank:

• Gear covers
• Bronze bushings
• Two independent ratchet systems for additional load security
• Double disc automatic load lock braking system to assure positive load control

Snap Hook:

• 9/16” (1.42 cm) Safety snap design

Rope:

• Length: 35’ (10.66 m)
• Material: ½” (1.27 cm) Dura-Plex braided

Leg Extensions:

• High-quality steel
• Painted Yellow

Dimensions:

• Width: 43” (109.2 cm)
• Depth: 9-1/4” (23.5 cm)
• Height: 32” (81.3 cm)
