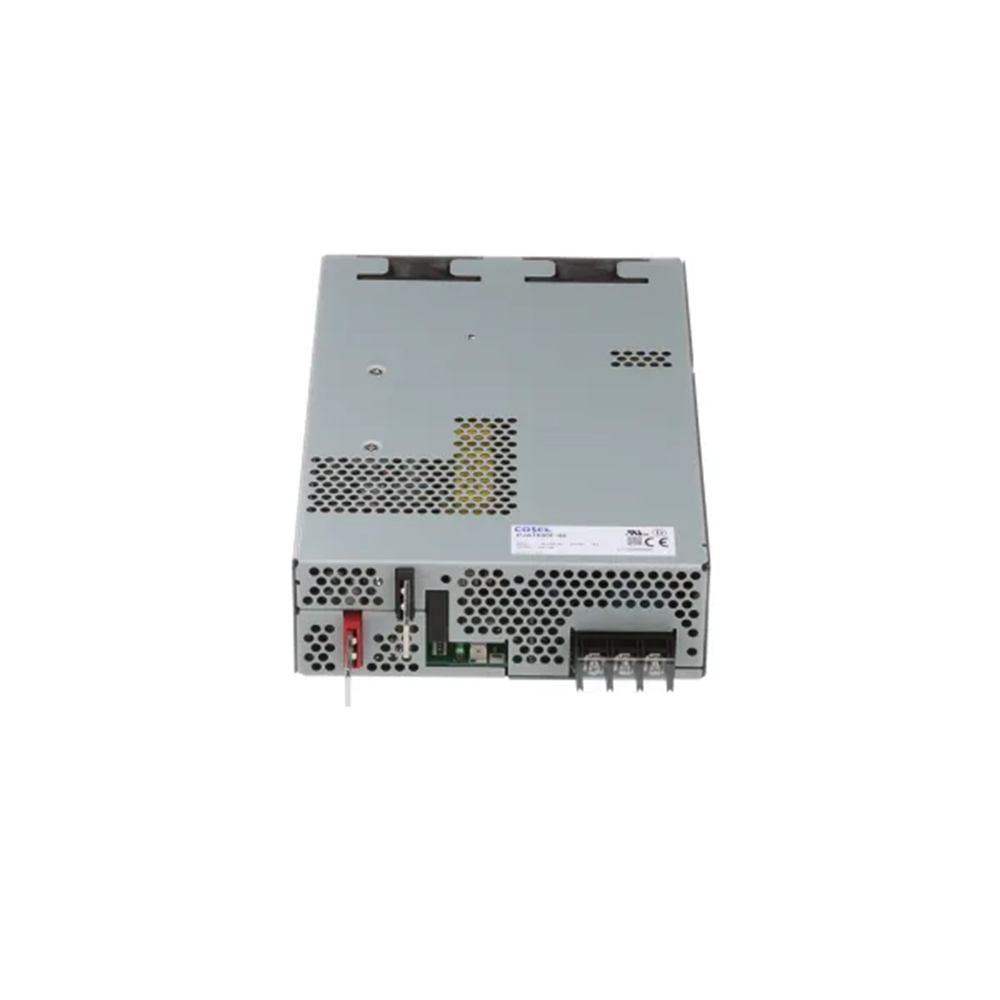

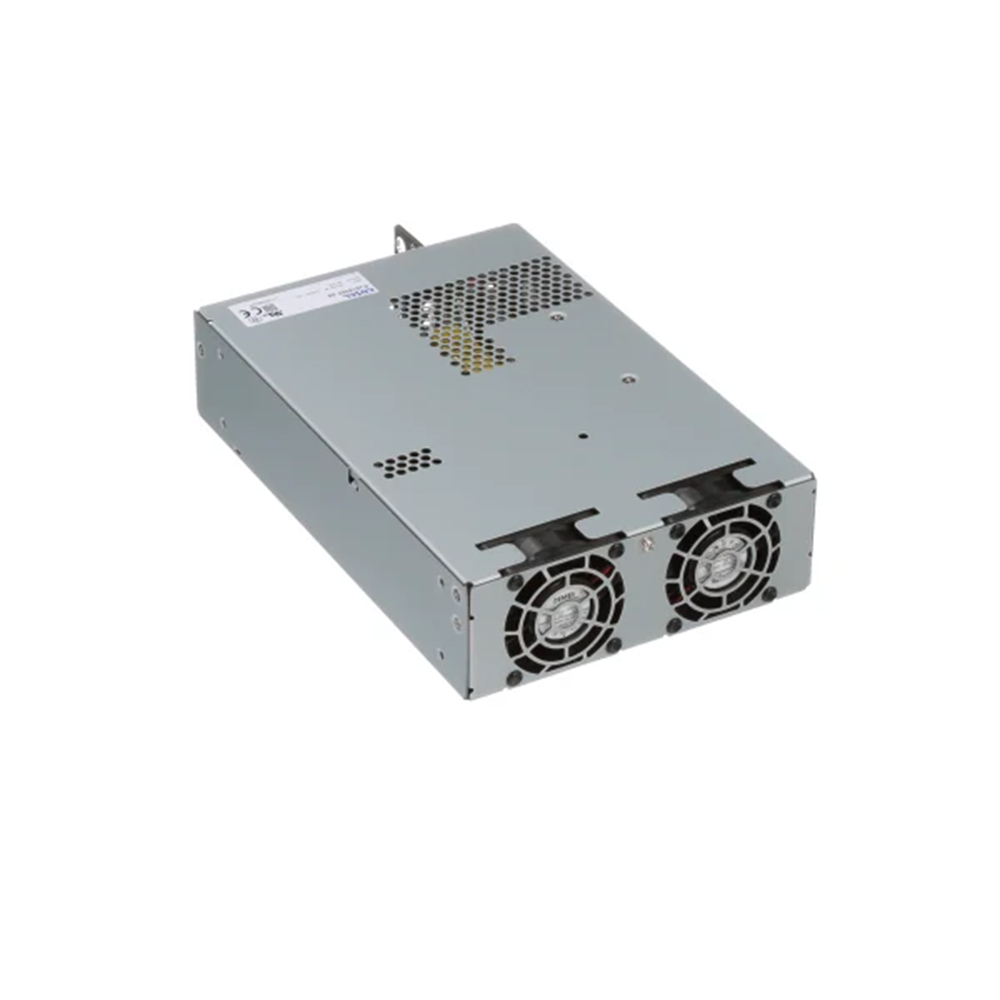

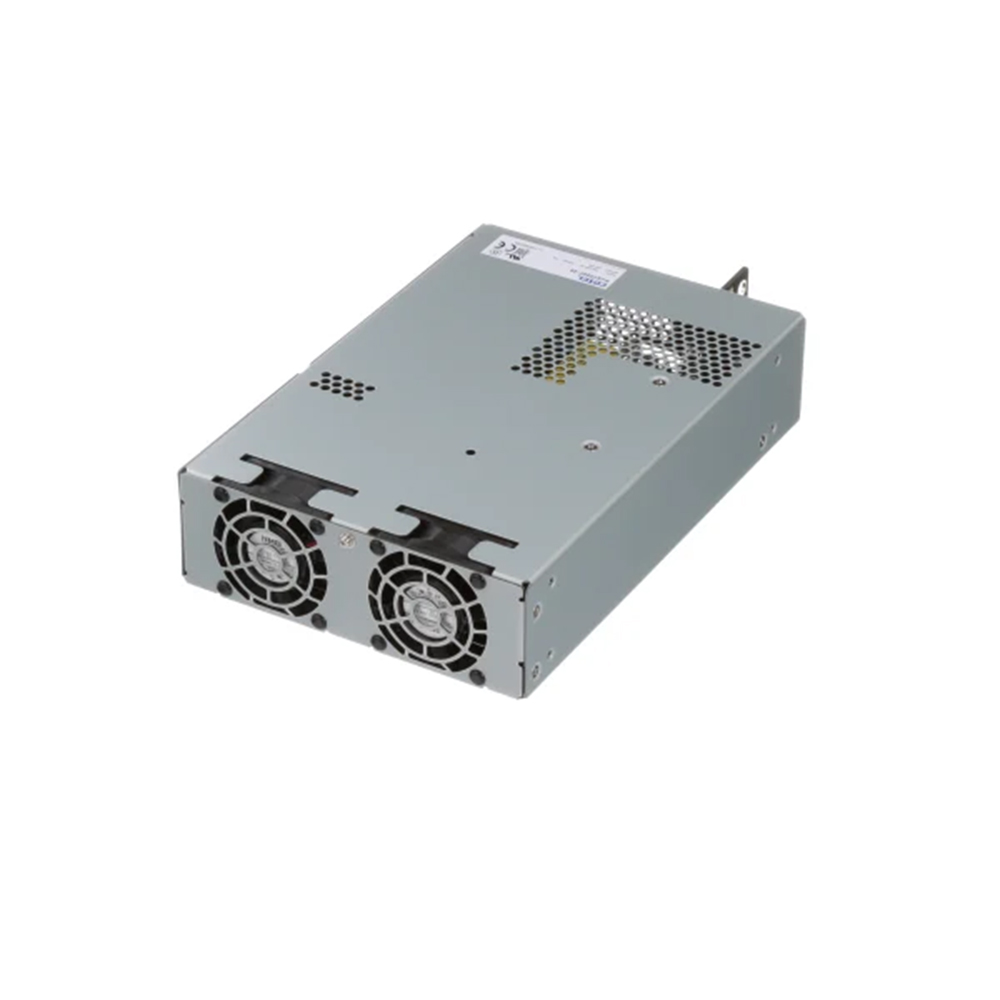

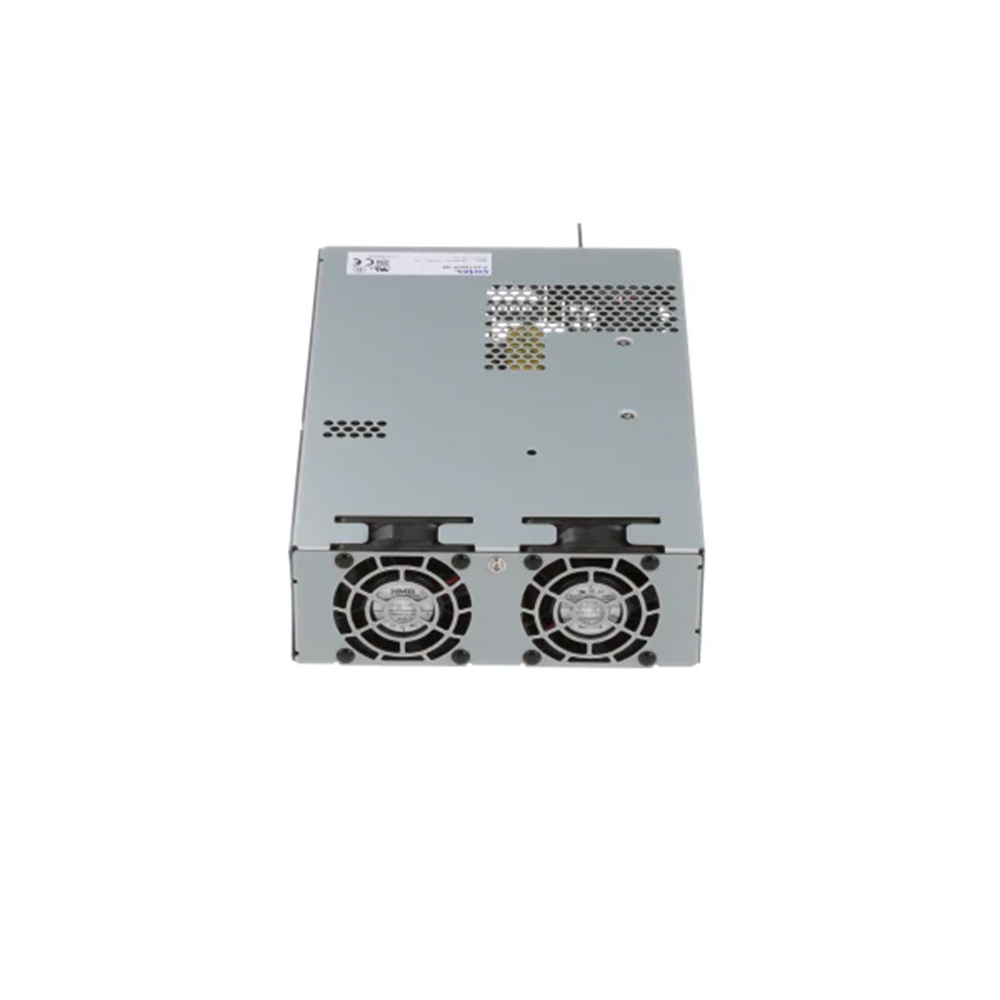

Allied Electronics Enclosed Type AC/DC Power Supply

The Allied Electronics Enclosed Type AC/DC Power Supply is an economical enclosed type AC-DC power supply with enhanced reliability. The PJA series accepts a wide input range of 85-264VAC and complies with the SEMI F47 standard. They can work in a wide ambient operating temperature range of -20C up to +70C, and have rated output voltage variations of 5V (for 600W), 12V, 15V, 24V, 36V, and 48V, which are suitable for most industrial applications. In comparison with our previous cost-effective PLA series, PJA series has further improved its reliability. PJA150F are built with double-sided PCB so the soldering reliability is greatly enhanced. The Power Supply has a low-profile design (1U size), and screw-hold type terminal block. The efficiency of PJA600F is 88% max (4% higher than our previous PBA series).

Features:

• Cost-effective
• Longer life (see Instruction Manual)
• Low profile (meets 2U height = 61 mm or 2.40 inches)
• Wide operating temperature range (-20 to +70 see instruction manual)
• Stop or Slow fan speed at no load

Specifications:

• Configuration: Enclosed
• Family Name: PJA Series
• Input Voltage: 100 VAC ; 110 VAC ; 115 VAC ; 120 VAC ; 127 VAC ; 190 VAC ; 200 VAC ; 220 VAC ; 230 VAC ; 240 VAC
• Input Voltage Range: 115-264 VAC
• Number of Outputs: 1
• Output Current: 32 A
• Output Power: 150 W
• Output Voltage: 48 VDC
• Series: PJA15000F Series
• Type: External
