Home > Anritsu Calibration Kit, Type 7/16 (f), DC to 6 GHz, Female

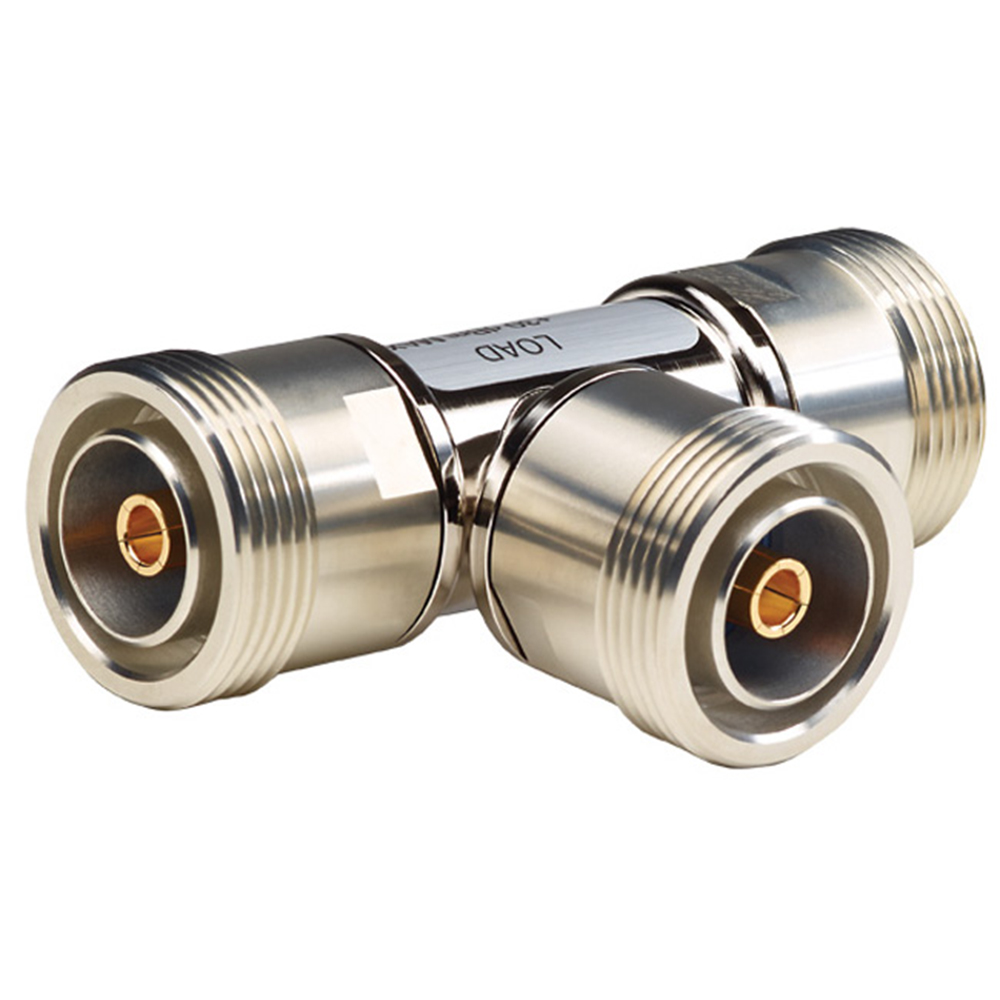

Anritsu Calibration Kit, Type 7/16 (f), DC to 6 GHz, Female

ASU-2000-1619-R
On The Way Get It Between Feb 10 and Feb 22
FREE SHIPPING OVER $75!

$675.00


Anritsu Calibration Kit, Type 7/16 (f), DC to 6 GHz, Female

Specifications:

OPEN Specification
Length 26.2 mm
C0 (1E-15) F 185
C1 (1E-27) F/Hz 23
C2 (1E-36) F/Hz² -184
C3 (1E-45) F/Hz³ 104



Short Specification
Length 29.0 mm
L0 (1E-12) F 0.0
L1 (1E-24) F/Hz 0.0
L2 (1E-33) F/Hz² 0.0
L3 (1E-42) F/Hz³ 0.0



Load Specification
DC Resistance 50 Ω± 0.5 Ω
Return Loss (DC to 4 GHz) ≥ 35 dB
Return Loss (4 GHz to 6 GHz) ≥ 32 dB
Max Power 1.0 W



The Anritsu 2000-1619-R Calibration Kit comes in 7/16 female connection and measures specifications from DC to 6 GHz. The calibration device is manufactured to Anritsu's extremely high standard which makes your life easier to confirm the job is done right. This high precision component when handled with proper care gives you the most accurate readings. With a wide operating temperature, this device is ready to test your work when you are.

ASU-2000-1619-R
Length: Open: 26.2 mm
Short: 29.0 mm
Manufacturer: Anritsu
Type: 7/16 | Female
