Anritsu Field Master MS2070A Handheld RF Spectrum Analyzer

The Anritsu Field Master MS2070A Handheld RF Spectrum Analyzer with a frequency range of 9 kHz to 3 GHz. Anritsu’s Field Master MS2070A 3 GHz RF spectrum analyzer covers the common HF, VHF, and UHF frequency bands. Providing the performance you expect from Anritsu with the practicality required for use in the field. Developed with 20 years experience of in designing RF test instruments for field technicians, the Field Master MS2070A integrates all the essential features of a modern spectrum analyzer with traceable and warrantied specifications.

Applications include a base station and transmitter testing in the field, through direct connection or over-the-air (OTA), finding sources of interference (including from spurious, harmonics, PIM, and industrial machinery), rooftop PIM hunting, EMI pre-compliance testing, and 75-ohm cable TV testing. Field Master MS2070A is also ideal for general-purpose spectrum analysis in the lab environment where it's built-in kickstand and small footprint make it the perfect complement to fully featured benchtop instruments which can be cumbersome to share and move.

Smart measurements provide built-in routines to simplify the most common transmitter measurements including; channel power, adjacent channel power, and occupied bandwidth.

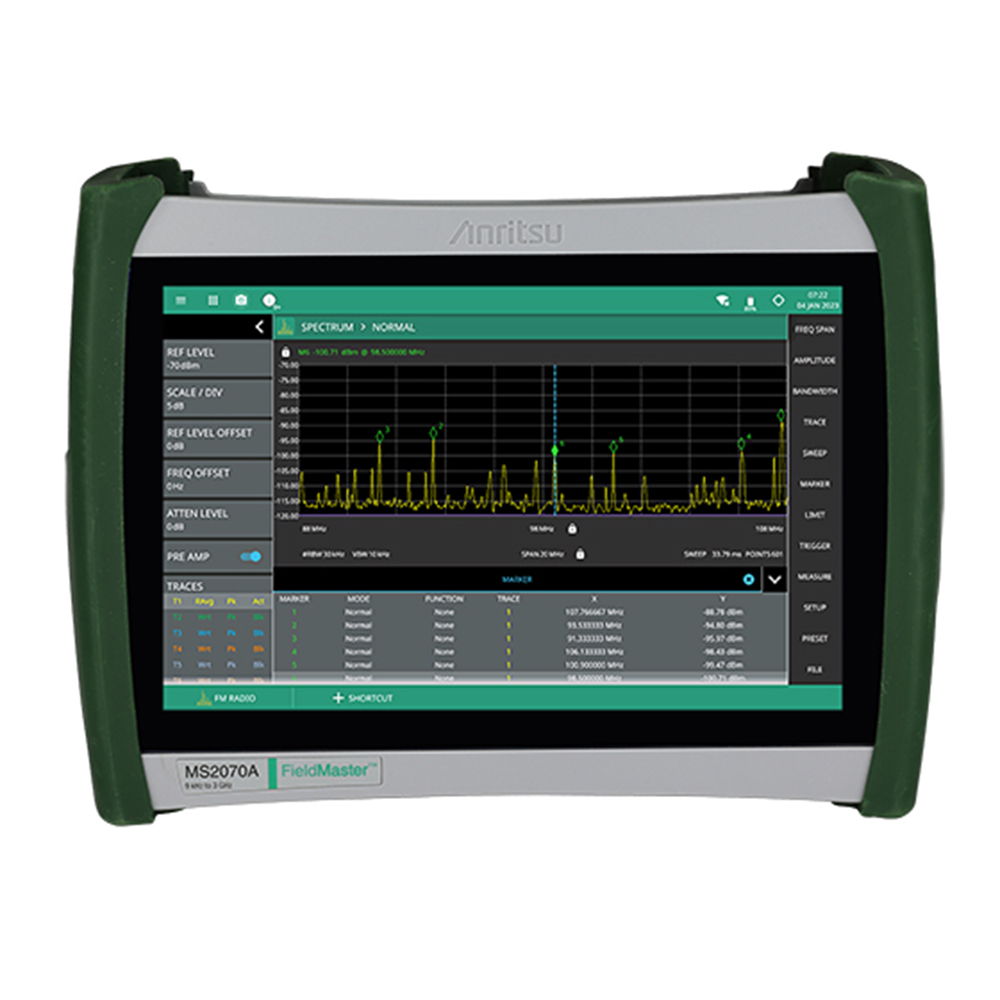

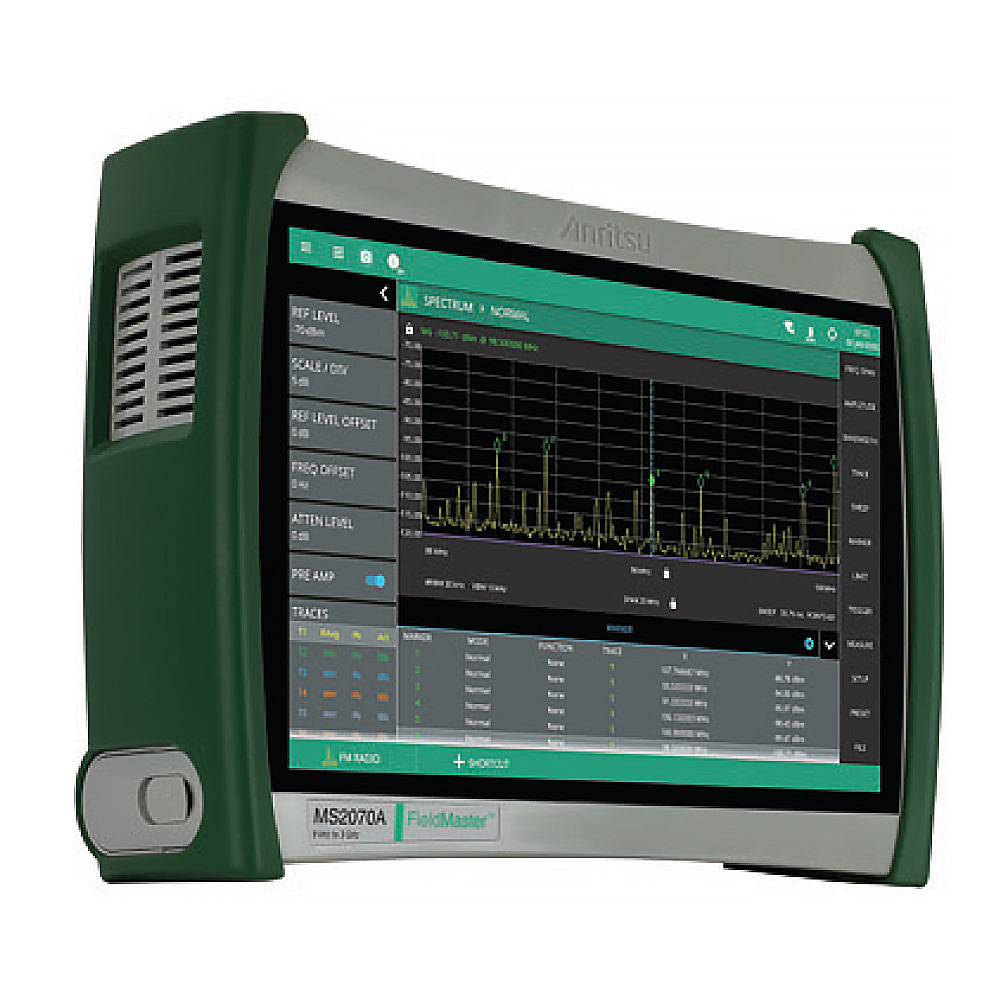

Results and instrument settings are displayed on a large 10-inch high-resolution, multi-touch screen. The soft case provides an IP52 rating to protect from dust and rain while the screen exceeds the IK08 specification protecting against the knocks and drops inevitably experienced in the field. 5 Watts maximum input power prevents accidental power overload damage which is the most common cause of field failures.

Field Master MS2070A delivers a compelling combination of performance with portability to make it the perfect choice for both field and bench applications.

Highlights:

• Spectrum Analysis from 9 kHz to 3 GHz: Full frequency coverage of HF, VHF, and UHF frequency bands
• Spectrogram: Capture and record intermittent and drifting signals
• Spectrum Record and Playback: Record traces and playback at a slow speed to track all spectrum activity
• AM/FM Audio Demodulation: To identify signals of interest
• Smart Measurements: Includes channel power, occupied bandwidth, adjacent channel power, spectral emissions, and field strength measurements
• Interference Hunting: Directional antenna and eCompass handle
• USB Power Sensor Support: Precision power measurements of transmitters
• Traces and Markers: Up to 6 traces and 12 markers
• Zero Span: Pulse measurements
• Standard Detectors: Peak, RMS/Avg, Negative, Sample, Normal
• Quasi-Peak Detector: CISPR-compliant interference measurements
• Battery Life: 3.5 hours with standard battery, typically >6 hours with accessory power pack
• 10-Inch Multi-Touch Display: Provides quick and easy configuration and results presentation
• GNSS (Option): GPS, Galileo, GLONASS, BeiDou

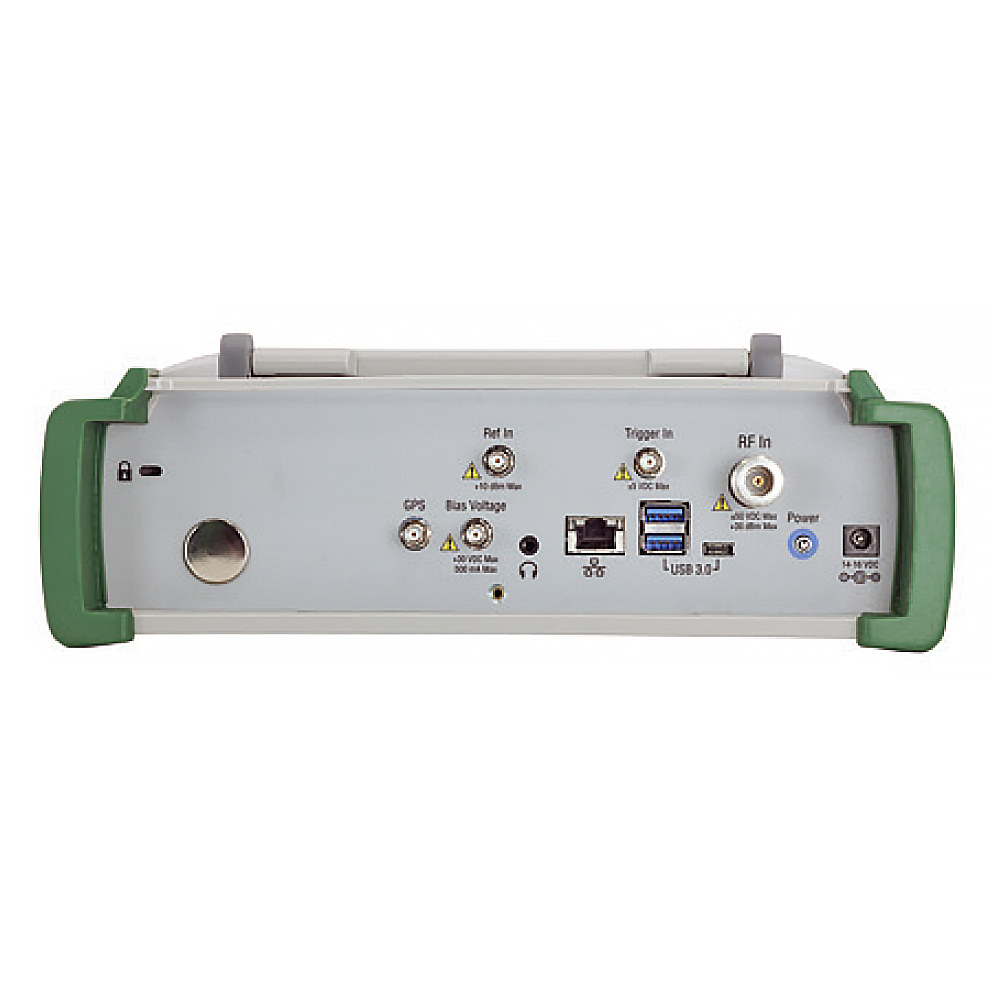

• Connectivity: Ethernet, USBTMC (Wi-Fi Option)

Features:

• Display: 10.1 in, 1280 x 800 Color Capacitive Touchscreen
• Traces: 6 (with Trace Record and Play Back)
• Detectors: Avg/RMS, Peak, Negative, Sample, Normal
• Smart Measurements: Channel Power, OBW, ACP, AJCP, SEM
• Markers: 12 Markers Assignable to Any Trace
• Limit Lines: Complex Limit Lines with Pass/Fail
• Connectivity: Ethernet, USBTMC
• Wi-Fi Connectivity Option: 802.11b/a/g/n/ac
• GNSS: Option GPS, GLONASS, Galileo, BeiDou
• Audio Demod AM/FM
• Battery Life: 3 Hours with Internal, 5 Hours with Accessory Power Pack
• Size: 290 mm x 212 mm x 96 mm, (11.4 in x 8.3 in x 3.7 in)
• Weight: 3.8 kg (8.39 lb)

Specifications:

• Sweep Speed: 32 GHz/s
• Phase Noise: -97 dBc/Hz Typical @ 100 kHz Offset
• DANL:
  • Pre Amp Off -150 dBm Typical
  • Pre Amp On -167 dBm Typical (with preamp option)
• Maximum Input Signal: +30 dBm
• Dynamic Range: 105 dB Typical
• Input Damage Level: +37 dBm (5 Watts)
• Amplitude Accuracy: ±1 dB
• Resolution Bandwidth in Sweep Mode: 1 Hz to 3 MHz
• Resolution Bandwidth in Zero Span: 1 Hz to 5 MHz
• Frequency Accuracy:
  • Aging: ±1.0 x 10–6 per Year
  • Accuracy: ±2.8 x 10–7 (-10 °C ± 55°C) Plus Aging
