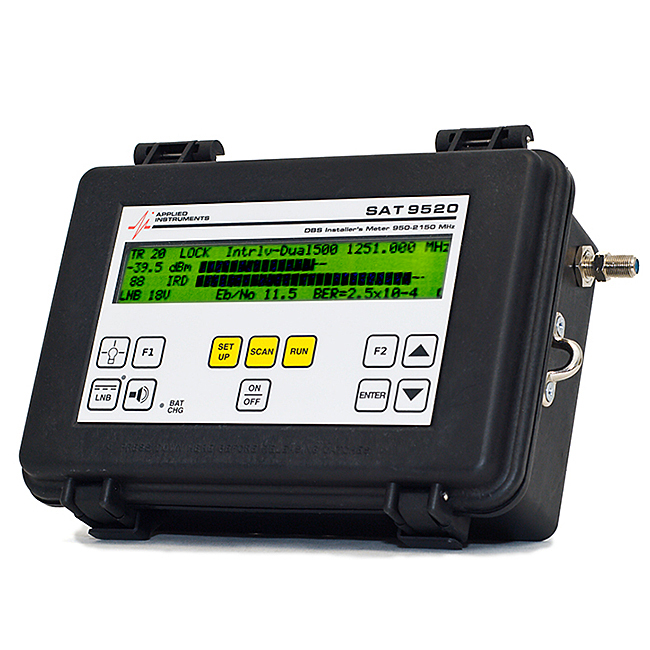

Applied Instruments SAT-9520 DVB-S Satellite Signal Level Meter

For Residential, Commercial and Multi-Dwelling Applications. The SAT 9520 satellite signal level meter measures the strength and quality of satellite signals. It is durably constructed and field-portable. The SAT 9520 is tunable to individual transponder frequencies. Its strong battery is able to power single and multiple LNBs and control multi-switches. The SAT 9520 identifies many of the DBS, Ku, and C-Band satellites. This simplifies the receive portion of two-way broadband and VSAT installations. The SAT 9520 is an excellent alternative to a laptop computer or a spectrum analyzer for locating the correct satellite, especially when used outside in the elements or on a rooftop. The SAT 9520 simultaneously displays signal strength, the familiar IRD signal quality value, bargraphs for signal peaking, carrier-to-noise for optimizing cross-polarization, and bit- error-rate for obtaining maxi- mum rain-fade margin. The SAT 9520 is ideal for satellite installations and troubleshooting L-Band network s.

Features:

• Durably constructed and field portable
• Identifies most satellites
• Powers single- and multi-LNB dishes
• Controls most multi-switches
• Tunable to individual transponder frequencies for standard (950-1450 MHz) and stacked (950-2050 MHz) systems
• Strong, fast-charge internal battery
• Audible tone for aligning dish
• Interfaces to computer for future software upgrades

Measurements:

• Signal level (dBm, dBmV, dBμV) with present and peak bargraphs
• Signal quality; familiar IRD equivalent value with present and peak bargraphs
• Carrier-to-noise ratio (C/N, Eb/No or Es/No)
• Bit-error-rate (BER); pre and post FEC
• Transponder scan with min/max summary
• LNB frequency deviation estimate (kHz or MHz)

Included Accessories:

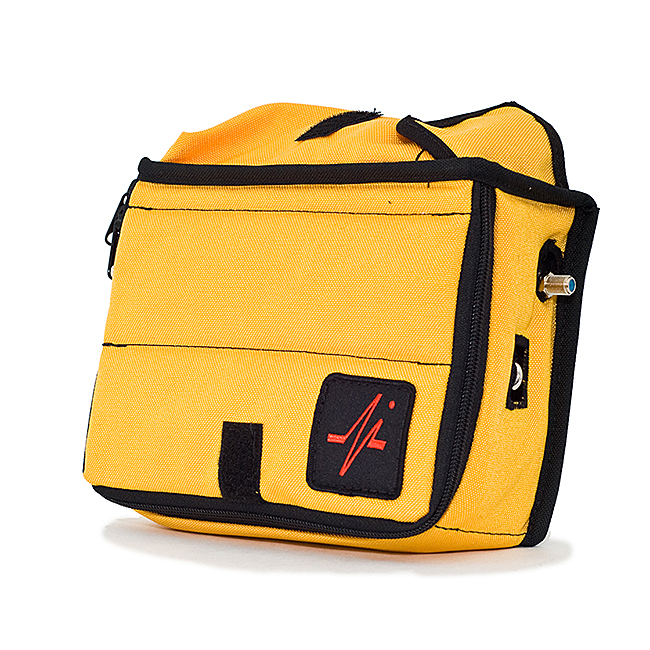

• Padded carrying case with shoulder strap • Transformer for charging battery
• Operator’s manual
• Spare “F” connector (field replaceable)
• Serial cable for interfacing to computer

Specifications:

• Frequency Range:   950 to 2150 MHz
• Tuning Resolution:   Individual Transponders
• Receiver Bandwidth:   25 MHz
• Signal Level Range:   -68 to –8 dBm (-20 to +40 dBmV) (+40 to +100 dBμV)
• Impedance:   75 Ohm
• LNB Power:   13/18 VDC current limited to 750 mA (22 kHz tone and DiSEqCTM capable for controlling multi-switches)
• Battery Life/Charge:   3.5 hours LNB power     (depending on LNB current draw)
• Battery:   Internal rechargeable, 1800 mAh
• Battery Charge Time:   Fast charges in 2 hours, trickle thereafter
• Pre-FEC BER Range:2.0 E-2 (1 in 50)   to 4.0 E-7 (1 in 2,500,000)
• Size/Weight:   8.5”W x 6.5”H x 3.3”D/4.5 lbs.
• Temperature Range:  O Degrees F  to 130 Degrees F (-170C to 550C)

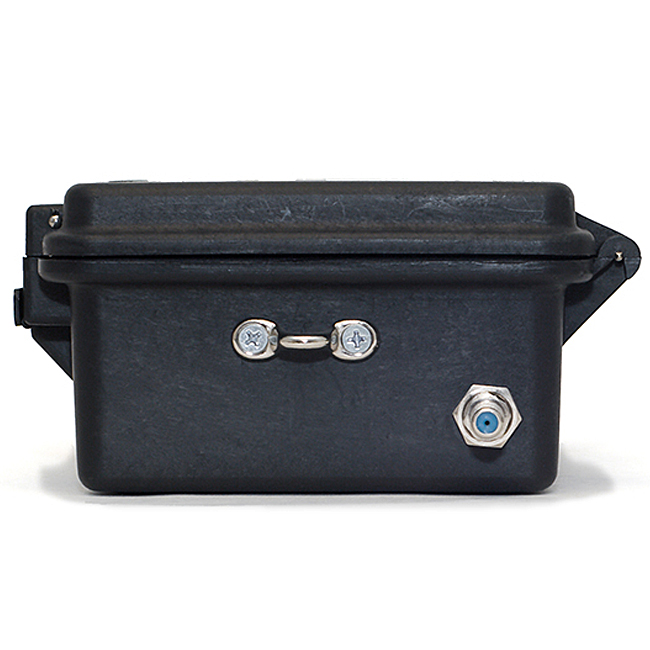

• Connector:   Type F female (field replaceable)
