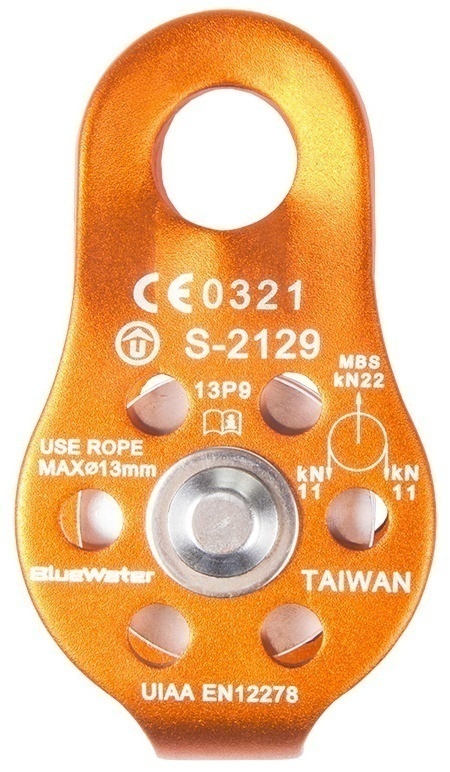

BlueWater Ropes Micro Pulley

This Micro Pulley by BlueWater Ropes is for use with rope between 8-13mm in diameter. The Micro Pulley's compact and lightweight design features a steel axle, anodized aluminum frame and aluminum sheave. This model is available in orange or black.



Specifications:

• Minor Diameter of Sheave: 0.825″
• Major Diameter of Sheave: 1.250″
• Overall Length: 3.200″
• Max Width: 1.400″
• MBS: 22 kN (11 kN load on each leg of system)
• For ropes between 8 and 13mm in diameter



Available Colors:

• Orange (610117)

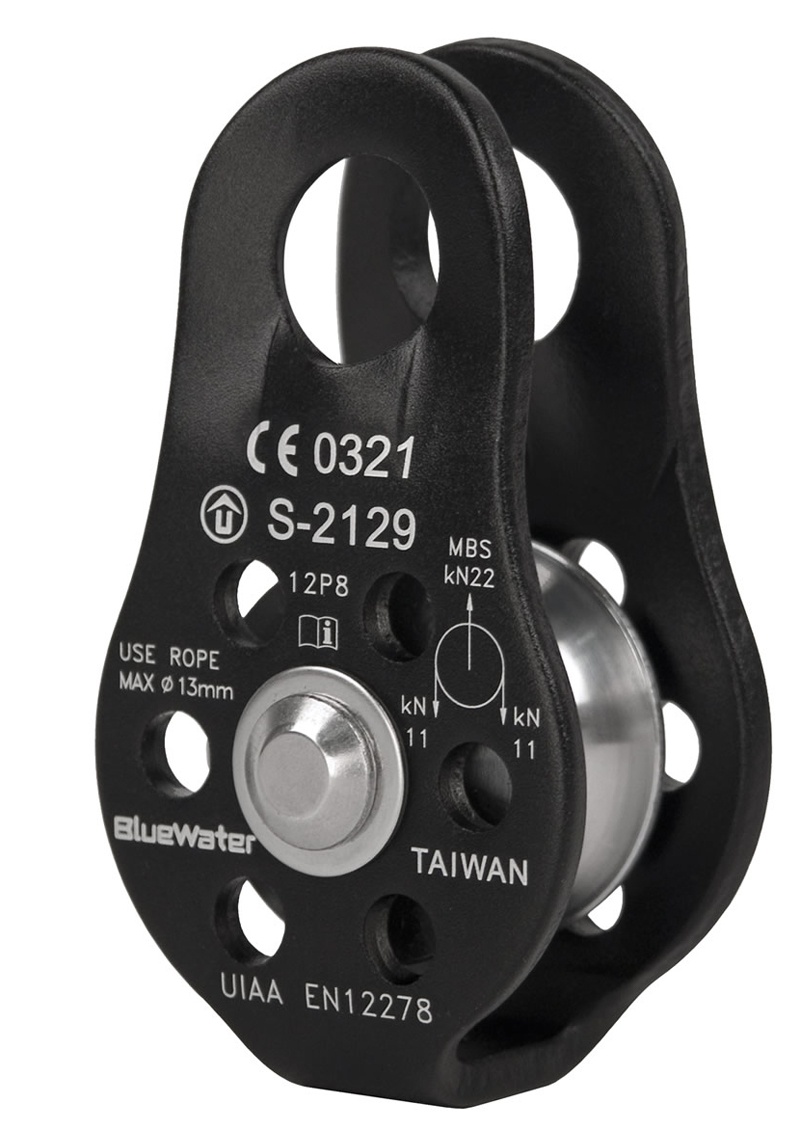

• Black (610116)
