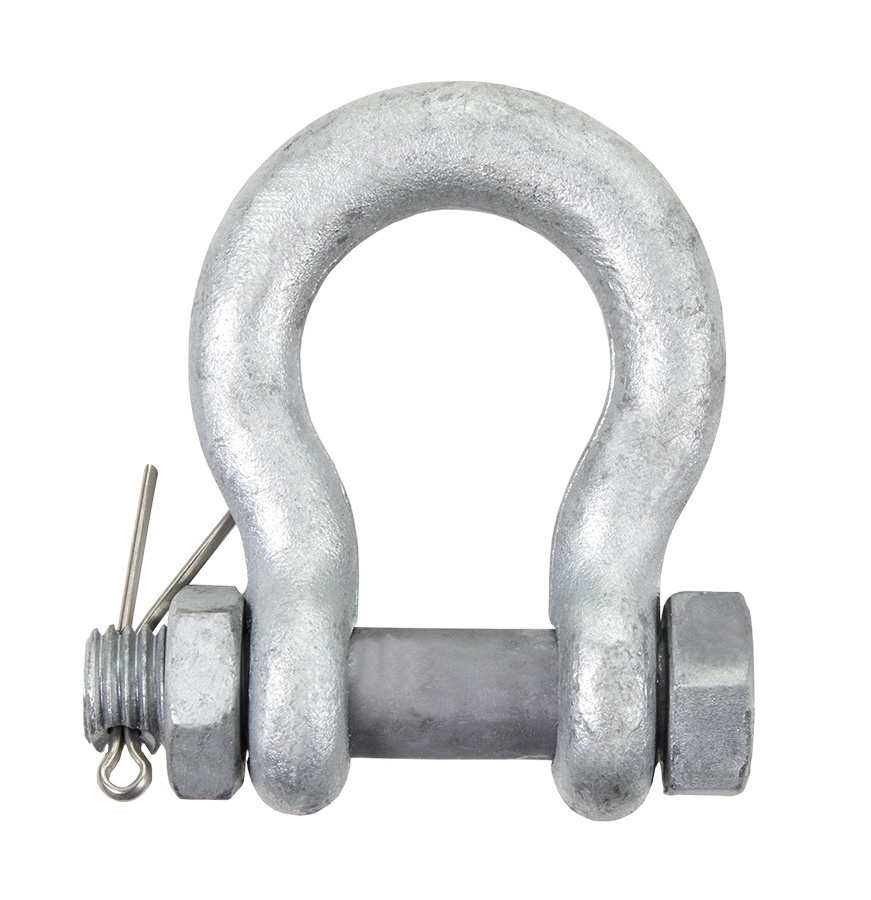

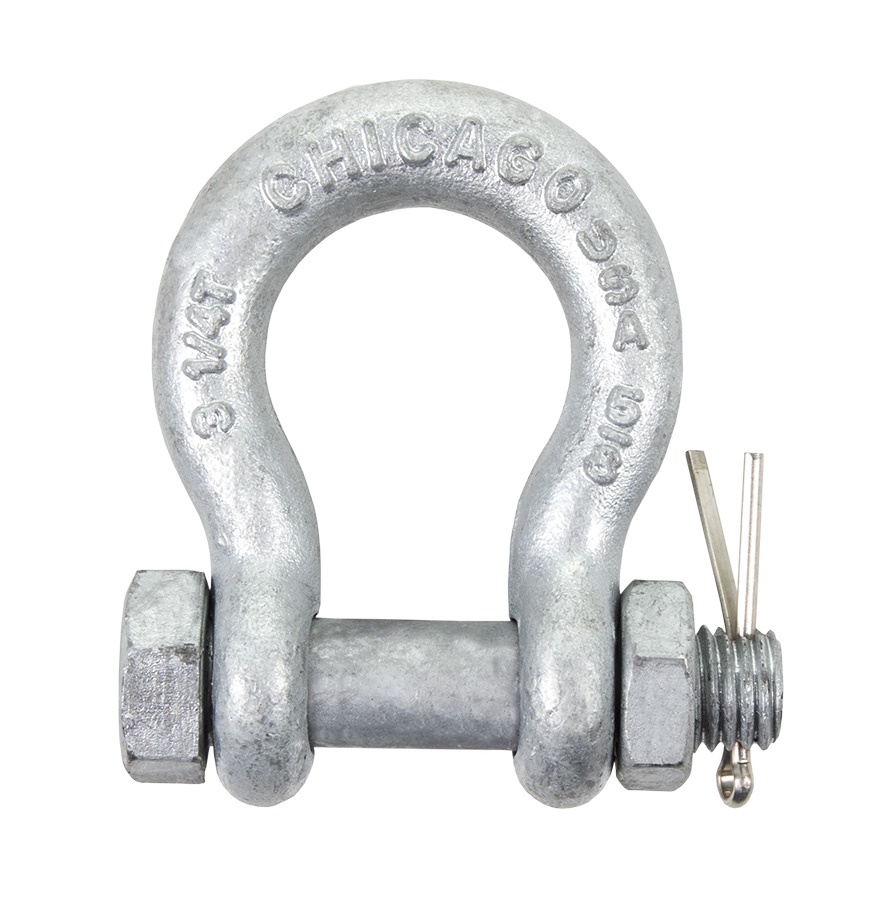

Chicago Hardware Galvanized Bolt Type Shackle

Chicago Hardware's Galvanized Bolt Type Shackles feature the size, working load limit, and trademark permanently marked on each. Each shackle is heat treated for durability, and loads are based on a safety factor of 6:1. These safety shackles meet the requirements of the Federal Specification RR-C-271D, Type IVA. Made in USA.



Available Sizes:

• Diameter: 3/8"
• Working Load Limit: 1 Ton
• Approx. weight: 0.33 lbs

• Diameter: 1/2"
• Working Load Limit: 2 Tons
• Approx. weight: 0.75 lbs

• Diameter: 5/8"
• Working Load Limit: 3.25 Tons
• Approx. weight: 1.5 lbs

•  Diameter: 1"
• Working Load Limit: 8.5 Tons
• Approx weight: 5.5 lbs
