Chicago Hardware Self-Colored Bolt Type Shackle

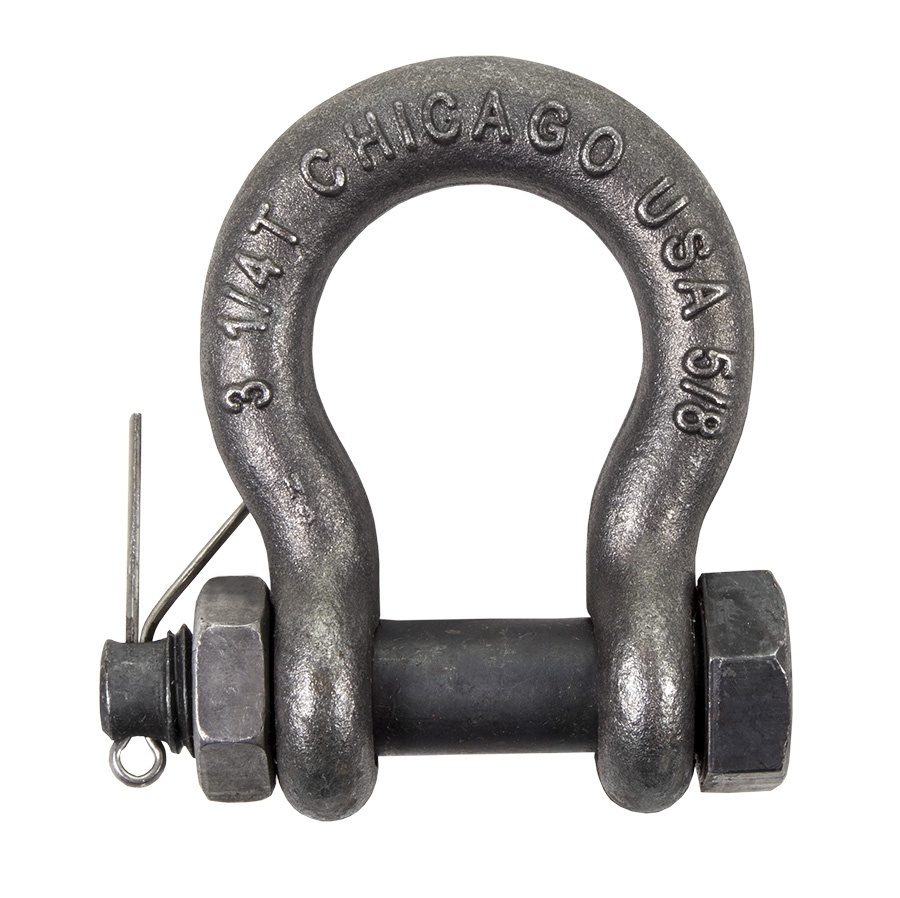

Chicago Hardware's Self-Colored Bolt Type Shackles feature the size, working load limit, and trademark permanently marked on each. Each shackle is heat treated for durability, and loads are based on a safety factor of 6:1. Shackles meet the requirements of the Federal Specification RR-C-271D, Type IVA. Made in USA.

 Available Sizes:

• Diameter: 3/8"
• Working Load Limit: 1 Ton
• Approx. weight: 0.33 lbs

• Diameter: 1/2"
• Working Load Limit: 2 Tons
• Approx. weight: 0.75 lbs

• Diameter: 5/8"
• Working Load Limit: 3.25 Tons
• Approx. weight: 1.5 lbs

• Diameter: 3/4"
• Working Load Limit: 4.75 Tons
• Approx. weight: 2.5 lbs

• Diameter: 1"
• Working Load Limit: 8.5 Tons
• Approx. weight: 5.5 lbs
