• Protocol: AISG 1.1   |   AISG 2.0

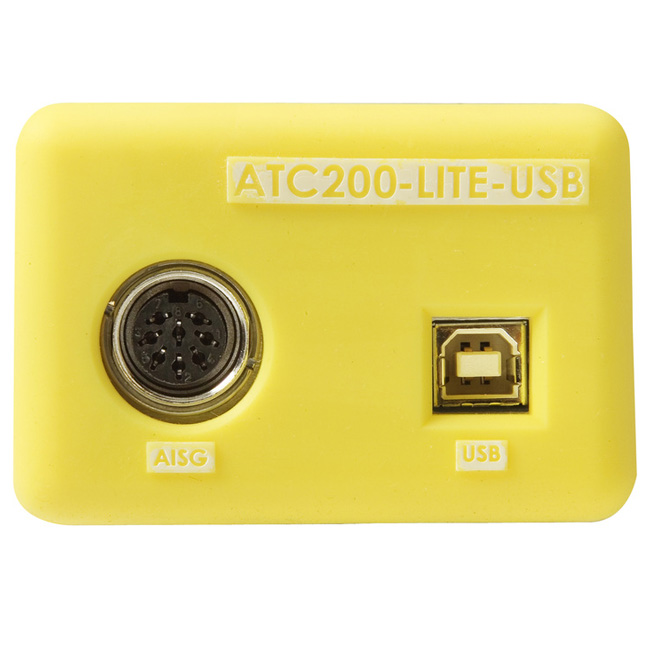

• AISG Output Connector: 8-pin DIN Female
  • single port
• Interface Protocol Signal: Data | dc
• Input Voltage: 110/240 Vac
• Output Current at Voltage, continuous: 3.0 A @ 24 V
• Output current at Voltage, maximum: 3.0 A @ 24 V
• Output Voltage, typical: 24 V

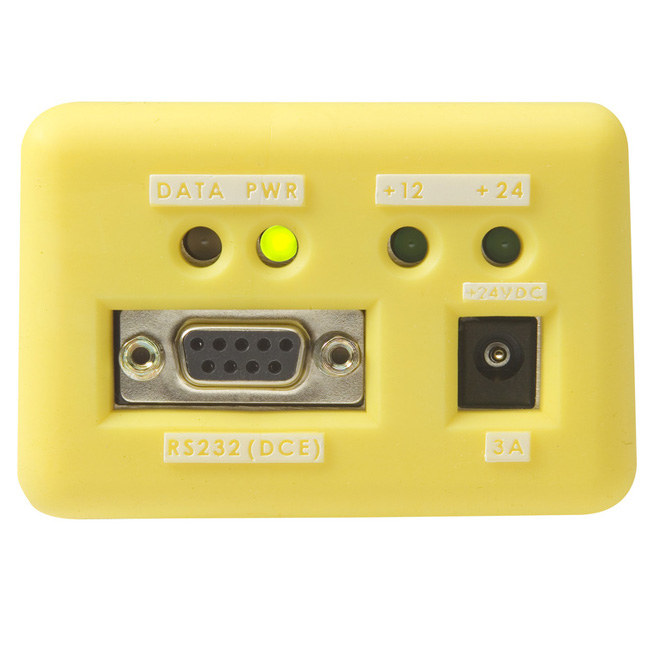

• Power Supply: dc Jack
• Electrical Safety Standard: CB   |   CE   |   IEC 60950-1
• Operating Temperature: 40 °C to +55 °C (-40 °F to +131 °F)
• Relative Humidity: up to 95%, non-condensing

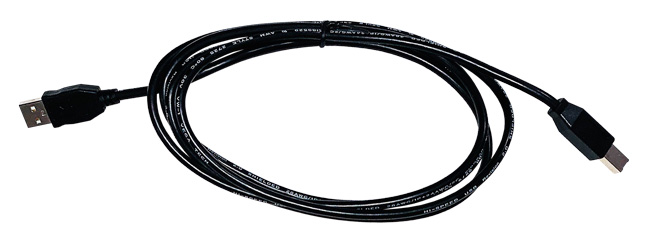

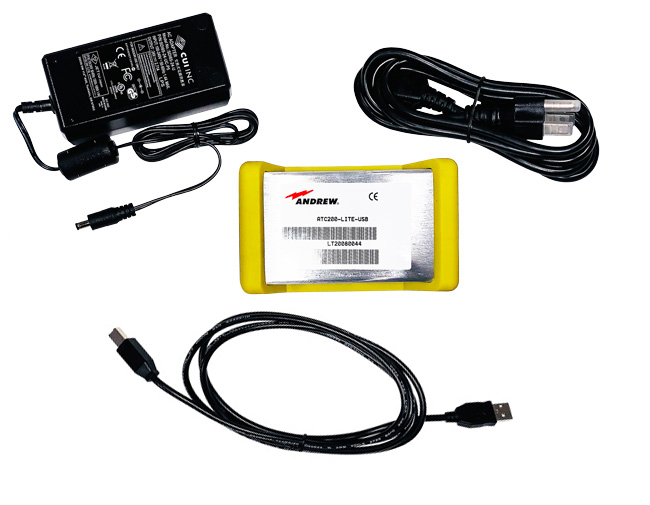

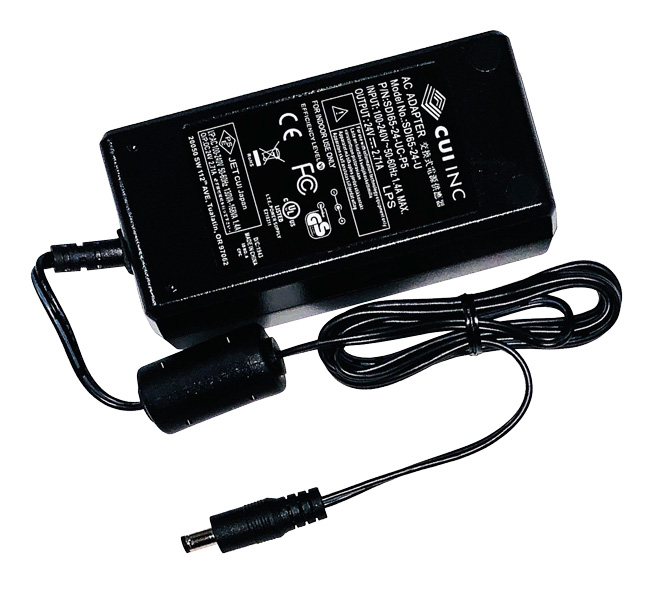

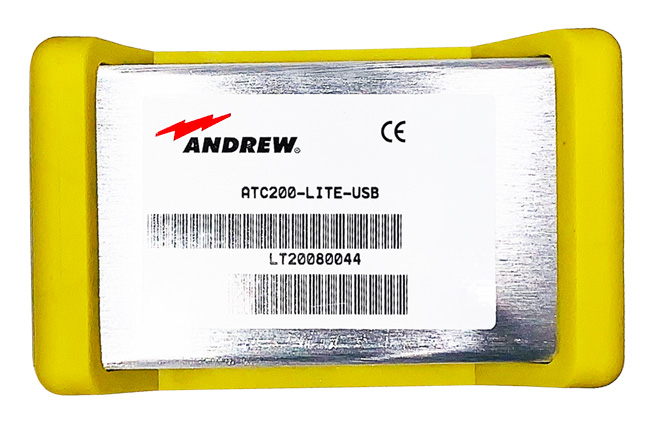

The Commscope Control Unit Interface is a portable controller that can be carried from site to site for RET antenna setup. This adapter kit includes a control unit, power supply, site configuration worksheet, US adapter, and USB cable. This kit supports up to 32 RET actuators that operate in a mix of AISG modes.
