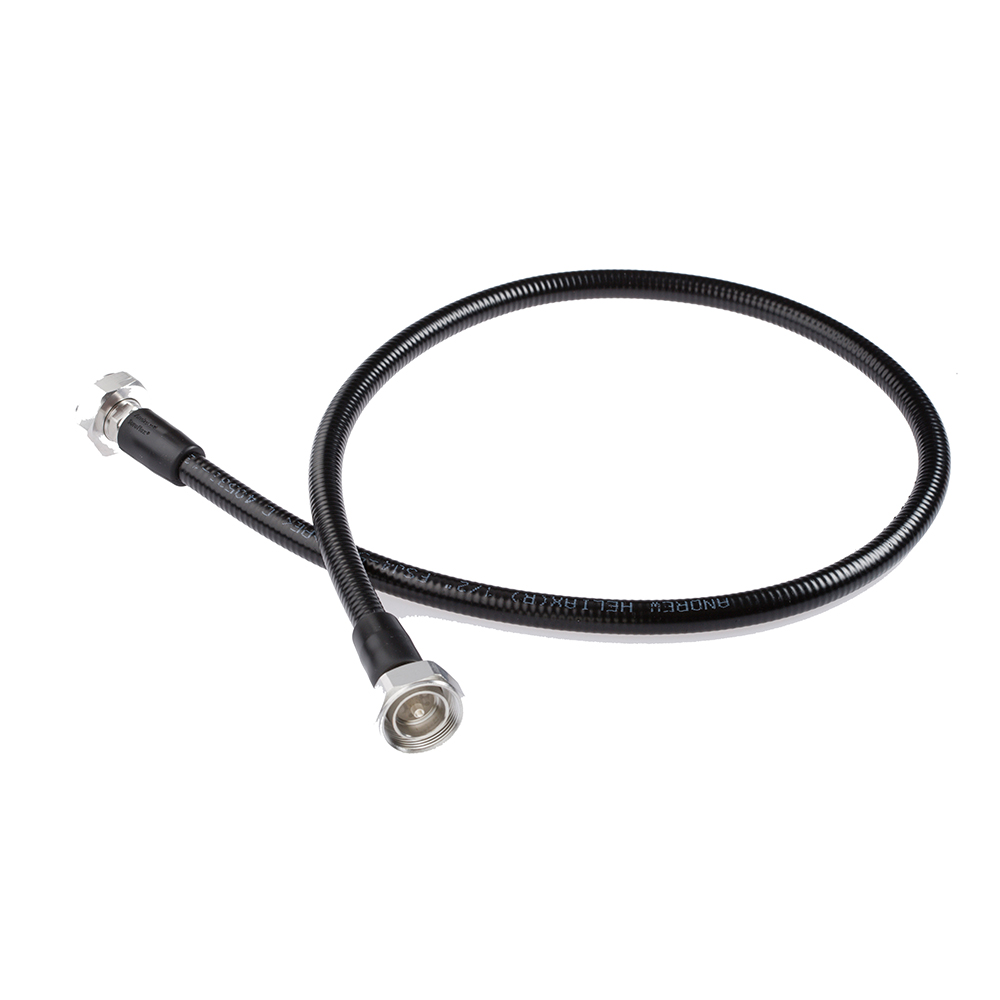

CommScope LDF4-50A SureFlex Jumper 7-16 DIN Male (6-Foot)

Classification:

• Product Type: SureFlex Premium, static PIM
• Product Brand: HELIAX | SureFlex
• Product Series: LDF4-50A

Specifications:

• Body Style, Connector A: Straight
• Body Style, Connector B: Straight
• Interface, Connector A: 7-16 DIN Male
• Interface, Connector B: 7-16 DIN Male
• Specification Sheet Revision Level: B
• Length: 1.829 m | 6.001 ft
• Cable Length Unit: Feet
• Nominal Size: 1/2 in
• 3rd Order IMD Static: -116 dBm
• 3rd Order IMD Static Test Method Two: +43 dBm carriers
• DTF, Connector A: -34 dB
• DTF, Connector B: -34 dB
• Frequency Band/VSWR/Return Loss (dB)
• 698–960 MHz/1.065/30.04
• 1700–2200 MHz/1.065/30.04
• 2200–2700 MHz/1.106/25.96
• Immersion Test Method: Meets IEC 60529:2001, IP68 in mated condition
• ISO 9001:2015: Designed, manufactured, and/or distributed under this quality management system
• ROHS: Compliant
• REACH-SVHC: Compliant as per SVHC revision on www.commscope.com/ProductCompliance
• UK-ROHS: Compliant
