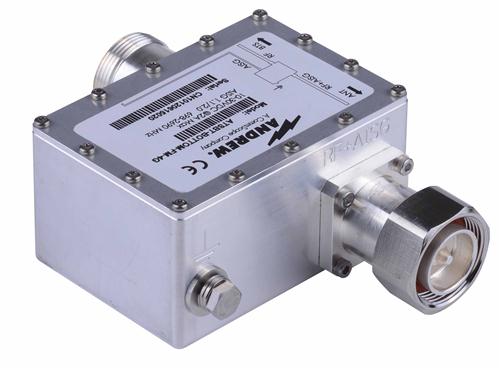

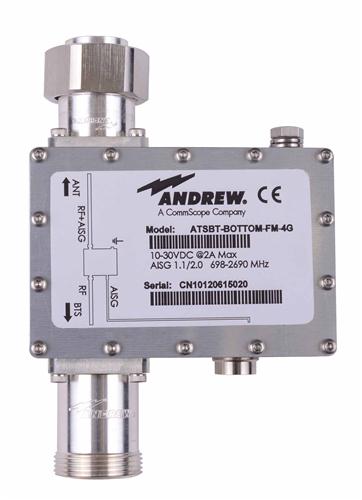

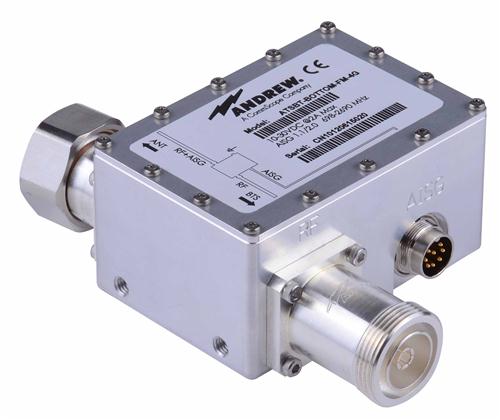

CommScope Teletilt Bottom Smart Bias Tee

• • Injects AISG power and control signals onto a coaxial cable line
• • l Reduces cable and site lease costs by eliminating the need for AISG home run cables
• • l AISG 1.1 and 2.0 compliant
• • l Operates at 10¬30 Vdc
• • l Weatherproof AISG connectors
• • l Intuitive schematics simplify and ensure proper installation
• • l Enhanced lightning protection plus grounding stud for additional surge protection
• • l 7¬16 DIN male connector (ANT)
• • l 7¬16 DIN female connector (BTS)

General Specifications

• • Smart Bias Tee Type 10–30 V Bottom
• • Brand Teletilt®
• • Operating Frequency Band 694 – 2690 MHz

Electrical Specifications

• • EU Certification CE
• • Protocol AISG 1.1 | AISG 2.0
• • Antenna Interface Signal AISG data | dc | RF
• • BTS Interface Signal dc Blocked | RF
• • Interface Protocol Signal Data | dc
• • Voltage Range 10–30 Vdc
• • VSWR | Return Loss 1.17:1 | 22 dB, typical
• • Power Consumption, maximum 0.6 W
• • RF Power, maximum 250 W @ 1850 MHz
• • 500 W @ 850 MHz
• • Impedance 50 ohm
• • Insertion Loss, typical 0.1 dB
• • 3rd Order IMD ¬158.0 dBc (relative to carrier)
• • 3rd Order IMD Test Method Two +43 dBm carriers
• • Electromagnetic Compatibility (EMC) CFR 47 Part 15, Subpart B, Class B | EN 55022, Class B | ICES-003 Issue 4
• • CAN/CSA¬CEI/IEC CISPR 22:02

Mechanical Specifications

• • Antenna Interface 7¬16 DIN Male
• • BTS Interface 7¬16 DIN Female
• • AISG Input Connector 8¬pin DIN Male
• • Color Silver
• • Grounding Lug Thread Size M8
• • Material Type Aluminum
• • Lightning Surge Capability 5 times @ ¬3 kA
• • 5 times @ 3 kA
• • Lightning Surge Capability Test Method IEC 61000¬4¬5, Level X
• • Lightning Surge Capability Waveform 1.2/50 voltage and 8/20 current combination waveform

Environmental Specifications

• • Ingress Protection Test Method IEC 60529:2001, IP66
• • Operating Temperature ¬40 °C to +70 °C (¬40 °F to +158 °F)

Dimensions

• • Width 94.0 mm | 3.7 in
• • Depth 50.0 mm | 2.0 in
• • Height 143.00 mm | 5.63 in
• • Net Weight 0.8 kg | 1.8 lb

Regulatory Compliance/Certifications

• • RoHS 2011/65/EU Compliant by Exemption
