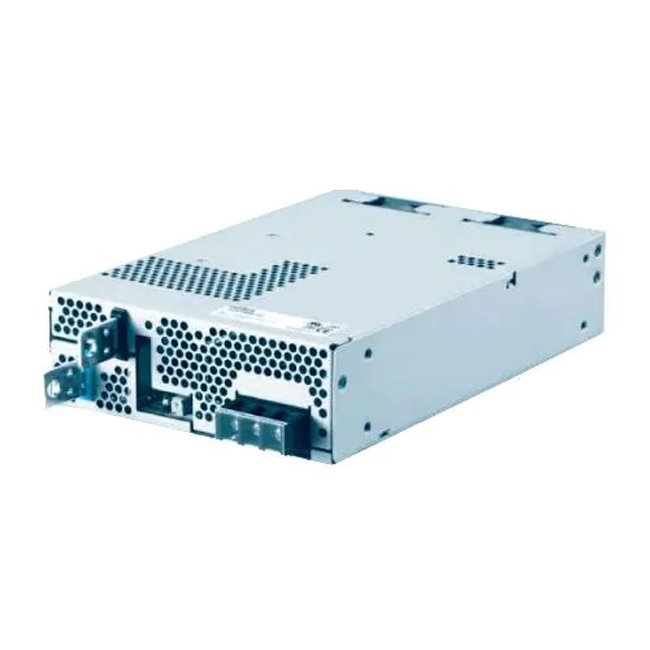

Cosel PJA1500F-48-R AC-DC Enclosed Power Supply

Features:

• Cost-effective
• Longer life (see Instruction Manual)
• Low profile (meets 2U height = 61 mm or 2.4 inches)
• Wide operating temperature range (-20 to +70 Refer to“Derating”)
• Stop or slow fan speed at no load
• See specification tab for full product description

PJA series is an economical enclosed type AC-DC power supply with enhanced reliability. The PJA1500F has been added to the PJA series lineup with a 48V output. The PJA series accepts a wide input range of 85-264VAC and complies with the SEMI F47 standard. They can work in a wide ambient operating temperature range of -20C up to +70C, and have rated output voltage variations of 5V (for 600W), 12V, 15V, 24V, 36V, and 48V, which are suitable for most industrial applications. In comparison with the previous cost-effective PLA series, PJA series has further improved its reliability. The PJA150F is built with a double-sided PCB so the soldering reliability is greatly enhanced.

Furthermore, PJA series has a better surge voltage tolerance and improved EMC compatibility. It comes with a five-year warranty.  You can also choose various options for PJA series to realize different functions such as coating, remote control, parallel operation. The PJA1500F has a high power function with an AUX output (5V, 12V, and 24V selectable) and the fan stops or runs at a low speed at no load. They are suitable for laser equipment and large industrial equipment. If you are looking for a high-reliability and cost-effective solution, PJA series is the most ideal power supply for your equipment
