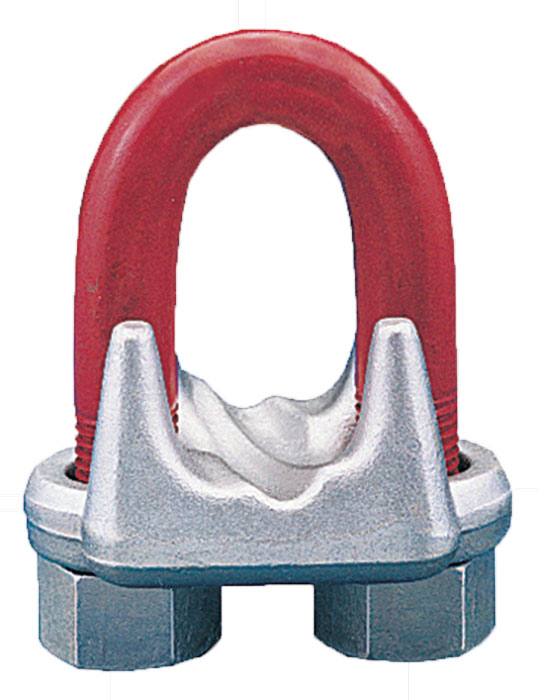

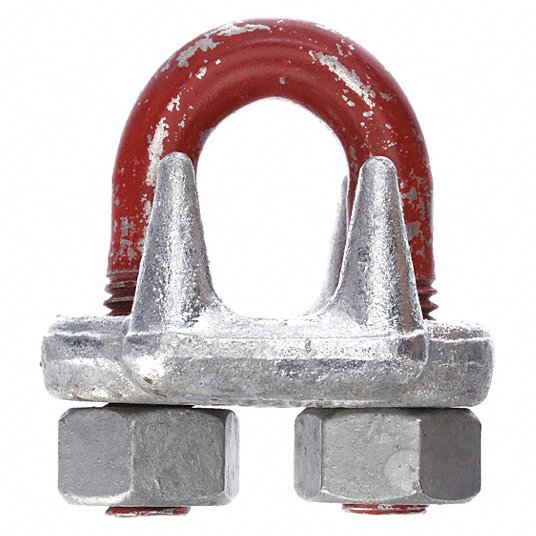

Crosby G450 U-Bolt Wire Clip
Features:
- Each base has a Product Identification Code (PIC) for material traceability, the name CROSBY or CG, and a size
- forged into it.
- Based on the catalog breaking strength of wire rope, Crosby wire rope clips have an efficiency rating of 80% for
- 1/8” - 7/8” sizes, and 90% for sizes 1” through 3-1/2”

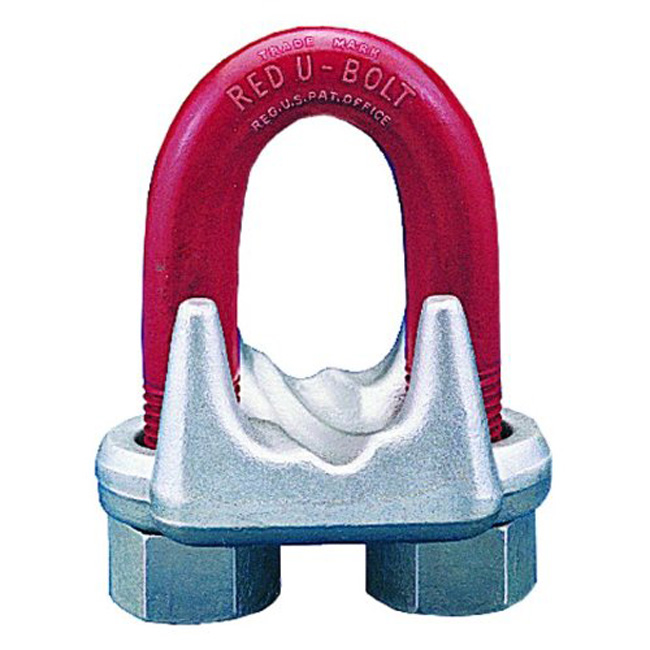

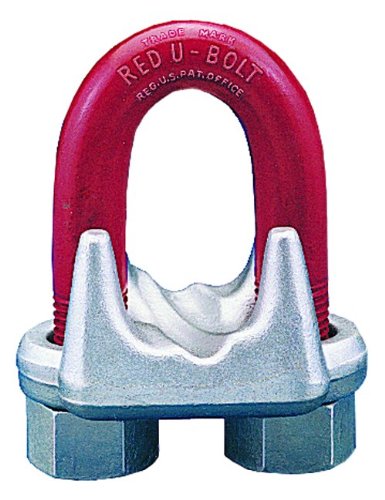

- Look for the Red-U-Bolt, your assurance of Genuine Crosby Clips.
- Entire Clip is Galvanized to resist corrosive and rusting action.
- All Clips are individually bagged or tagged with proper application instructions and warning information.
- Meets or exceeds all requirements of ASME B30.26 including identification, ductility, design factor, proof load, and temperature requirements. Importantly, these wire rope clips meet other critical performance requirements including fatigue life, impact properties, and material traceability, not addressed by ASME B30.26.
Crosby Clips, all sizes 1/4” and larger, meet the performance requirements of Federal Specification FF-C-450E TYPE 1 CLASS 1, except for those provisions required of the contractor.
