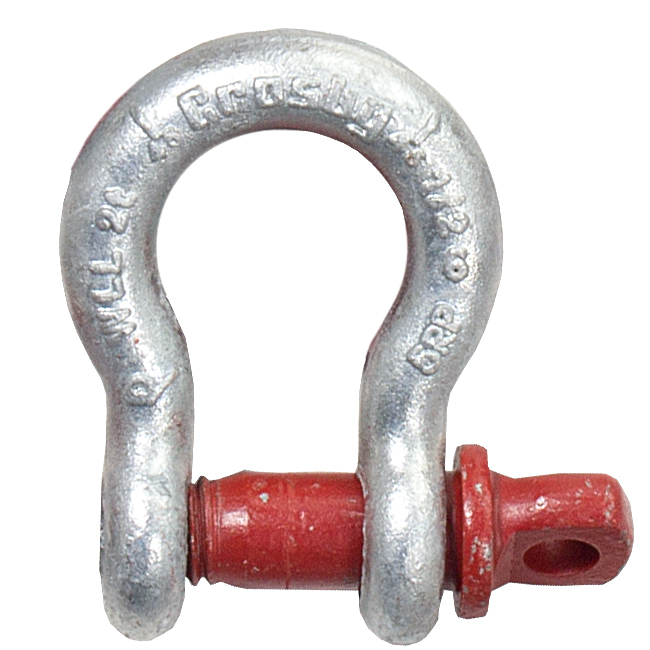

Crosby Galvanized Screw Pin Shackles

Crosby's Galvanized Screw Pin Shackles feature the working load limit and grade "6" permanently marked on each. These Crosby shackles are hot dip galvanized and quenched and tempered to provide durability for lifting applictions. Crosby shackles and clevises meet the requirements of the Federal Specification RR-C-271D, Type IVA.

Available Sizes:

• Diameter: 3/8"
• Working Load Limit: 1 Ton
• Approx. weight: 0.31 lbs

• Diameter: 1/2"
• Working Load Limit: 2 Tons
• Approx. weight: 0.72 lbs

• Diameter: 5/8"
• Working Load Limit: 3.25 Tons
• Approx. weight: 1.37 lbs

• Diameter: 3/4"
• Working Load Limit: 4.75 Tons
• Approx. weight: 2.35 lbs

• Diameter: 7/8"
• Working Load Limit: 6.5 Tons
• Approx. weight: 3.62 lbs

• Diameter: 1"
• Working Load Limit: 8.5 Tons
• Approx. weight: 5.03 lbs
