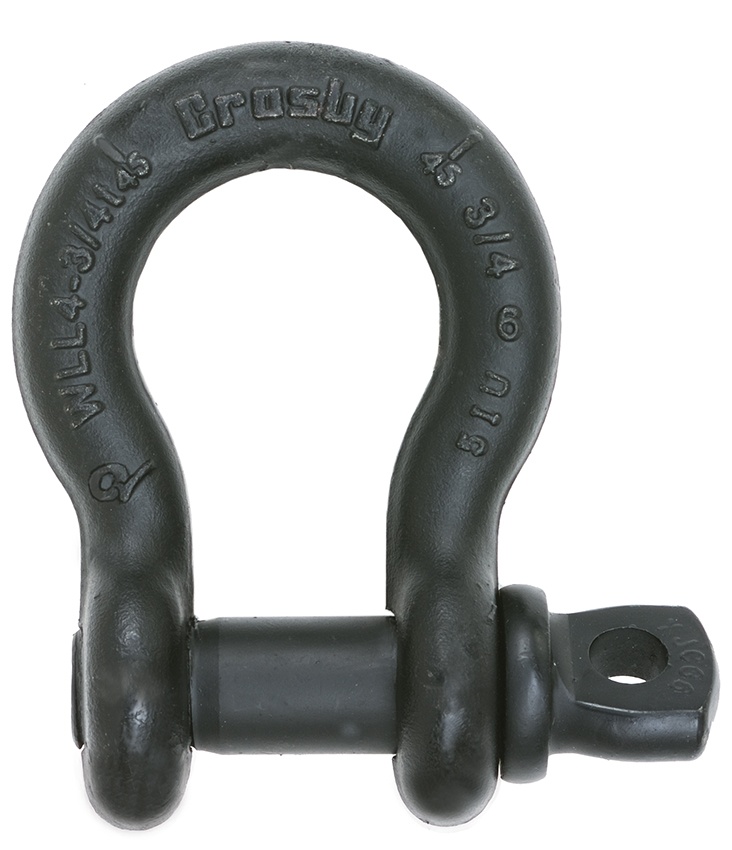

Crosby S-209T Theatrical Shackles

Crosby's Theatrical Shackles are ideal for stage rigging applications. Each shackle is forged and then painted flat black and finished with a powder coating. These shackles are load rated and meet all the requirements of the ASME B30.26.

Features:

• Sizes: 3/8” through 3/4”
• Capacities: 1 through 4-3/4 metric tonnes
• Forged - Quenched and Tempered, with alloy pins
• Working Load Limit permanently shown on every shackle
• Flat black baked on powder coat finish
• Fatigue Rated
• Industry leading 6 to 1 design factor
• Meets the performance requirements of EN 13889:2003
• Meets or exceeds all requirements of ASME B30.26 including identification, ductility, design factor, proof load and temperature requirements. Importantly, these shackles meet other critical performance requirements including fatigue life, impact properties and material traceability, not addressed by ASME B30.26.
• Screw pin anchor shackles meet the performance requirement of Federal Specification RR-C-271F Type A, Grade A, Class 2, except for those provisions required of the contractor

Crosby Theatrical S-209T Screw Pin Shackle Chart

Other Crosby Shackles:

• Self-Colored S-2130 Bolt Shackles
• Self-Colored S-209 Screw Pin Shackles
• Sling Saver Self-Colored S-253 Screw Pin Sling Shackles
• Galvanized G-2130 Bolt Shackles
• Galvanized G-209 Screw Pin Shackles
