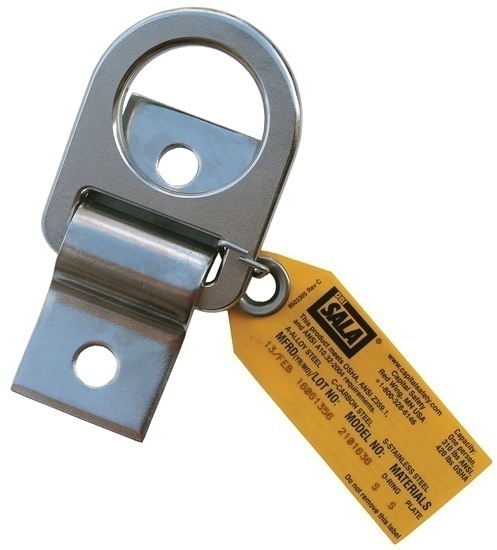

DBI Sala 304 Stainless Steel D-Ring Anchorage Plate

DBI Sala's D-Ring Anchorage Plate features a D-ring constructed from 304 stainless steel. This anchorage plate can be bolted or welded to the structure for use as a fall arrest anchor point. The high strength steel construction allows for a 5,000 lb (22 kN) strength and a 420 lb user capacity.



Features:

• Bolt or weld to structure for fall arrest anchor point
• Compact 1/4" x 2" x 4-1/2" (6 x 51 x 114 mm) 304 stainless steel plate
• Pre-drilled 1/2" (12.7mm) holes
• 304 Stainless steel D-ring for compatible tie-off point
• High strength steel construction
• Extremely rugged and corrosion resistant



Specifications:

• Attachment Type: Bolt/Weld
• Install Type: Permanent
• Model: 2101636
• Physical Dimensions: 0.25x2.00x4.50 (in)
• Physical Weight: 1.20 lbs
• Product Type: Anchors for Steel
• Capacity: 310 lbs (141 kg) ANSI / 420 lbs. (190 kg) OSHA
• Standards: OSHA 1910.66, OSHA 1926.502, Capital Safety Gen. Mfg. Req., ANSI A10.32, ANSI Z359.1
