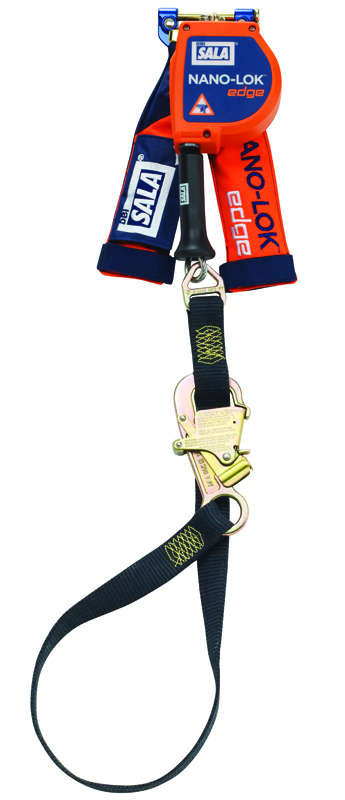

DBI Sala Nano-Lok Edge Tie-Back SRL

The DBI Sala Nano-Lok™ Edge Tie-Back SRL is a popular personal fall limiter with tie-back abilities making it completely flexible with any application.  This SRL is specifically designed for foot level tie-off and sharp edge applications often found in construction. It is ergonomically designed for ease-of-use and is ideal for direct connection to most harnesses. The extremely compact and lightweight design is virtually unnoticeable on your back, staying out of the worker’s way and making it ideal as a lanyard replacement. Whether your application requires single or twin leg configurations, mounting to an overhead anchor or for connection directly to harness, there are numerous models to choose from to suit almost any application. Nano-Lok™ locks quickly—stopping a fall within inches—providing more protection at low heights. In addition, tension is always kept on the lifeline, which reduces dragging, snapping and trip falls. Both features are key safety improvements.

Highlights:

• Designed for foot-level tie-off and sharp edge applications
• Specifically designed for tie-back use
• Built-in connector for single-leg SRL direct attachment to harness
• 9 ft. (2.7m) lifeline with 3/16" (5mm) galvanized steel cable lifeline
• Steel tie-back hook on end of lifeline
• Extremely compact, lightweight design
• Tough and impact resistant thermoplastic housing
• Swiveling anchorage loop
• Quick activating speed sensing brake systems
• Integrated backpack style energy absorber
• Wide variety of configurations available

Features:

Specifications:

• Capacity: 310 lbs. (141 kg)
• SRL/PFL Class: B
• Brand: DBI-SALA®
• Sub Brand: Nano-Lok™
• Size: 9 ft. (2.7 m)
• Velocity Ship: No
• iSafe Equipped: Yes
• Lifeline Length: 9 ft. (2.7 m)
• Lifeline Hook: Zinc Plated Steel
• Lifeline: 3/16" (5mm) dia. 7x19 Galvanized Aircraft Wire Rope
• Housing: Nylon Thermoplastic
• Model: 3500213
• Physical Weight: 4.20 lbs (1.9kg)
• Product Styles: Single Lifeline
• Product Types: Harness Mounted Leading Edge Tie-Back
• Housing Type: Thermoplastic
• Lifeline Type: Galvanized Cable
• Mounting Type: Direct to Harness Back
• Weight Group: Less than 5 lbs. (2.3 kg)
• Standards: ANSI Z359.14, OSHA 1910.66, OSHA 1926.502, Capital Safety Gen. Mfg. Req., ANSI A10.32
