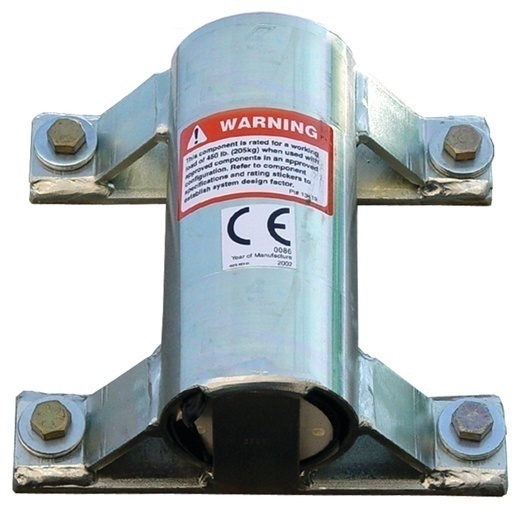

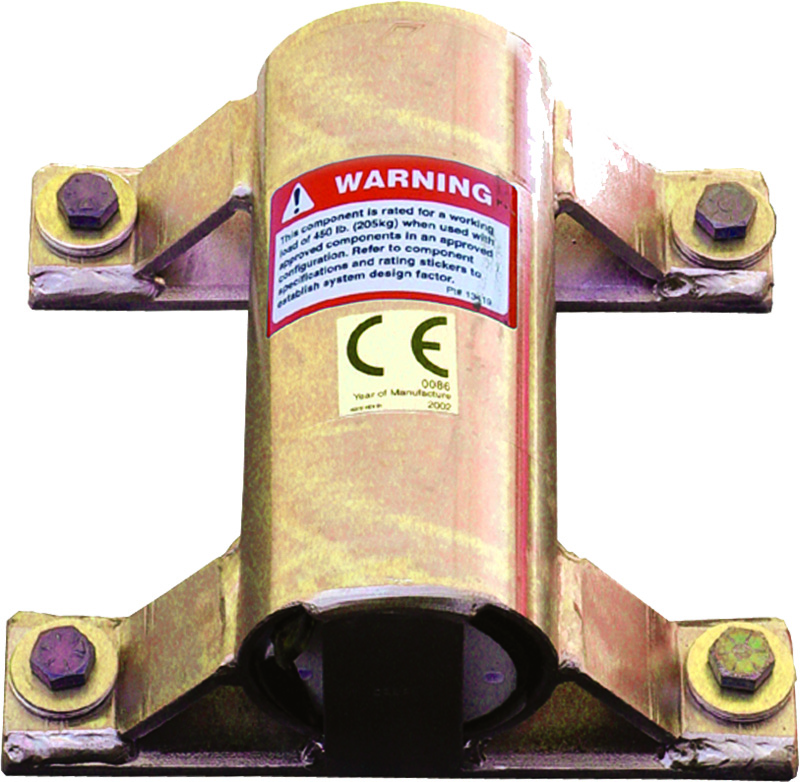

DBI Sala Advanced Wall Mount Sleeve Davit Base

The DBI Sala Advanced Wall Mount Sleeve Davit Base is designed for manhole and confined space entry/retrieval applications. This unit can be bolted or welded to walls and has a 360 degree davit mast rotation. The DBI Sala Advanced Wall Mount Sleeve Davit Base comes in both zinc plated or stainless steel options

Features:

• Wall mount sleeve davit base - Mounts to vertical concrete or steel structures by welding or bolting providing anchor point base for offset davit mast.
• Bolt or weld to vertical walls - Attaches to horizontal surfaces where frequent confined space system set-up is required providing a permanently installed davit mast base to an existing structure.
• Corrosion resistant plated hardware - Zinc plating offers great corrosion resistance to stand-up to the toughest environments, providing added longevity.
• High strength steel construction - Offers a compatible anchor point for all Advanced™ davit masts and is perfectly matched to handle the variable capacities.
• 360 degree davit mast rotation - Designed to allow installed davit mast to rotate freely for maximum flexibility and freedom of movement.
• PVC davit mast sleeve liner - Eliminates metal to metal contact improving performance and ensuring smooth consistant davit mast rotation.
• Permanent installation with standard tools - Install with tools found in most facillities reducing time and cost of set-up.
• Available: Zinc Plated or Stainless Steel
• Capacity: Variable up to 450 lbs. (204 kg)

Specifications:

• Capcity: Variable up to 450 lbs. (204 kg)
• Label: Polyester
• Physical Dimensions: 10.00 x 4.30 x 9.30 (lbs)
• Physical Weight: 12.30 lbs. (5.6 kg)
• Standards: Capital Safety Gen. Mfg. Req.
