DBI Sala SecuraSpan I-Beam HLL Stanchion with Base

Status: This item qualifies for Quick Ship. Quick ship items typically ship out the same day you order them as long as the order is placed before 7pm EST, Monday through Friday.

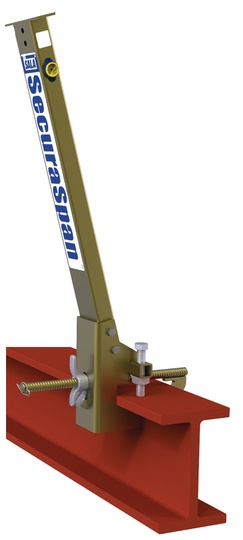

DBI Sala SecuraSpan I-Beam HLL Stanchion with Base

The DBI Sala SecuraSpan I-Beam Horizontal Lifeline Stanchion with Base incorporates a modular, multi-base design that accommodates a wide range of steel and concrete beams. Spans can be up to 60 ft (18.3 m) and with the optional bypass brackets, the system can be configured to run indefinitely for ultimate jobsite flexibility. This Stanchion fits 6 to 12 in. flanges up to 2-1/4 in. thick and has a simple clamp and wing nut installation.


  • Stanchion with I-beam base to configure your own SecuraSpan system
  • Fits 6 in. to 12 in. (15.2 - 30.5 cm) wide flange up to 2-1/4 in. (5.7 cm) thick
  • Lightweight and portable design
  • Top mounted adjustment system
  • Simple clamp and wing nut installation
  • Extremely durable construction
  • Single and multi-span indefinite length system configurations
  • Pass-thru 100% tie-off protection
  • Flexible system capacity
  • Various lengths and individual components are available
  • Equipped with i-Safe


  • Capacity: 310 lbs (141 kg)
  • Max Number of Users: 2 Per Span, 6 Total
  • Label: Vinyl
  • Physical Weight: 36 lbs (16.3 kg)
SKU DS-7400047
Manufacturer DBI Sala
