Dialight A0 Tower Lighting Kit

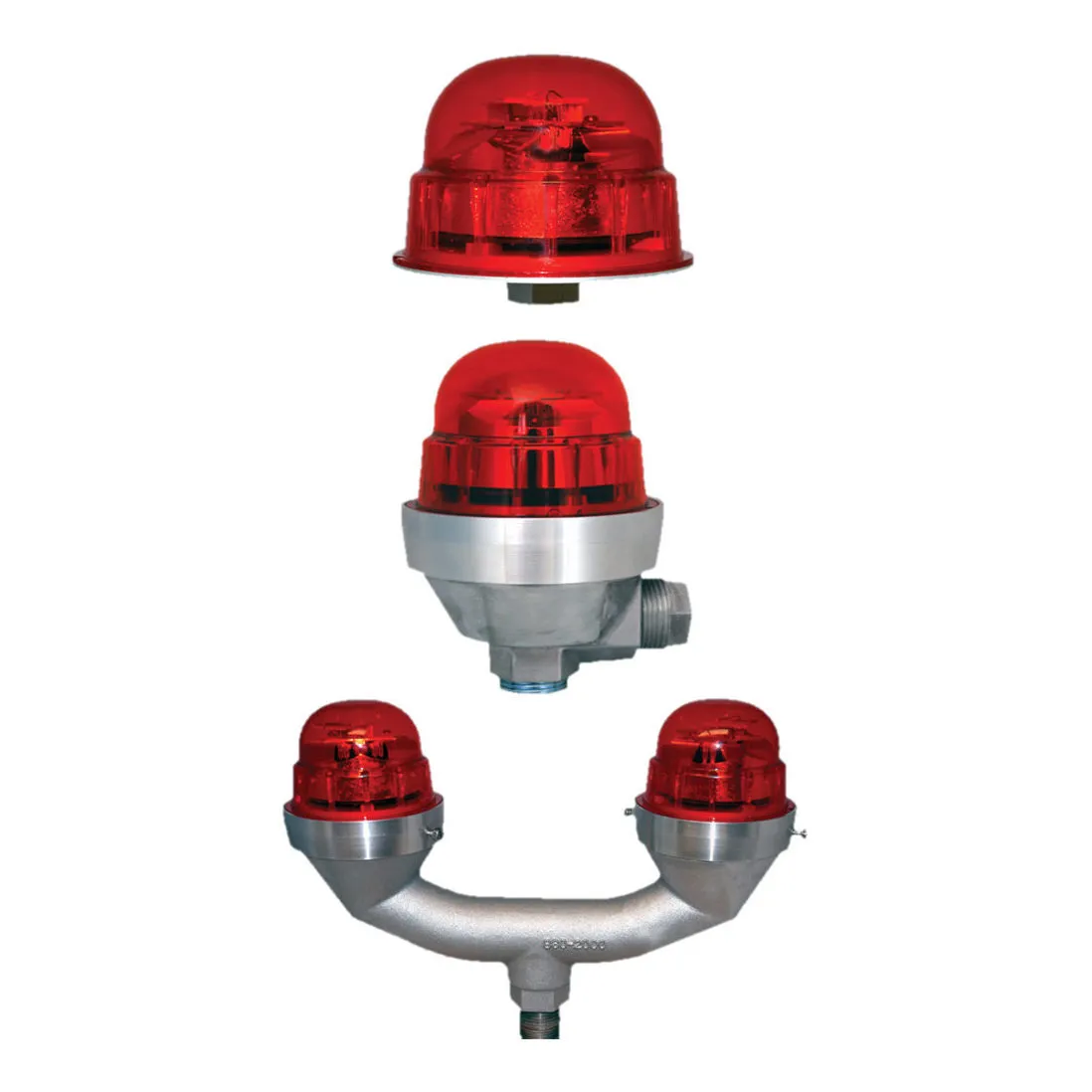

Dialight’s LED-based Red Obstruction System is ideal for A0 FAA tower types and can be used to mark other structures as well, like water towers and grain elevators. The operation of the lights is configurable and fully monitored. The side markers can be run in steady burn or flashing mode. The flash rate of the lights is also configurable. The lights are ETL verified to the FAA requirements. The system includes Controller, Photocell, Dual L810 Red Markers, 200ft Cabling, and Tape.

Features:

• Integrated controller
• LED uses 95% less power than incandescent lights
• Best-in-class lightning protection
• 10+ years Life Expectancy
• No preventive maintenance required
• Fewer Tower Climbs
• Full 5-year performance warranty
•  Universal 120-277V AC input
•  NEMA 4x outdoor rated enclosure
• Wide temperature range: -40oC to +55oC
• Configurable for steady or flash rates of 20, 30, or 40 flashes per minute
• Avian Compliance
• Optional infrared light fixtures
• Lightweight design
• IP 66 rated light fixtures
• Impact and vibration resistant
• Provision for the padlock on the enclosure
• (4) Dry contacts for alarm monitoring/status
• Photocell alarm
• L-810/L-864 light alarms
• Operation mode (day/night)
• Can control and monitor a maximum of:
• Sixteen (16) L-810 side markers or
• Eight (8) L-810 side markers and one (1) L-864 beacon

Specifications:

• SKU: D5R-KIT-STD-A0 (Includes Controller, Photocell, Dual L810 Red Marker, 200ft Cabling, and Tape.)
• Manufacturer Model: D5R-KIT-STD-A0
• Manufacturer: Dialight Corporation
