Home > Devices & Testing > Electrical Testing > Klein Tools CL800 Digital Clamp Meter AC/DC Auto-Ranging

Model#: CL800

Stock#: KT-69016

UPC/GTIN/EIN: 092644690167

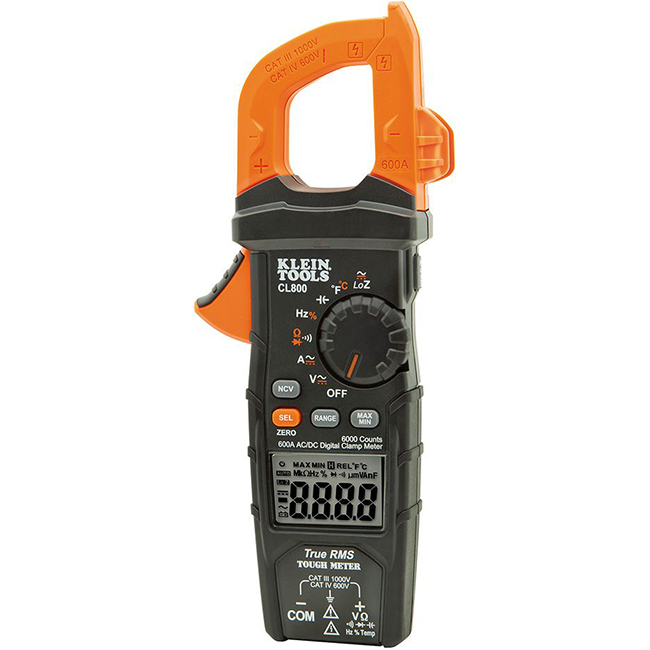

Klein Tools CL800 Digital Clamp Meter AC/DC Auto-Ranging

KT-69016

$139.97

THIS ITEM SHIPS FOR FREE!
This item qualifies for Quick Ship. Quick ship items typically ship out the same day you order them as long as the order is placed before 6pm EST, Monday through Friday. Get it by Aug 15

Klein Tools CL800 Digital Clamp Meter AC/DC Auto-Ranging

Features:

  • Clamp Meter with automatically ranging true mean squared (TRMS) technology for increased accuracy
  • Test leads measure AC/DC voltage, resistance, continuity, frequency and capacitance and tests diodes
  • Thermocouple probe measures temperature
  • Low Impedance (LoZ) mode for identifying and eliminating ghost or stray voltages
  • CAT IV 600V, CAT III 1000V, Class 2, Double insulation safety rating
  • Built to withstand a 6.6-Foot (2m) drop
  • Low battery indicator and easily accessible battery compartment
  • Operating temp: 32-degree F to 104-degree F (0-degree C to 40-degree C)
  • Operating altitude to 6562-Foot (2000m)

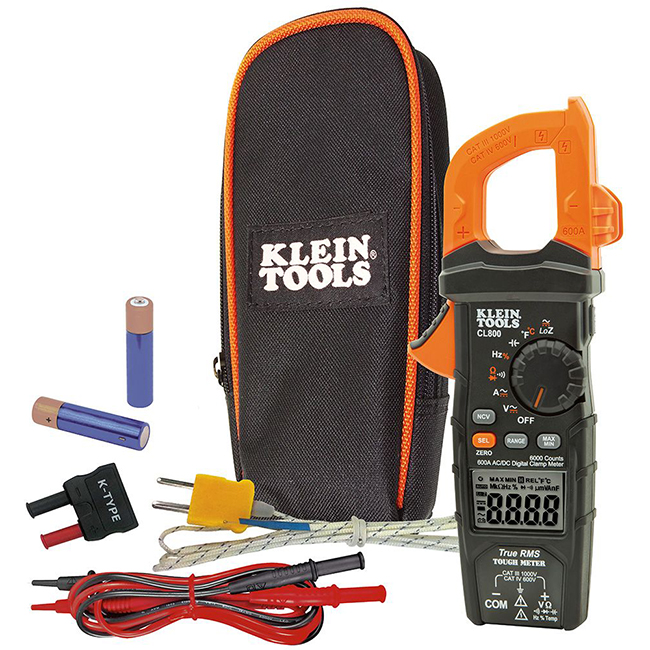

  • Includes carrying pouch, test leads, thermocouple with adapter and batteries
  • Meets requirements for use in basic and controlled electromagnetic environments like residential, office and light-industrial locations



Klein Tools CL800 Electrical Tester is an automatically ranging true root mean squared (TRMS) digital clamp meter that measures AC/DC voltage, resistance, continuity, frequency, capacitance, and tests diodes via test-leads, and temperature via a thermocouple probe. It also features a Low Impedance (LoZ) mode for identifying and eliminating ghost or stray voltages. Klein Tools’ Test and Measurement product line was exclusively designed from the ground up by electricians for electricians. Years of field research, combined with extensive input from electricians across America, inspired the development of meters and electrical testers loaded with innovative, time-saving features.





Specifications:

  • Application:   Measures Current
  • Special Features:   Features Low Battery Indicator and Auto Shut Off
  • Batteries:   2 x AAA
  • Jaw Size:   1.38 Inches (3.5 cm)
  • Drop Protection:   6.6 Feet (2 m)
  • Display:   6000 Count LCD
  • Functions:    Test leads measure AC/DC voltage, resistance, continuity, frequency and capacitance and tests diodes. Thermocouple probe measures temperature.
  • Voltage:   1000V AC; 1000V DC
  • Frequency:   1Hz - 500 KHz
  • Current:   600A AC; 600A DC
  • Capacitance: 6000µF
  • Ohms (Resistance): 60MO
  • Temperature Range: -14° - 1000°F (-26° - 538°C)
  • Ingress Protection: IP40
  • Standard: CAT IV 600V; CE Certified
  • Included: Carrying Case, 41'' (1041.4 mm) Test Leads, Thermocouple with Adapter, and Batteries
  • Overall Length:   9.09 Inches (23.1 cm)
  • Overall Height:   1.55 Inches (3.9 cm)
  • Overall Width:   3.81 Inches (9.7 cm)
  • Weight:   12.5 oz (354 g)

KT-69016
Battery Type: AAA (2)
Width: 3.81"
Country of Manufacture: China
Frequency Range: 1 Hz - 500 KHz
Height (Generic): 1.55"
Industry: Construction
General Industry
Utility
Jaw Width: 1.38"
Manufacturer: Klein Tools
Standards: CAT IV
CE
Tool Style: Individual Tools
Voltage: 1000V AC
1000V DC
Weight: 1.50
