Dillon EDXtreme Dynamometer
$2,730.00 to $66,315.00 Sale price: $2,730.00 to $66,315.00
Dillon EDXtreme Dynamometer

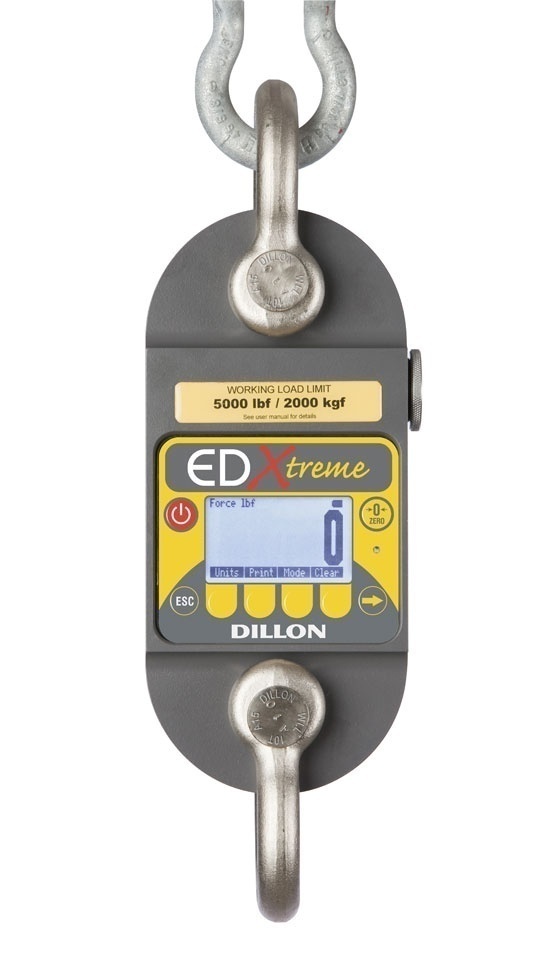

The Dillon EDXtreme Dynamometer is your complete solution when it comes to working around high tension cables and massive loads. This dynamometer has capabilities ranging from being something as simple as a digital scale to offering a higher lever of intelligence with user-defined functions and sophisticated communication options. The EDXtreme redily adapts to multi-tasking operations or multi-link systems capable of monitoring a series of critical stress points from a single location.
Features:
- Exclusive SOFTKEY interface: Confusing menus have been eliminated for faster setup and simple operation. In addition to lbf, kgf and Newtons, programmable functions can correct for gravitational variations and allow the use of custom units of measurement.
- Wide-angle, backlit LCD: Provides improved readability over a wider viewing angle and has backlighting for low light conditions.
- Battery operation – The EDXtreme is powered by two standard C-cell batteries. Batteries are easily accessible for fast replacement.
Specifications:
- Enclosure: Designed to NEMA4X/IP55. Suitable for continuous outdoor use.
- Accuracy: 0.1% of capacity up to EDx-50T.* 0.3% of capacity for EDx-75T and above.*
- Repeatability: 0.1% of capacity up to EDx-50T.* 0.3% of capacity for EDx-75T and above.*
- Proof Load: 150% of capacity up to EDx-75T. 110% of capcity Edx-100T and above.
- Safe Overload: 200% of capacity
- Body Protection: Aluminum and alloy steel capacities are powder coated.
- Bearings: Unmatched repeatability attained by needle bearings in shackle pin holes up to EDx-5T. Shackle pin acts as inner race.
- Shackles: Forged industry standard anchor shackles. Models up to EDx-5T use precision machined shackle pin. Higher capacities use bar stock pin.
- Display: 128 x 64 dot-graphic LCD display shows up to 6 digits 1.0” (26 mm) high plus annunciators and softkeys. Digits are .11 inches (3 mm) thick for unmatched readability.
- Display Update Rate: 2 times per second.
- Peak Capture Rate: 10/100/1,000 Hz
- Connector: Recessed sealed connector may be used for serial communications or connection to a Communicator II remote.
- RS-232 Communication: Print or extract data easily. Continuous output can drive a scoreboard. Confi gurable poll character.
- Calibration: Traceable to the National Institute of Standards and Technology. Certifi cate included with curve of readings. Passes only with three consecutive confi rming runs, with all points in specifi cation.
- Battery Life: Stand alone EDXtreme with no radio and no backlight lasts up to 400+ hours. 150 hours continuous with Radio Link System. Use with two C-Cell alkaline batteries. (When using backlight, battery life will be reduced, depending on intensity.)
- Operating Temperature: -4° F to 158° F (-20° to 70° C)
- For additional specifications please click here
* Normal resolution mode with Dillon provided shackles.
Available Options
EDXtreme with Shackles:
- EDXtreme 1T - 2,500 lbf | 1,000 kgf | 10,000 N (AWT05-506312)
- EDXtreme 2T - 5,000 lbf | 2,000 kgf | 20,000 N (AWT05-506313)
- EDXtreme 5T - 10,000 lbf | 5,000 kgf | 50,000 N (AWT05-506314)
- EDXtreme 10T - 25,000 lbf | 10,000 kgf | 100,000 N (AWT05-506315)
- EDXtreme 25T - 55,000 lbf | 25,000 kgf | 250,000 N (AWT05-506316)
EDXtreme Communicator II Ready without Shackles:
- EDXtreme 10T - 25,000 lbf | 10,000 kgf | 100,000 N (AWT05-507313)
- EDXtreme 25T - 55,000 lbf | 25,000 kgf | 250,000 N (AWT05-507314)
- EDXtreme 50T - 100,000 lbf | 50,000 kgf | 500,000 N (AWT05-507315)
- EDXtreme 75T - 160,000 lbf | 75,000 kgf (AWT05-507319)
- EDXtreme 100T - 220,000 lbf | 100,000 kgf (AWT05-507316)
- EDXtreme 150T - 330,000 lbf | 150,000 kgf (AWT05-507318)
- EDXtreme 250T - 550,000 lbf | 250,000 kgf (AWT05-507317)
EDXtreme Communicator II Ready with Shackles:
- EDXtreme 1T - 2,500 lbf | 1,000 kgf | 10,000 N (AWT05-506302)
- EDXtreme 2T - 5,000 lbf | 2,000 kgf | 20,000 N (AWT05-506303)
- EDXtreme 5T - 10,000 lbf | 5,000 kgf | 50,000 N (AWT05-506304)
- EDXtreme 10T - 25,000 lbf | 10,000 kgf | 100,000 N (AWT05-506305)
- EDXtreme 25T - 55,000 lbf | 25,000 kgf | 250,000 N (AWT05-506306)
- EDXtreme 50T - 100,000 lbf | 50,000 kgf | 500,000 N (AWT05-506307)
- EDXtreme 75T - 160,000 lbf | 75,000 kgf (AWT05-506308)
- EDXtreme 100T - 220,000 lbf | 100,000 kgf (AWT05-506309)
- EDXtreme 150T - 330,000 lbf | 150,000 kgf (AWT05-506310)
- EDXtreme 250T - 550,000 lbf | 250,000 kgf (AWT05-506311)
Dillon EDXtreme Communicator II (Optional) | Click Here to View

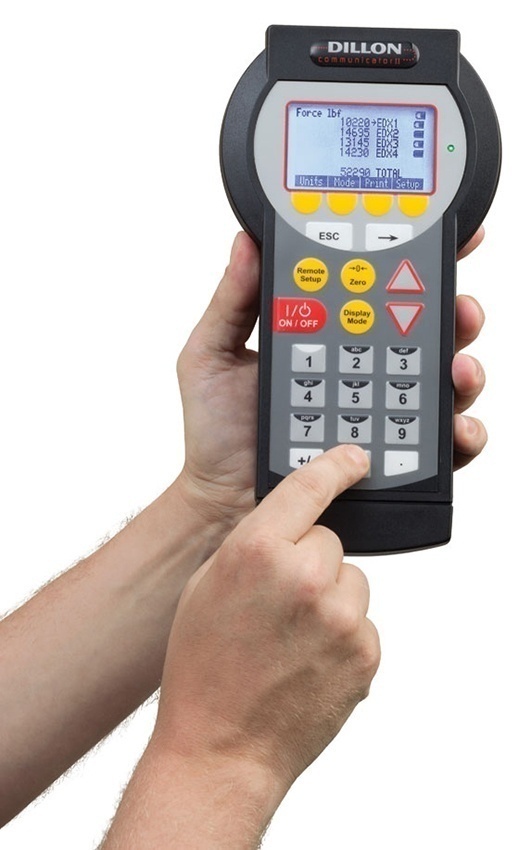

The Dillon EDXtreme Communicator II is a hand-held radio ready controller for EDXtreme units. The Communicator II is an extremely powerful hand-held remote that can define the function and manage the operation of one or more EDXtreme dynamometers using wired or radio technologies. Through the programmable SOFTKEY interface, one or more Communicators can monitor multiple dynamometers within the same airspace. In multiple-link lifting arrays, the Communicator can display readings at any or all lift points and calculate the total load.
Features:
- Remote configuration
- Data acquisition
- Single point monitoring of multiple links
- RS-232 interface for connection to a host PC
- Can use radio or be hard-wired
Specifications:
- Enclosure: Designed to NEMA 3 / IP54 with optional sleeve. Suitable for protected outdoor use
- Size: 9.5 x 5.0 x 2.5 in. (241 x 127 x 64 mm).
- Display: 128 x 64 dot-graphic LCD display can show full readings up to 5 instruments.
- Battery Life: Up to 80 hours continuous radio using (4) AA alkaline batteries.
- Operating Temperature: -4° F to 158° F (-20° to 70° C)
- Connectors: Sealed connectors may be used for serial communications and wired connection to an EDXtreme dynamometer
- RS-232 Communication: Print or extract data easily. Continuous output can drive a scoreboard. Configurable poll character.
C-AWT-AWT05-506312
Manufacturer: | Dillon |
