Home > Manufacturers > Dutton-Lainson > Dutton-Lainson Pulling Ratchet Winch - 3500 Pound Load Capacity

Model#: DL3500B

Stock#: DL-14881

UPC/GTIN/EIN: 085077148817

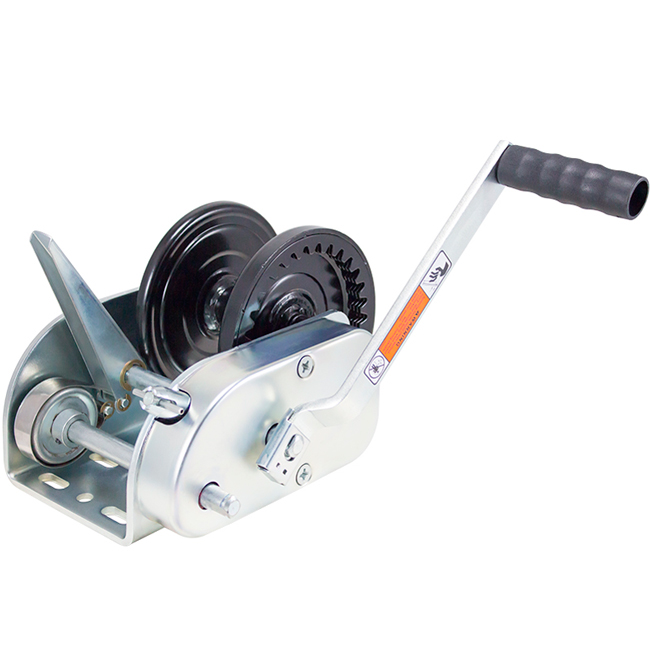

Dutton-Lainson Pulling Ratchet Winch - 3500 Pound Load Capacity

DL-14881

$375.99

THIS ITEM SHIPS FOR FREE!
Direct Ship Ships in: 1+ month

Dutton-Lainson Pulling Ratchet Winch - 3500 Pound Load Capacity

DL3500B Standard Pull Ratchet Winch Specifications:

Capacity 3500 lbs.
Drum Diameter
1 5/16"
Gear Ratio 12:1 / 6:1
Mech. Adv. 135
Handle Length 9 1/2"
Drum Cap 3/8" x 37'
  • Laminated high carbon steel gears for longer life
  • Gears are arc-welded and drive shaft gears are copper brazed for durability
  • Rigid, welded reel construction for added strength
  • Freewheel when the ratchet is disengaged
  • Load matched gear ratios for easier cranking
  • Zinc plated Tuffplate finish
  • Base plates fit BIA Standard mounting hole pattern for easy installations
  • Meets SAE Standard J1853
  • Hand brake standard equipment.
  • Capacity based on direct line pulls on the third layer of line on the drum.
  • Capacity is reduced as the line builds up on the drum.
  • Drum capacity based on cable size listed. (Cable not included.)
  • Winch is not to be used as hoists for lifting, supporting or transporting people.



DL-14881
Attachment: Bolt-On
Capacity: 3500 lbs
Country of Manufacture: United States
Diameter: 1-5/16"
Finish: Zinc Plated TUFFPLATE
Manufacturer: Dutton-Lainson
Material: High-Carbon Steel
Mechanical Advantage: 12:1
6:1
Standards: SAE J1853
Warranty?: 1 Year
Weight: 23.00
