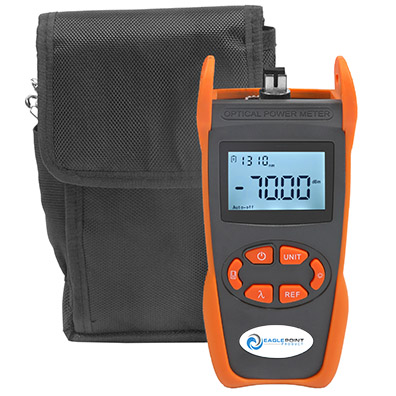

Eagle Point Fiber Optical Power Meter

OPM101A-H is a full-function optical power meter. Used in fiber network installation, fiber network engineering acceptance and fiber network maintenance.  Compared with usual power meters, the OPM101A has more functions & features of automatic wavelength identification and switching, as well as intelligent backlight control.

Features:

• Rugged Construction
• SC, FC, & ST connectors included
• Frequency ID/Tone detection---Automatic frequency identification
• Data storage function, up to 1000 test records
• USB communication port to download the saved testing records
• Reference power level can be set up and stored
• Auto-off function can be activated or deactivated
• AA alkaline and AC adapter for power supply
• Low battery indication

Specifications:

• Wave ID: 850/1270/1310/1490/1550/1577/1610
• Optical Connector: FC, SC, ST
• Detector type: InGaAs
• Measurement Range (dBm): -50~+26
• Detector Area: Ø 1.0mm
• Uncertainty (dB): ±0.15(3.5%)
• Linearity (dB): ±0.02
• Display resolution (dB): 0.01
• Frequency ID (Hz): 270,330,1K,2K
• Date storage capacity: 1000
• Communication Port: USB
• Alkaline battery: 3xAA,1.5V
• Power Supply Adaptor(V): 8.4
• Battery Operating time(h): 200
• Operation Temp: -10~+60
• Storage Temp: -25~+70
• Outline size (mm): 200 X90 X50
