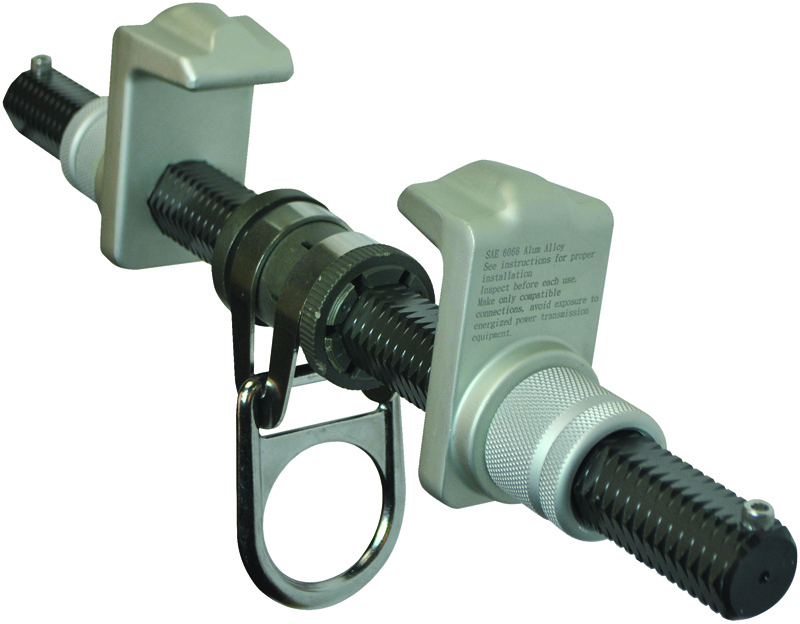

FallTech Trailing Beam Clamp

The FallTech trailing beam clamp anchor has a dual attachment for centering on I-beam as well as aluminum hex bar and jaws.

Features:

• Heavy-duty aluminum alloy construction.
• Ideally suited for fixed positions.
• Easily installed and relocated.
• Fits flanges from 1/2" to 1" thick and widths of 3.5" to 12".
• Meets the requirements of OSHA 1926 and ANSI Z359.
• Rated at over 5,000 lbs..

Material Specifications:

• Hex Bar: Aluminum Alloy; Min. 5,000 lbs. tensile strength
• Jaws: Aluminum Alloy; Min. 5,000 lbs. tensile strength
• D-ring assembly: Alloy Steel; Min. 5,000 lbs. tensile strength.

Performance Specifications:

• Tensile Strength: Min. 5,000 lbs.
• Max. Capacity: 425 lbs.

Relevant Standards:

• OSHA: CFR1926.502, CFR1910.66
• ANSI: A10.32-2004, Z359.1-2007
