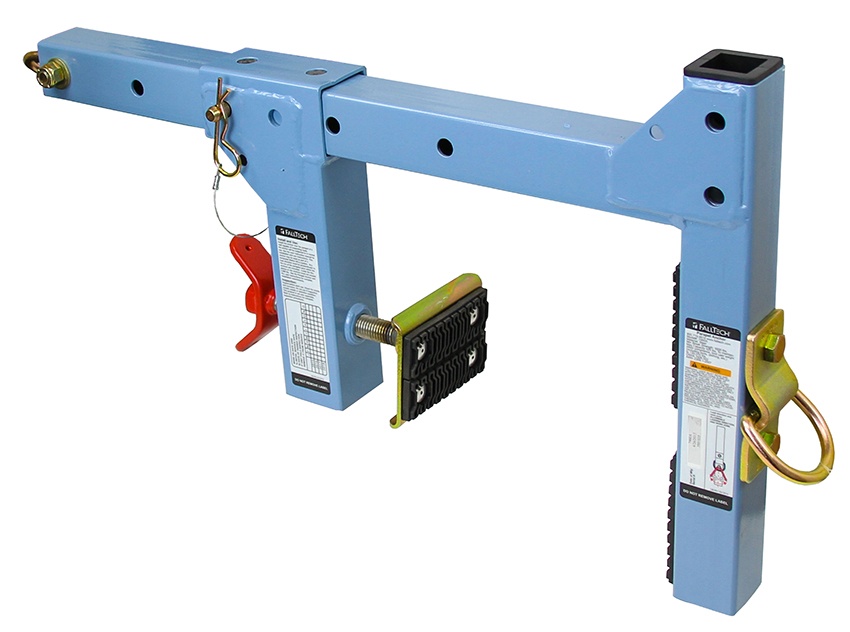

FallTech Temporary Parapet Wall Anchor

The FallTech Temporary Parapet Wall Anchor fits parapet walls 1/2 to 15 inches thick and requires no fasteners. This fall arrest anchor has powder-coated steel construction and features protective footpads on the main body and final adjustment clamp. It requires a minimum parapet height of 9 inches and meets OSHA 1926 and ANSI Z359. This anchorage system can be used with the FallTech Horizontal Lifeline Kit.

Features:

• Heavy-duty powder-coated tubular steel frame
• For walls with a thickness from 1/2 to 15 inches
• 9 inches minimum wall height
• Protective rubber pads
• Compatible with the FallTech Horizontal Lifeline Kit.

Specifications:

• Weight: 22 lbs
• Frame: Powder Coated Tubular Steel Frame; Min. 5,000 lbs. tensile strength
• Adjustment Clamp: Stainless steel; Min. 5,000 lbs. tensile strength
• Tie-back ring: Alloy Steel; Min. 5,000 lbs. tensile strength.
• Tensile Strength: Min. 5,000 lbs
• Capacity: 425 lbs *To maintain ANSI Z359 compliance, limit total user weight to 310 lbs
• OSHA: CFR1926.502 and CFR1910.66
• ANSI: A10.32-2004 and Z359.1-2007
