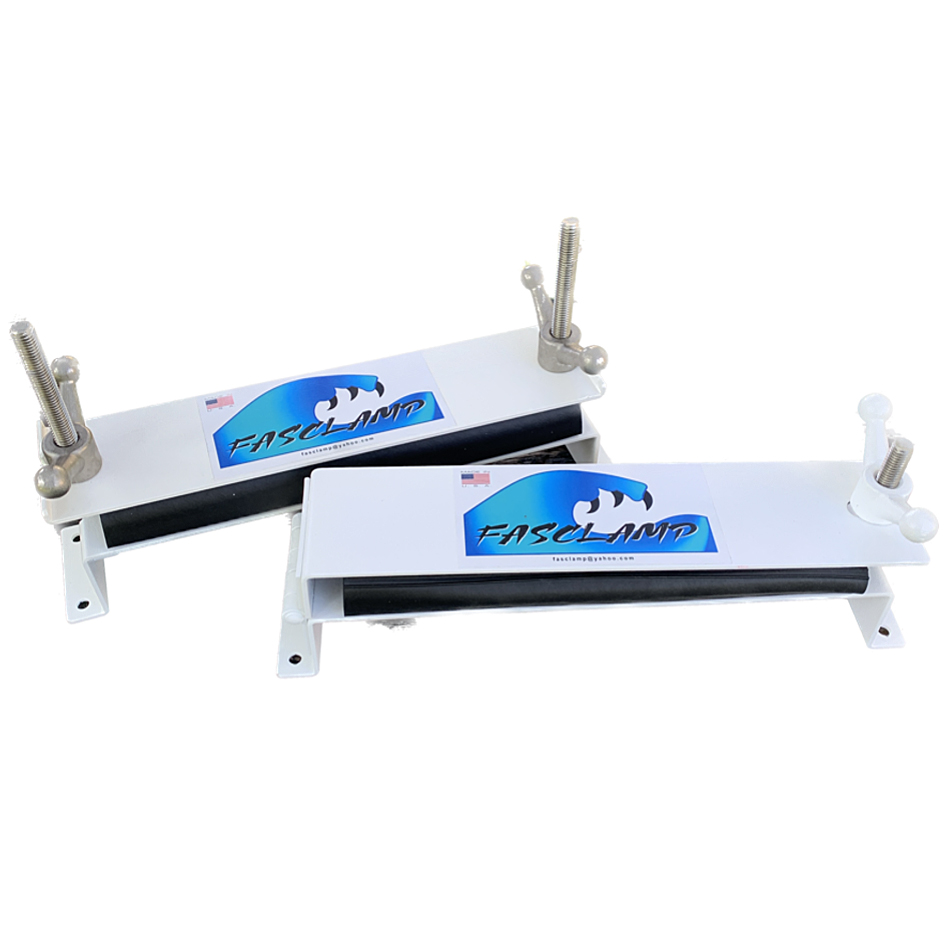

FasClamp Fiber Optic Cable Clamp System

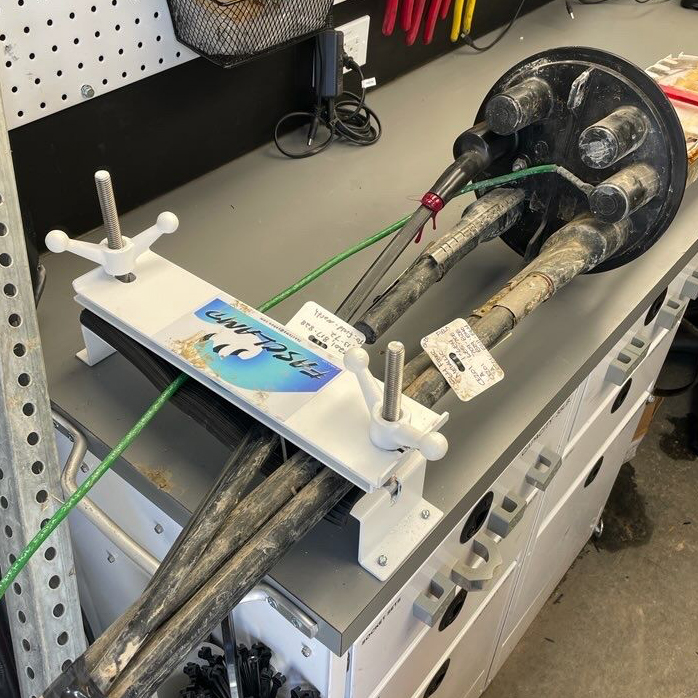

Fasclamp is a fiber optic cable clamp that is used to secure the fiber cables and prevent movement while prepping and splicing fiber cables. Designed by a by a fiber splicer with 25 years experience in the field, FasClamp and FasclampXL can be used in any splicing vehicle, trailer, or table mounted for indoor use. It is the most fail proof way to secure the cables while prepping them and provides a secure grip while splicing the fiber. Allows bundles of cables or single flat drop cables. Hinge side is wider for larger bundles or diameter cables while the machine nut side can be tightened down and cinch onto the smaller diameter cables.

This is a much-improved method to using zip ties or other ways currently used to perform this task. Cables will not slip under tension and provide safety and stability while attempting mid span entry of live cables, as well as old plant cables and enclosures while attempting to add new lateral drops. Fasclamp design allows various diameters of cable to be held in place simultaneously, including but not limited to small diameter, flat drop, ribbon cable and large loose tube cables. All fit and are held secure by the non-slip rubber gasket on the top and bottom plate of the clamp. Designed to hold the cables and NOT the enclosure. Other clamps grip the enclosure itself but are enclosure specific. By gripping the cables, this clamp can be used in any prepping or splicing scenario without being limited to enclosure style.

Fasclamp and FasclampXL allow splicers to work safely, proficiently and professionally. Securing cables allows for safely prepping cable, especially during mid span entry and buffer tube shaving. Customers cannot have outages on live cuts due to cable slippage. Fasclamp helps to eliminate this issue. Look professional with cables in fasclamp as opposed to zip tying or nothing at all.



Features:

• Requires NO adjustment with tools
• Designed to hold the cables and NOT the enclosure
• Powder coated to withstand the abuse and weather in field use
• Predrilled screw holes to allow attaching to solid surface for secure nonslip gripping
• Fully welded construction for fail safe use, no rivets or screw that may become compromised over time
• Hinge plug welded, not riveted or screwed to upper and lower clamp plates
• Commercial grade flexible rubber gasket which is attached with 3m pressure sensitive tape to inside of upper and lower clamp plates.
• Flexibility allows for the ultimate grip on any cable, including optical ground wire, without any slippage
• Clamp has a full 12” long by 3 ¼" gripping surface
• Opens to greater than 90 degrees for ease of laying the cables into the clamp
• Built out of steel
• Designed for new or existing plant
• Allows bundles of cables or single flat drop cables

Avaiable options:

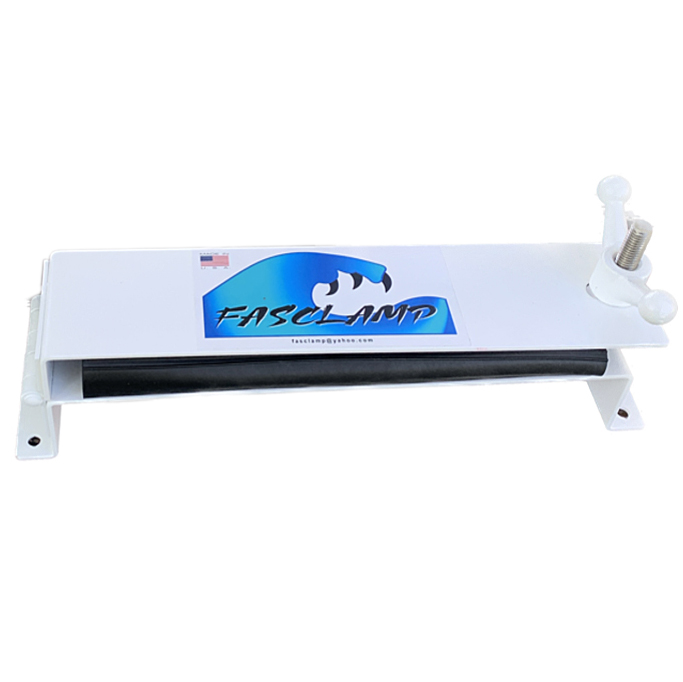

• Fasclamp Standard (designed for up to 3” diamter cables)
• Fasclamp XL (designed for up to 6” diamter cables)

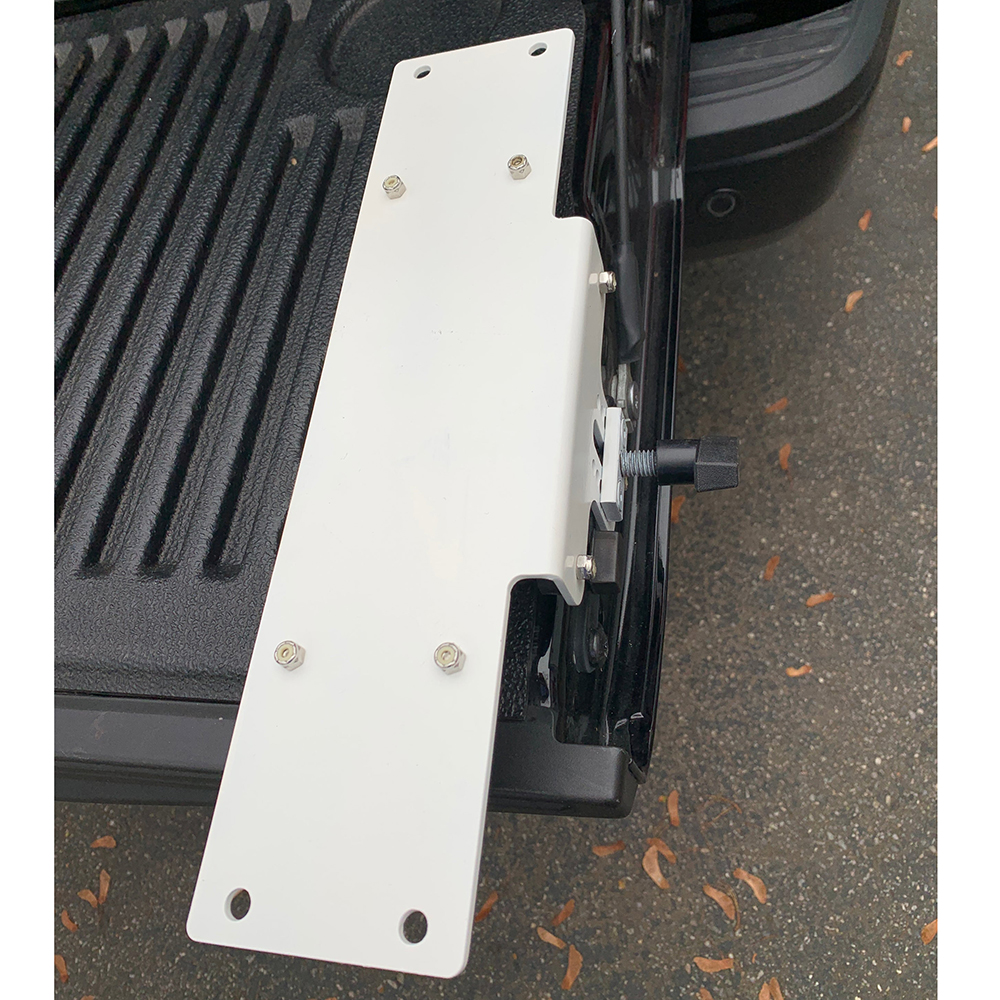

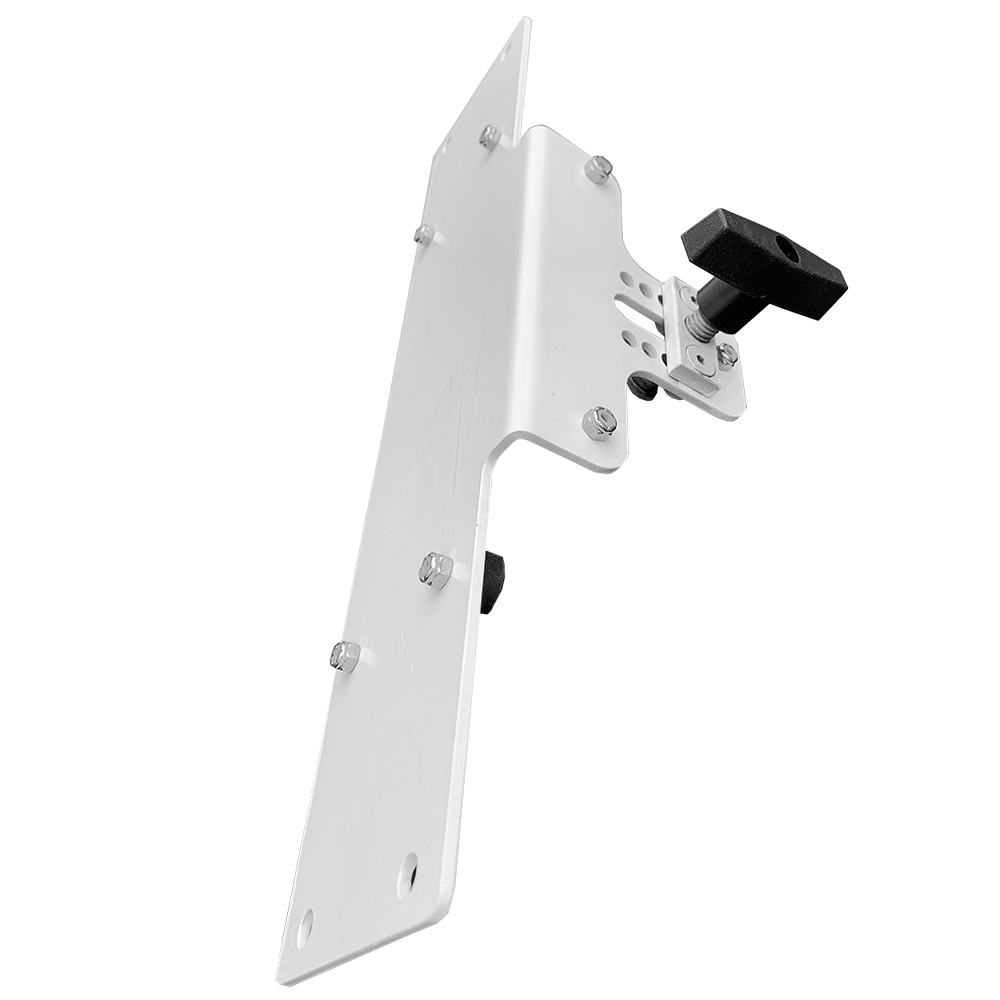

• Tailgate Mounting Bracket
