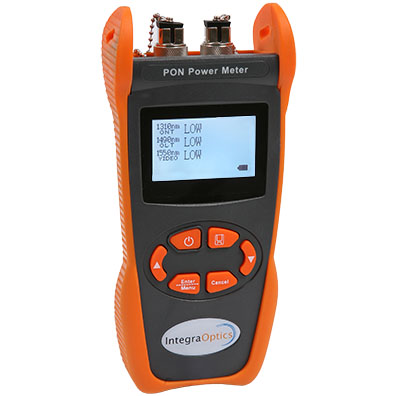

IntegraOptics Fiber Optical PON Power Meter

Features:

• Providing simultaneous measurement at EPON/GPON for all three wavelengths on the fiber (1490nm, 1550nm,1310nm, 1270nm, 1577nm)
• Used in Burst mode measurement of 1310nm/1270nm upstream
• Convenience for threshold setting, which can set the threshold on the tester
• USB communication port enables data transfer to a PC
• Offers up to 10 different threshold sets in total
• User self-calibration can be retrieved on a computer through the software.
• 10 minutes Auto-off function can be activated or deactivated with keypad operation.

Specifications:

Measurement Accuracy:

• Connatural uncertainty(dB):   ±0.5
• Linearity(dB):   ±0.1
• Passing through insertion Loss(dB):  <1.5


General Information:

• Detector Type:  InGaAs
• Optical Connector:   FC/SC Interchangeable
• Fiber Type:   9/125um
• Resolution (dB): 0.01
• Measurement Unit: dB/dBm/xW

The IntegraOptics Fiber Optical PON Power Meter power meter is able to simultaneously test and estimate the signals of the voice, data, and video. It is an essential and ideal tool for the construction and maintenance of PON projects.
