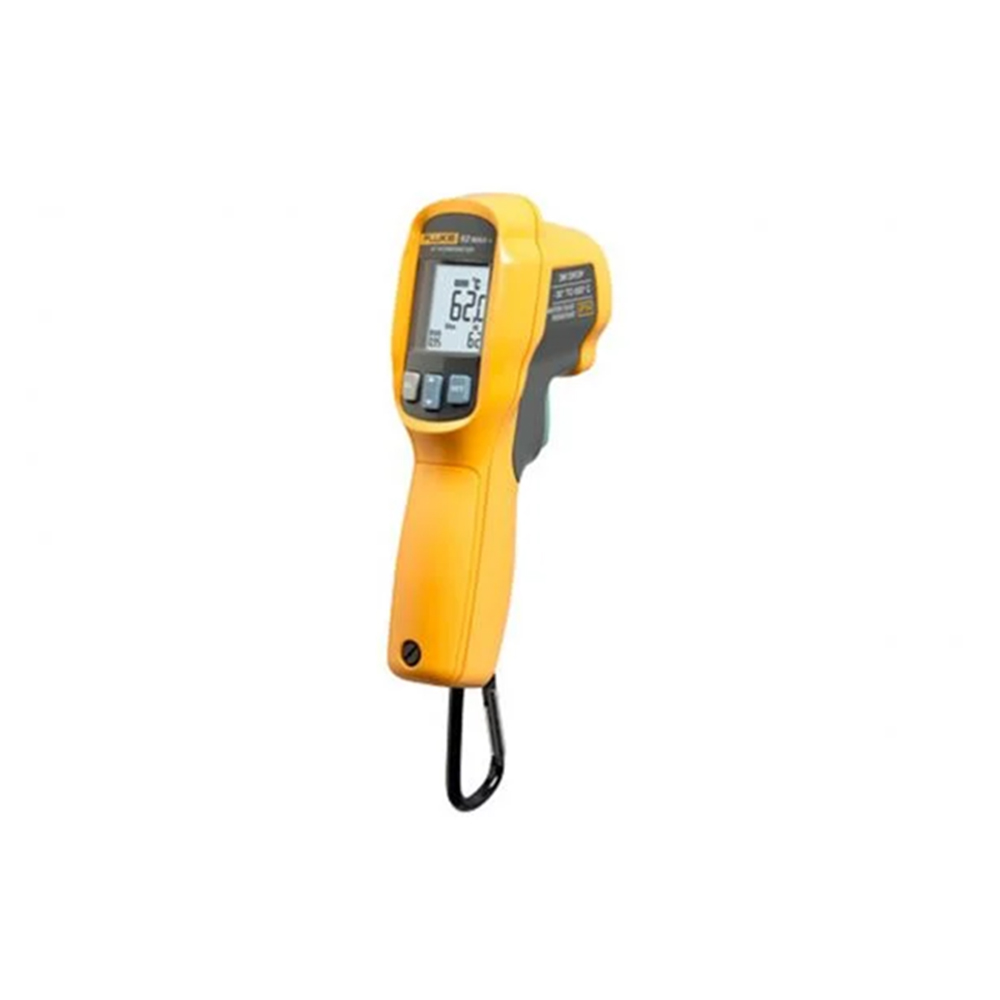

Fluke 62 MAX with Handheld Infrared Laser Thermometer

The Fluke 62 MAX with Handheld Infrared Laser Thermometer delivers the accuracy you need in an extremely rugged package. Just point, shoot and read the temperature of many types of equipment. Get accurate readings from transformers, motors, pumps, panels, breakers, compressors, ducts, steam lines, valves, and vents. The IR thermometer’s small size and versatile features make it extremely easy to use. Plus, the lightweight form factor clips comfortably to your tool belt or belt loop or easily fits in your toolbox. The 62 MAX+ is rugged enough to take a three-meter drop – good news if you work from a ladder. Dual lasers help you target your measurement; the 12:1 distance-to-spot ratio helps get the reading you want. With its IP54 rating for dust and water resistance, you can rely on the Fluke 62 MAX+ to provide extremely accurate temperature measurements, rain or shine, even in dirty and dusty industrial sites. Powered by a single, standard AA battery.

Features:

• Extremely rugged – 3-meter drop tested, IP54 for dust and moisture
• Precise dual-lasers for more accurate, repeatable measurements
• Provides up to a 12:1 Distance to spot ratio
• High and low alarms for rapid detection of measurements outside the limits
• Displays Min/Max/Avg/Dif
• The minimum, maximum, or average temperature, or the difference between two measurements
• Easy to read, even in dark areas with large, backlit display

Specifications:

• Temperature range: -30°C to 650°C (-22°F to 1202°F)
• Accuracy:
  • ±1.0°C or ±1.0% of reading, whichever is greater
  • -10°C to 0°C: ±2.0
  • -30°C to -10°C: ±3.0
• Response time (95%): < 500 ms (95% of reading)
• Spectral response: 8 to 14 microns
• Emissivity: 0.10 to 1.00
• Optical resolution: 12:1 (calculated at 90% energy)
• Display resolution: 0.1°C (0.2°F)
• Repeatability of readings: ±0.5% of reading or <±0.5°C (1°F), whichever is greater
• Power: AA battery
• Battery life: 8 hours with laser and backlight on
• Weight: 255 g (8.99 oz)
• Size: 175 x 85 x 75 mm (6.88 x 3.34 x 2.95 in)
• Operating temperature: 0°C to 50°C (32°F to 122°F)
• Storage temperature: -20°C to 60°C (-4°F to 140°F), (without battery)
• Operating humidity: 10% to 90% RH non-condensing at 30°C (86°F)
• Operating altitude: 2000 meters above mean sea level
• Storage altitude: 12,000 meters above mean sea level
• IP rating: IP 54 per IEC 60529
• Drop test: 3 meters
• Vibration and shock: IEC 68-2-6 2.5 g, 10 to 200 Hz, IEC 68-2-27, 50 g, 11 ms
• Electromagnetic compliance: IEC 61326-1: Portable electromagnetic equipment
• Safety:
  • IEC 61010-1: Pollution degree 2
  • IEC 60825-1: Class 2
