Model#: 4566209

Stock#: FLK-PRV240

UPC/GTIN/EIN: 095969772983

Fluke PRV240 Proving Unit

FLK-PRV240

$190.99

THIS ITEM SHIPS FOR FREE!
This item qualifies for Quick Ship. Quick ship items typically ship out the same day you order them as long as the order is placed before 6pm EST, Monday through Friday. Get it by Aug 15

Fluke PRV240 Proving Unit

Features:

  • Validate test tool functionality outside of hazardous zones
  • Supplies 240 V, both DC and AC
  • Compatible with both high or low impedance test tools

Kit Includes:

  • Fluke PRV240 Proving Unit

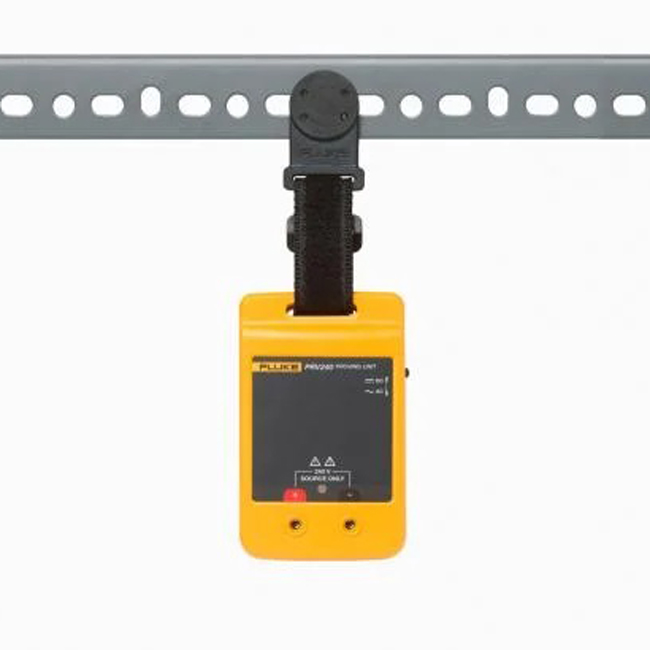

  • TPAK hanging strap
  • Four AA batteries
  • Quick reference guide

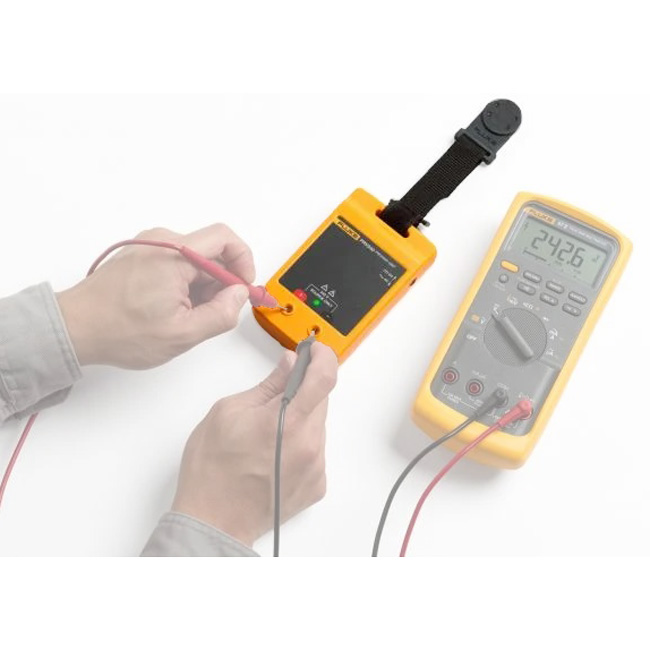

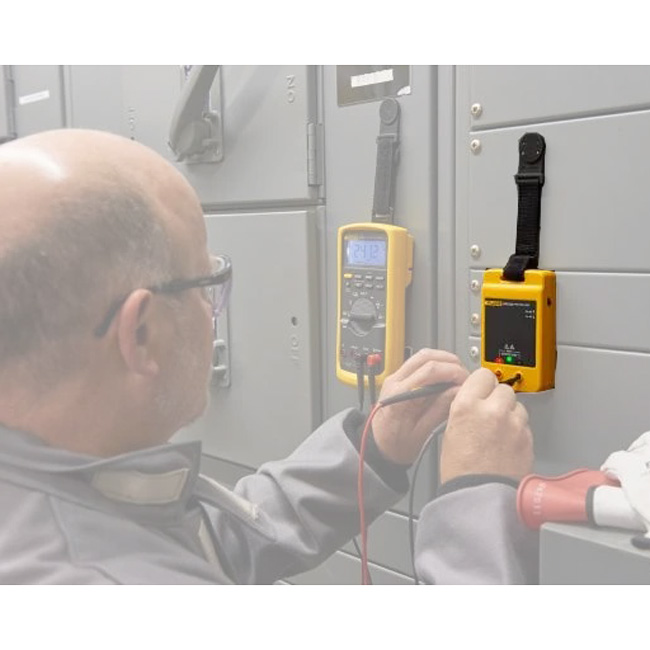

The Fluke PRV240 Proving Unit is a portable, pocket-sized, battery-powered voltage source. It is unique because it sources stable AC and DC voltages for both LoZ and HiZ instruments. The Fluke PRV240 provides a safe method to verify that your electrical test tool is operating properly before and after you conduct any live tests. The concept of “Test Before Touch” (TBT) involves testing your meter against a known live source before and after the actual measurement. This sequence verifies that your test tool is operating properly through the actual measurement. A single LED on the PRV240 indicates functionality, making this unit a simple-to-use solution for complying with TBT verification of your test tool. Voltage is sourced through recessed contacts that are activated when tested probes are inserted to avoid accidental contact. Using the PRV240 reduces the need for personal protective equipment (PPE) when a known voltage source is not available for verification of your tester or multimeter, so a TBT is performed. PPE is still needed for the absence of voltage testing when appropriate.

General Specifications
Output voltage 240 V ac rms or dc ± 10 % ≥ 1 MΩ
  LoZ >3 kΩ load 60 V ac typical
50 V ac rms minimum
LED power indicator Turns on when output voltage is present
Battery 4 AA Alkaline batteries NEDA 24 A IEC LR03
Battery life 5000 (5-second duration) test cycles with >1 MΩ load, 300 tests minimum with >3 kΩ load
Operating temperature -10 °C to +50 °C
Operating humidity 0 % to 90 % (0 °C to 35 °C)
0 % to 70 % (35 °C to 55 °C)
Operating altitude 2000 m
Dimensions 11.7 cm x 7.4 cm x 2.8 cm (4.6 in x 2.9 in x 1.1 in), Pollution Degree 2
Weight 0.23 kg (8 oz) includes batteries
Safety IEC61010-1, IEC61010-2-030
Warranty One-year
Electromagnetic
Compatibility (EMC)
IEC 61326-1 Portable EM environment; CISPR 11, Group 1, Class A
US (FCC) 47 CFR 15 subpart B, this product is considered an exempt device per clause 15.103
Korea (KCC) Class A Equipment (Industrial Broadcasting & Communication Equipment)
This product meets requirements for industrial (Class A) electromagnetic wave equipment and the seller or user should take notice of it. This equipment is intended for use in business environments and not to be used in homes.







FLK-PRV240
Battery Type: AA (4)
Width: 2.9"
Height (Generic): 1.1"
Length: 4.6"
Manufacturer: Fluke
Standards: IEC 61010-1: Pollution Degree 2
IEC 61010-2-030
IEC 61326-1
Weight: 0.50
