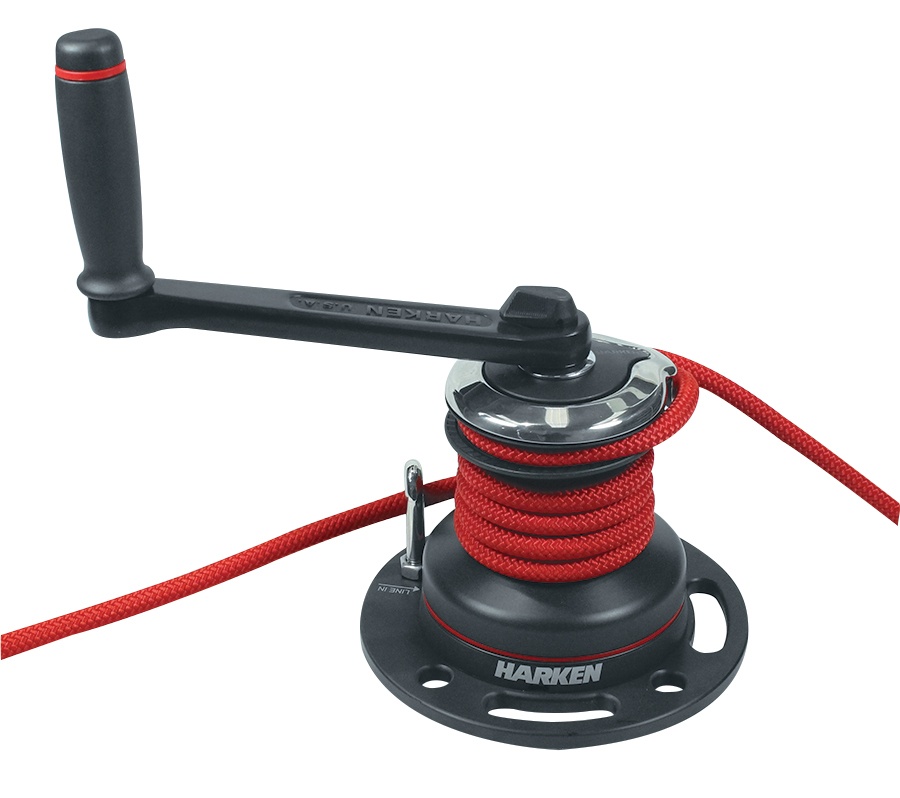

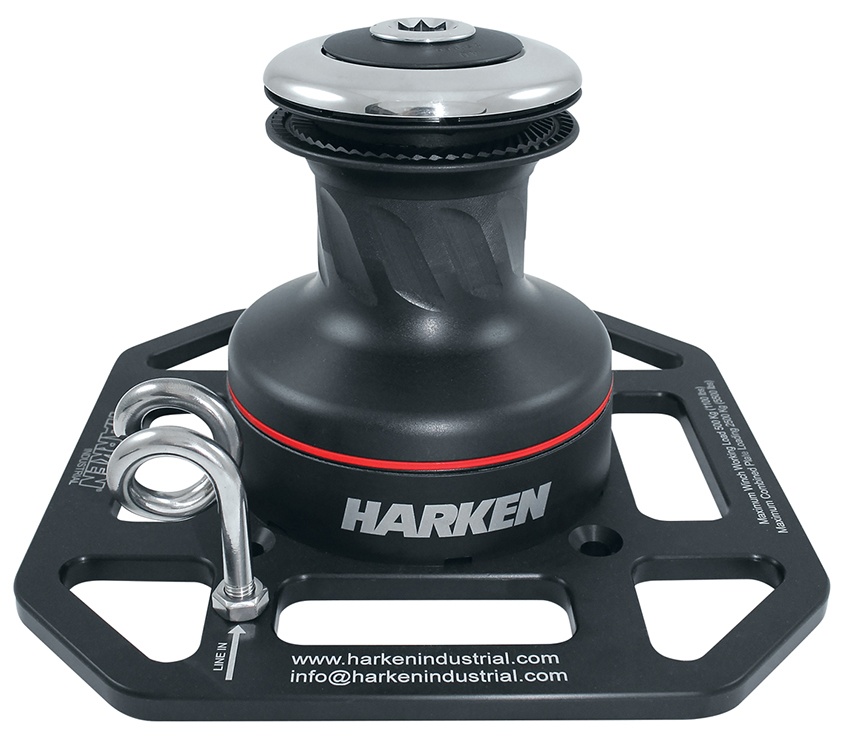

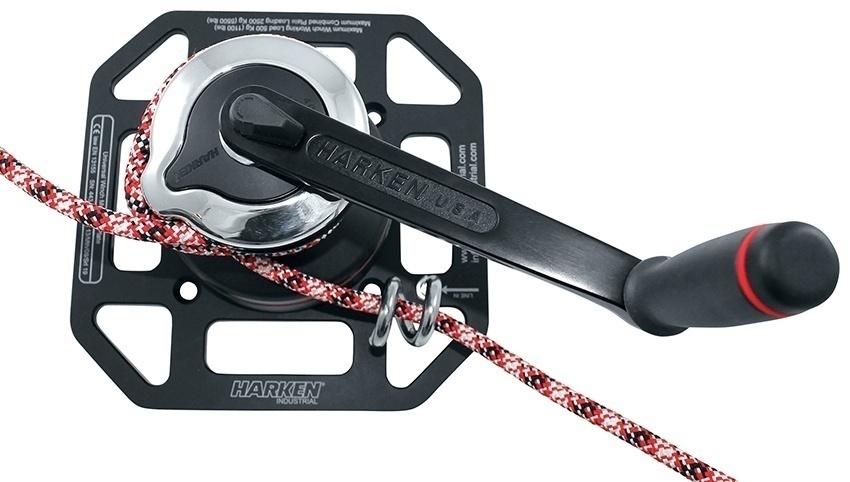

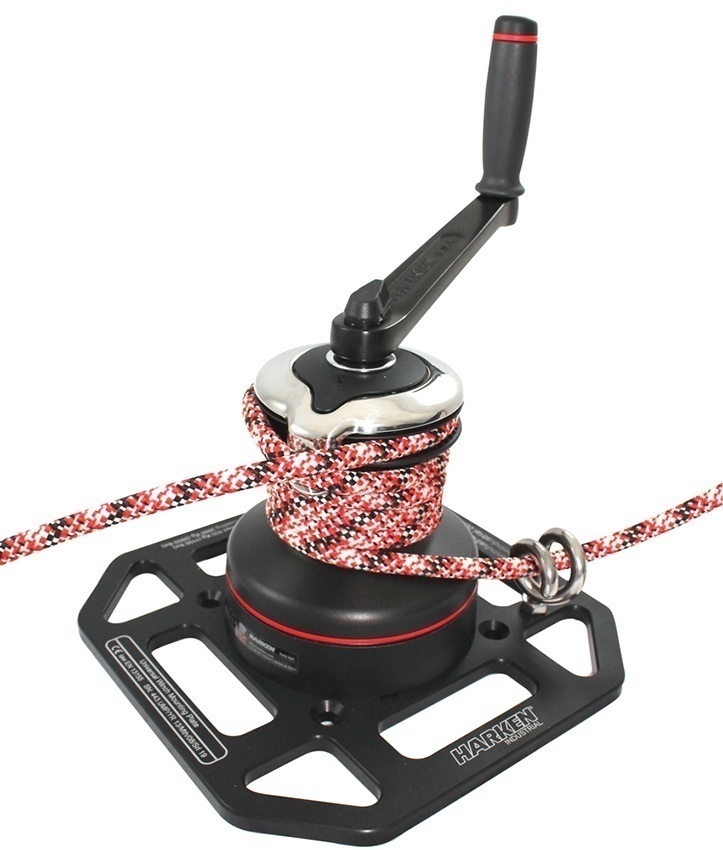

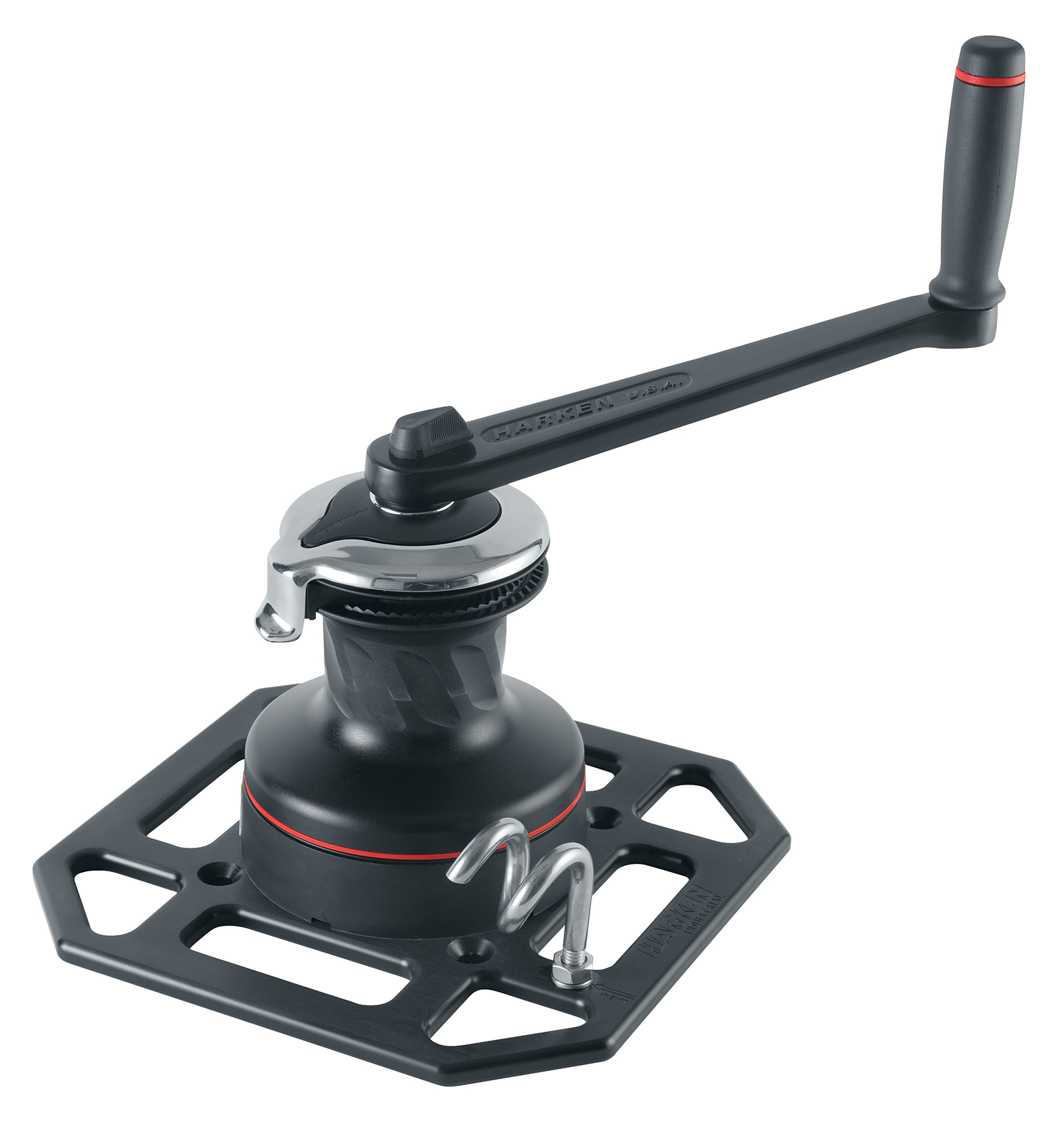

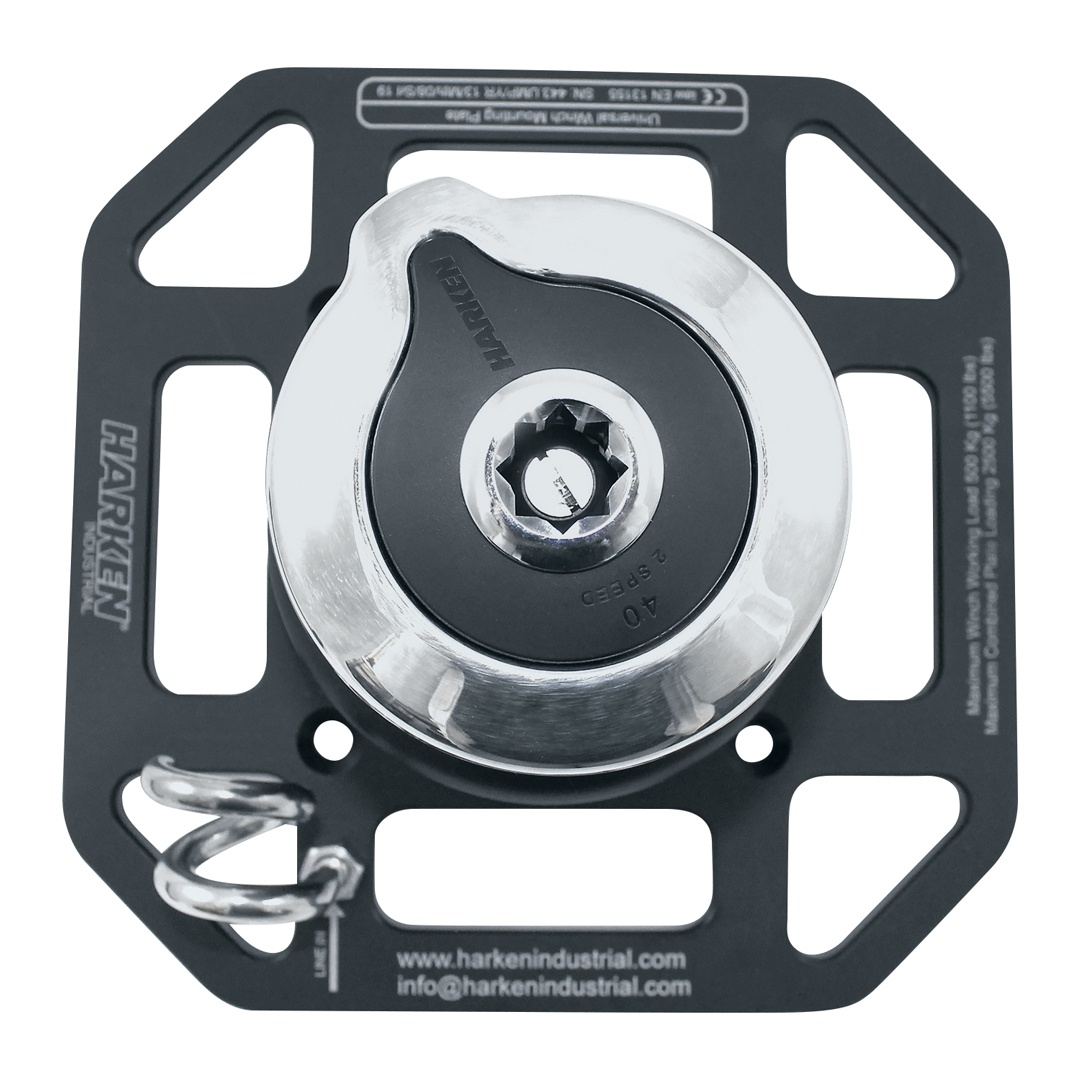

Harken Traction Winch

The Traction Winch provides the user with a lightweight portable winch mounted to a sturdy adaptor plate. Can be mounted to a tripod. Simple to use and ideal for a diverse range of lifting and load pulling applications. For use with multiple attachments depending on the environment and industry; from ratchet straps, M10 bolts, carabiners, to scaffold clamps. The Traction Winch 500 includes: Universal mounting plate, 40.2 Harken winch and Harken 10-inch winch handle.

Features:

• Design: The mounting plate is sculpted to remove excess weight and provides multiple attachment points without compromising strength. The pigtail line lead ensures correct alignment and loading of the winch for maximum efficiency.
• Drum: The unique drum design maximizes grip on the rope.
• Fiber Rope: The winch is designed for use with fiber rope up to 1/2 in (12 mm) in diameter, reducing weight and allowing alignment to the load. Smooth surfaces and chafe-free design are amenable to fiber rope.
• Mounting Plate: Includes a universal mounting plate & Harken 10 in. winch handle.
• Options: For use with multiple attachments depending on the environment and industry—from ratchet straps, M10 bolts, carabiners, to scaffold clamps.
• Certification: CE certified under EN 13157 (Machinery Directive).

Specifications:

• Rope Compatibility: 8 mm - 12 mm (5/16" - 1/2")
• Weight: 7 kg (15.4 lbs)
• Maximum working load: 4.9 kN (500 kg) (1102 lb)
• Power ratio with 254 mm/10" winch handle: 13.5:1/39.9:1
