Home > Manufacturers > Harken Industrial > Harken Wingman Material Handling Haul Kit

Model#: IN172.3M

Stock#: HK-IN172.3M

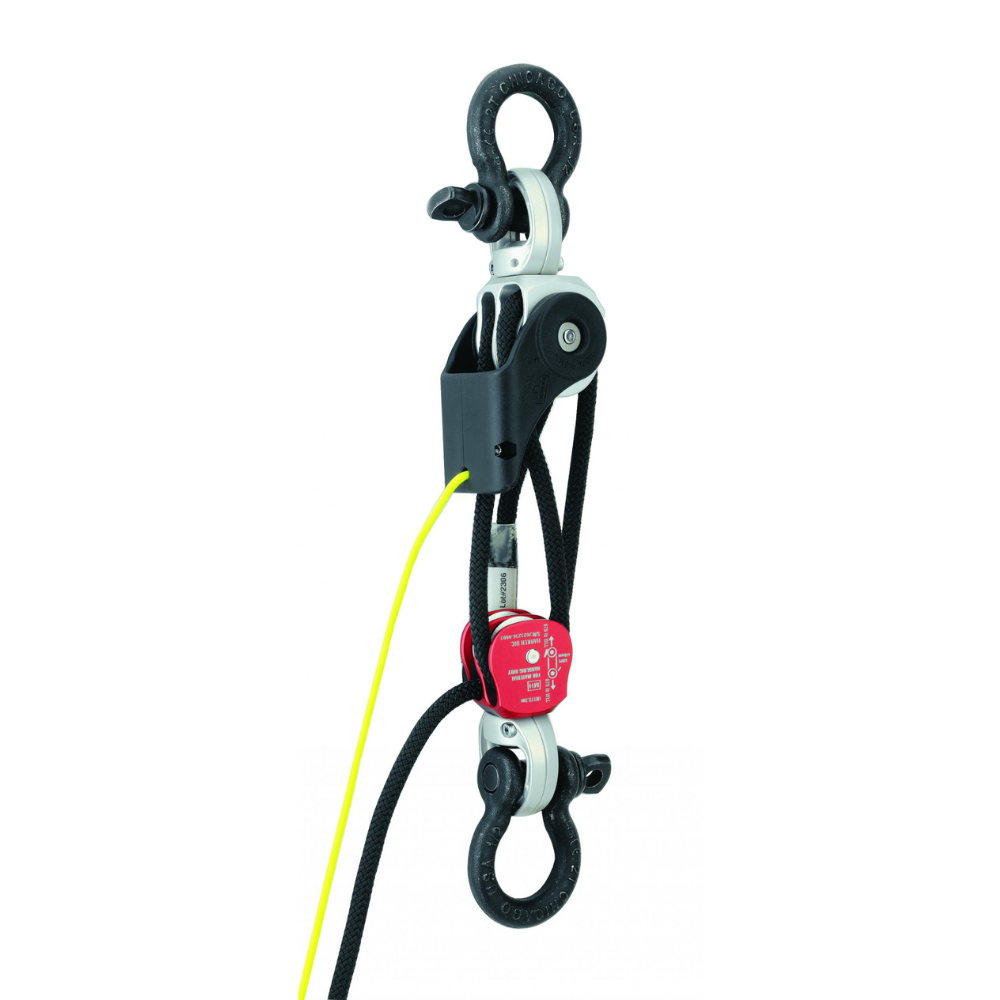

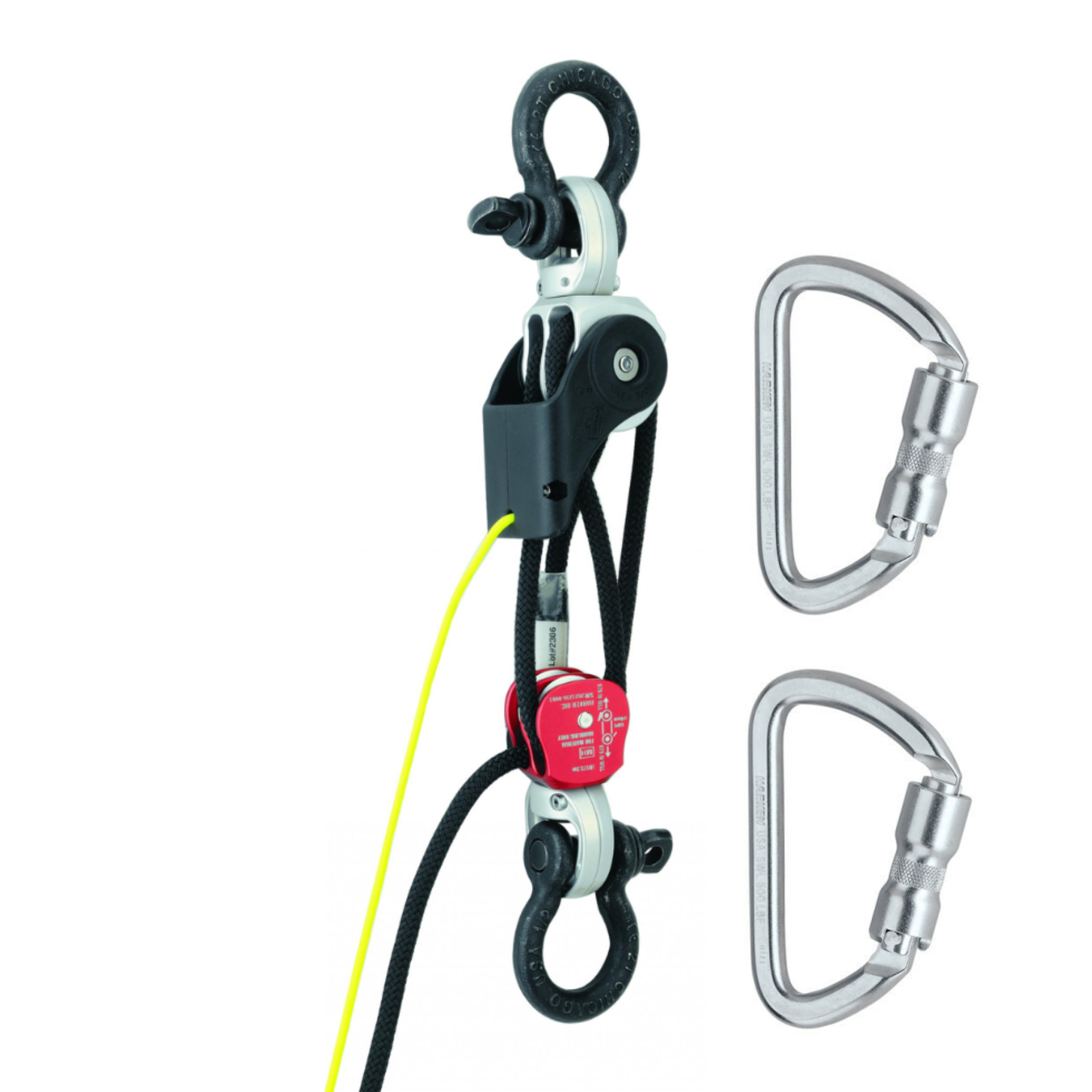

Harken Wingman Material Handling Haul Kit

HK-IN172.3M

$474.99

Original price: $474.99

$424.99 Sale price: $424.99 Save $50.00 (11%)

THIS ITEM SHIPS FOR FREE!
Get It Between Oct 23 and Nov 06

Sale!

Get entered into a chance to win a Cuisinart Portable Gas Grill when you purchase 1 or more of this item!

Interested in bulk orders or have more questions? Click Here

  • ASME B30.26 Compliant
  • Remote release
  • 4:1 or 5:1 mechanical advantage (flip orientation to rig either way)
  • Eccentric progress capture = no prusiks
  • Machined aluminum swivel connection points
  • Rope Length: 3 Meters

The Harken Wingman Material Handling Haul Kit applies new design and technology to achieve more from a compact personal mechanical advantage system. The Wingman’s innovative design makes it among the first products in this category to achieve internal progress capture mechanically within the unit rather than relying on prusiks to achieve that externally. It combines a ratcheting sheave to stop the rope with a composite handle or wing the operator can open and close under load for a well-modulated ‘fine-tuned’ release. Under full load even with the sheaves pulled completely together, the system may be released quite easily--with full control using one hand on the wing and the other tending the line. The Wingman has a minimum overall length of just 8” which means more clearance under a tripod. The device is also ideal for creating adjustable directionals, and much more. It may be configured as a 4:1 or 5:1 mechanical advantage system. These revolutionary features plus ball bearings within the sheaves maximize efficiency for raising and lowering loads.

Features:

  • ASME B30.26 Compliant
  • Remote release
  • High-efficiency ball-bearing pulleys, internal ratchet, and sheaves are engineered to maximize rope holding.
  • Can be released smoothly under full load with one hand
  • 4:1 or 5:1 mechanical advantage (flip orientation to rig either way)
  • Eccentric progress capture = no prusiks
  • Machined aluminum swivel connection points
  • Rope Length: 3 Meters
  • Maximum working load (lb): 675 lb
  • Maximum working load (kg): 300 kg
  • Breaking load (lb): 10116 lb
  • Rope Diameter: 8mm Fiber

HK-IN172.3M

Manufacturer: Harken Industrial
Standards: ASME B30.26
Weight: 3.00
