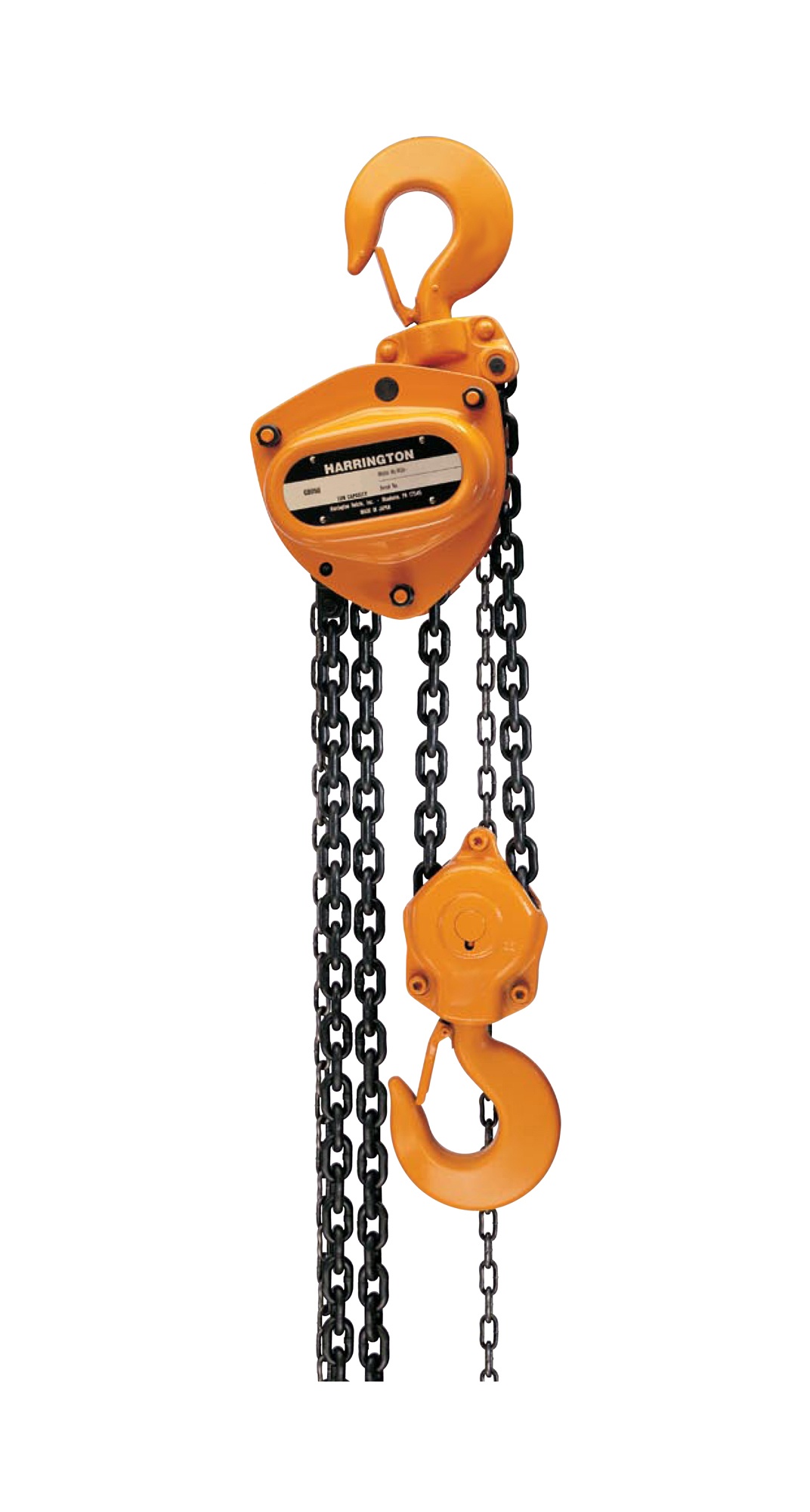

Harrington CB Hand Chain Hoist
The Harrington CB Hand Chain Hoists combine a rugged exterior shell with machined interior components to handle your most demanding lifting operations. An efficient drive train minimizes manual effort, while a double enclosed brake cover, standard slip clutch, and double pawl springs enhance performance and reliability. The all steel construction ensures maximum durability and the compact design results in lightweight and easy portability.
Features:
- Exceptional durability from an all-steel construction featuring rugged gear case enclosure and handwheel cover
- Increased lifting height thanks to low headroom
- Compact design results in lightweight and easy portability
- Minimize manual effort thanks to efficient drive train
- Standard slip clutch device prevents the hoist from being used to lift damaging loads beyond rated capacity
- Double pawl springs provide redundancy for reliable operation of brake mechanism
- Get reliable braking with double enclosed brake cover that keeps out dust, rain, and dirt
- Chain resists abrasion and wear while minimizing weight
- steel hooks are designed to open slowly, without fracturing under excessive loads
Specifications:
- Grade 100 heat-treated manganese alloy load chain
- Forged and heat-treated alloy steel hooks
- Load tested to 125% of rated capacity
- Meets ASME B30.16 requirements.
- 1/2 Ton Weight: 22 lbs
- 1 Ton Weight: 25 lbs
- 20 Ton Weight: 765 lbs
Available Options:
- 1/2 Ton 10' of Lift (CB005-8)
- 1 Ton 10' of Lift (CB010-8)
- 20 Ton 20' of Lift (CB200-20)
