Harrington LB Heavy Duty Lever Hoist

Multiple Options Available
Please select an option below
FREE SHIPPING OVER $75!
Multiple Options

$362.65 to $2,064.99


Load Rating *

Lift Distance *

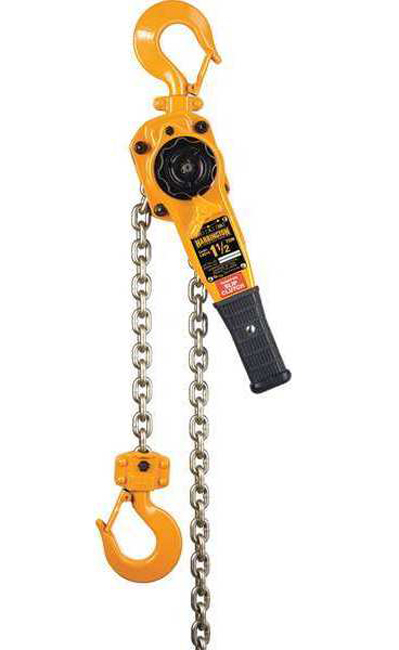

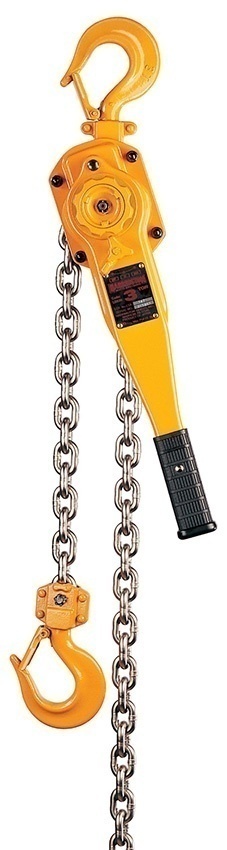

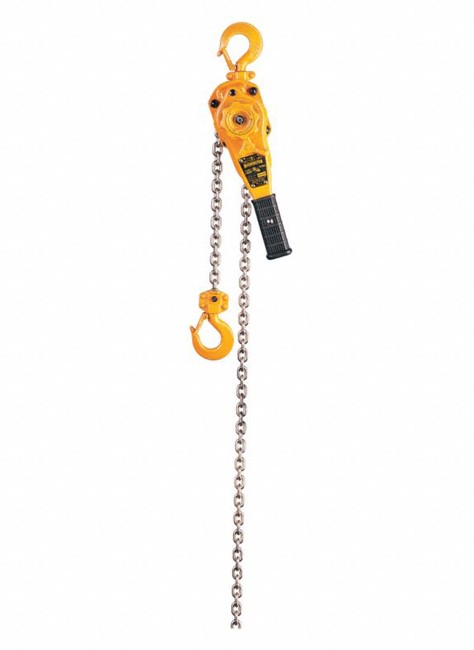

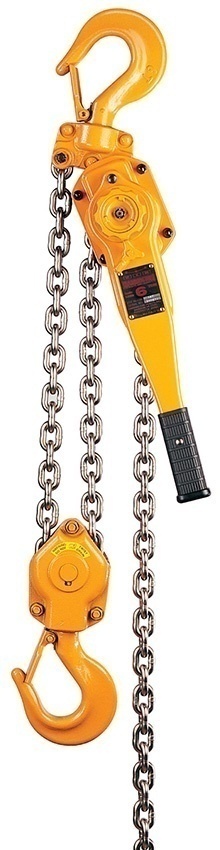

Harrington LB Heavy Duty Lever Hoist

The Harrington LB Heavy Duty Lever Hoist features a nickel-plated chain lift, all-steel construction, and compact design that is ideal for tight areas. Use this lever hoist for heavy-duty construction work, mining, manufacturing, maintenance, and more.

Features:

  • Grade 100 heat-treated, nickel-plated load chain for corrosion resistance
  • Forged and heat-treated alloy steel hooks open slowly without fracturing under excessive loads
  • Top and bottom hooks rotate 360°
  • Every hoist is factory load-tested to 125% of rated capacity, in accordance with ASME B30.21 requirements (includes test certificate)
  • Rugged, all-steel construction actually weighs less than comparable aluminum models
  • Positive braking action with a Weston-style load brake, incorporating two moisture-resistant brake pads and four braking surfaces
  • Includes two brake pawls for additional reliability
  • Enjoy protection against dirt and moisture with a totally enclosed brake mechanism
  • Ensure long life with machined, heat-treated, split-load double reduction gears
  • Operate in close quarters with short steel handle and 15-degree recovery strokes
  • Patented spring-loaded freewheel mechanism allows easy adjustment of the load chain and safeguards against accidental freewheeling under load
  • Equipped with standard rubber grip for non-slip operation

Available Options:

  • LB008-10: 3/4 Ton Capacity, 10' Lift
  • LB008-15: 3/4 Ton Capacity, 15' Lift
  • LB008-20: 3/4 Ton Capacity, 20' Lift
  • LB015-10: 1-1/2 Ton Capacity, 10' Lift
  • LB015-15: 1-1/2 Ton Capacity, 15' Lift
  • LB015-20: 1-1/2 Ton Capacity, 20' Lift
  • LB030-10: 3 Ton Capacity, 10' Lift
  • LB030-20: 3 Ton Capacity, 20' Lift
  • LB060-10: 6 Ton Capacity, 10' Lift
C-HH-LB008-10
Manufacturer: Harrington Hoists and Cranes
HH-LB008-10
HH-LB008-15
HH-LB008-20
HH-LB015-10
HH-LB015-15
HH-LB015-20
HH-LB030-10
HH-LB030-15
HH-LB030-20
HH-LB060-10
