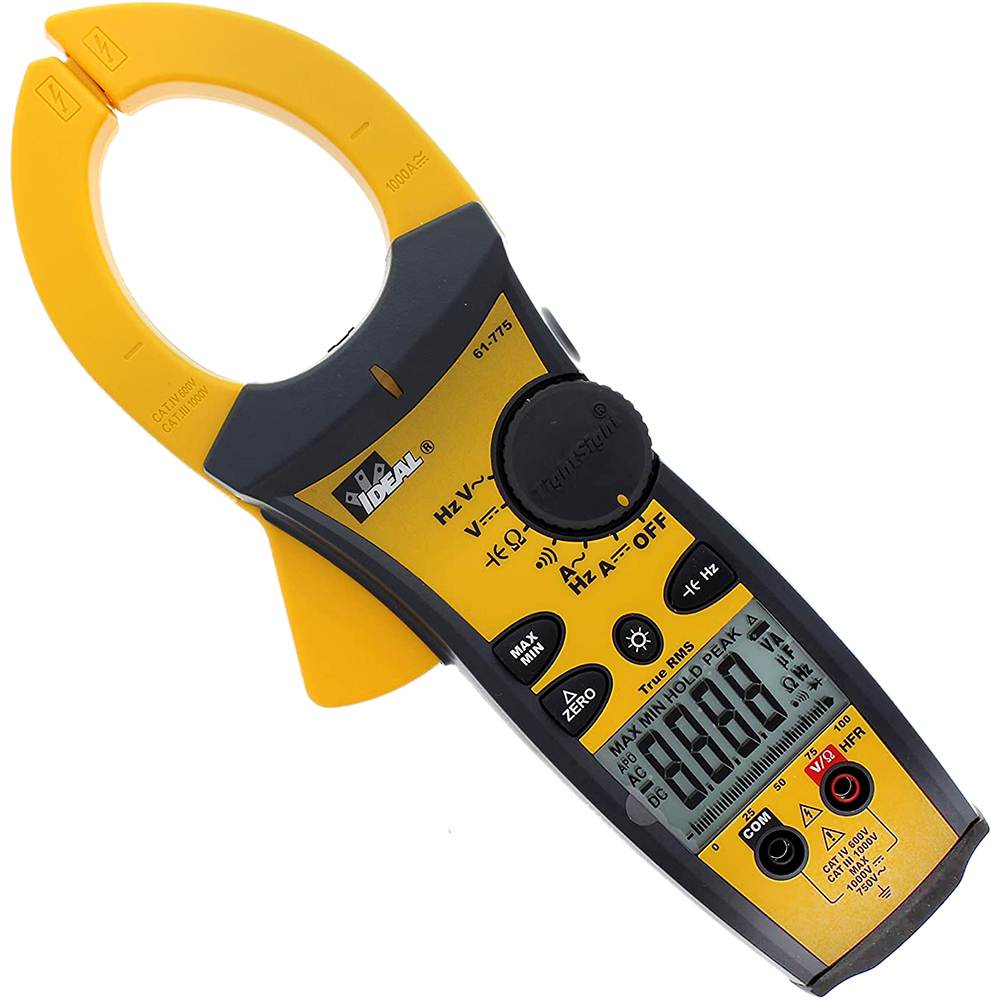

Ideal Industries 1000A AC/DC TRMS TightSight Clamp Meter

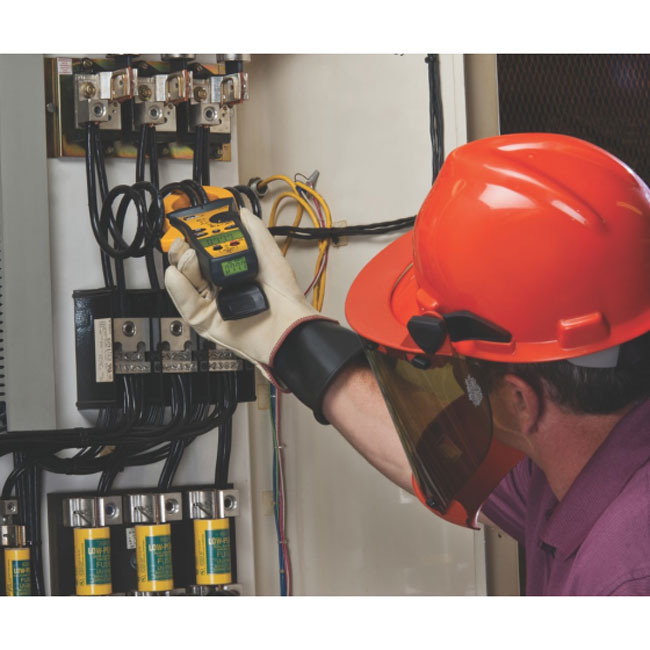

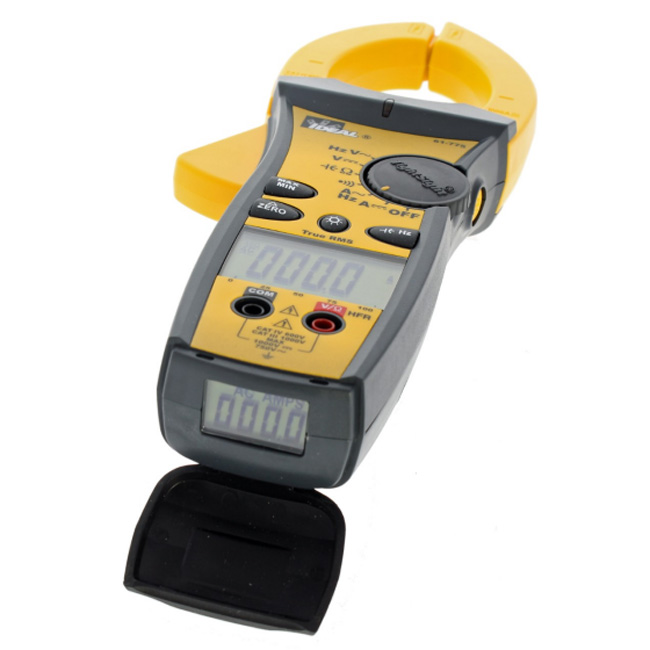

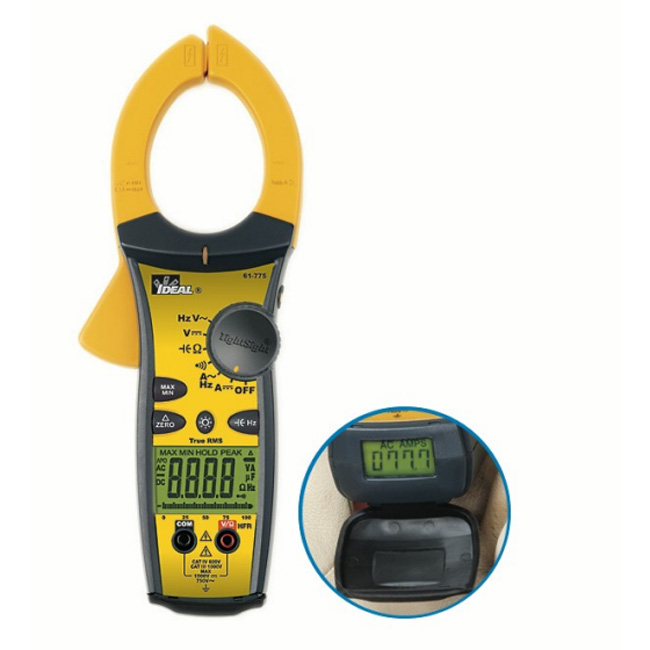

This meter allows the user to safely and easily view current measurements with the exclusive second TightSight display. The tool incorporates safety, productivity, and value in one convenient package. With a patented TightSight display that lets you easily take readings while keeping your head at a safe distance from the panel — no more need to twist the meter or risk pulling on an energized conductor. Easy to read backlit display with large numbers and icons so you can always see the correct reading. Selectable audible and visual alerts when potentially hazardous voltages are detected at the probe terminals. Electronic overload protection on all ranges and the test leads are compliant to IEC61010-031 compliant.

The clamp design allows you to read and record while clamped instead of holding the reading, unclamping, moving and recording. The hook tip makes it easier to separate wires and tapered jaws for reaching into tight spaces. This allows for easier troubleshooting with min and max value readings over a period, i.e. nuisance tripping and power supply fluctuations. The true RMS provides accurate readings of non-sinusoidal load currents. Enabling a broad current range from 0 to 1000 amps (61-770 series) covers multiple applications.

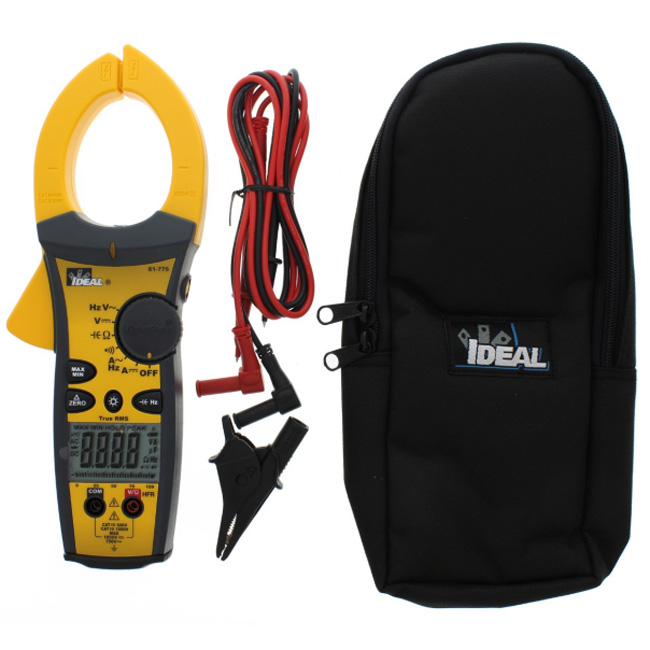

Includes carrying case and test leads with alligator clips. Full AC/DC capabilities: the Tightsight is equally adaptable for both AC and DC current measurement requirements – such as solar, public transportation, and battery backup applications.

Features:

• TightSight second display
• Tapered jaws with hook tip
• True RMS current and voltage
• AC/DC voltage
• Audible continuity
• High frequency rejection
• Peak hold
• Max/min hold
• Data hold
• Selectable audible and visual alerts when potentially hazardous voltages are detected at the probe terminals
• Selectable auto power off
• Backlit display
• Low battery indicator
• Reads accurately on noisy electrical circuits
