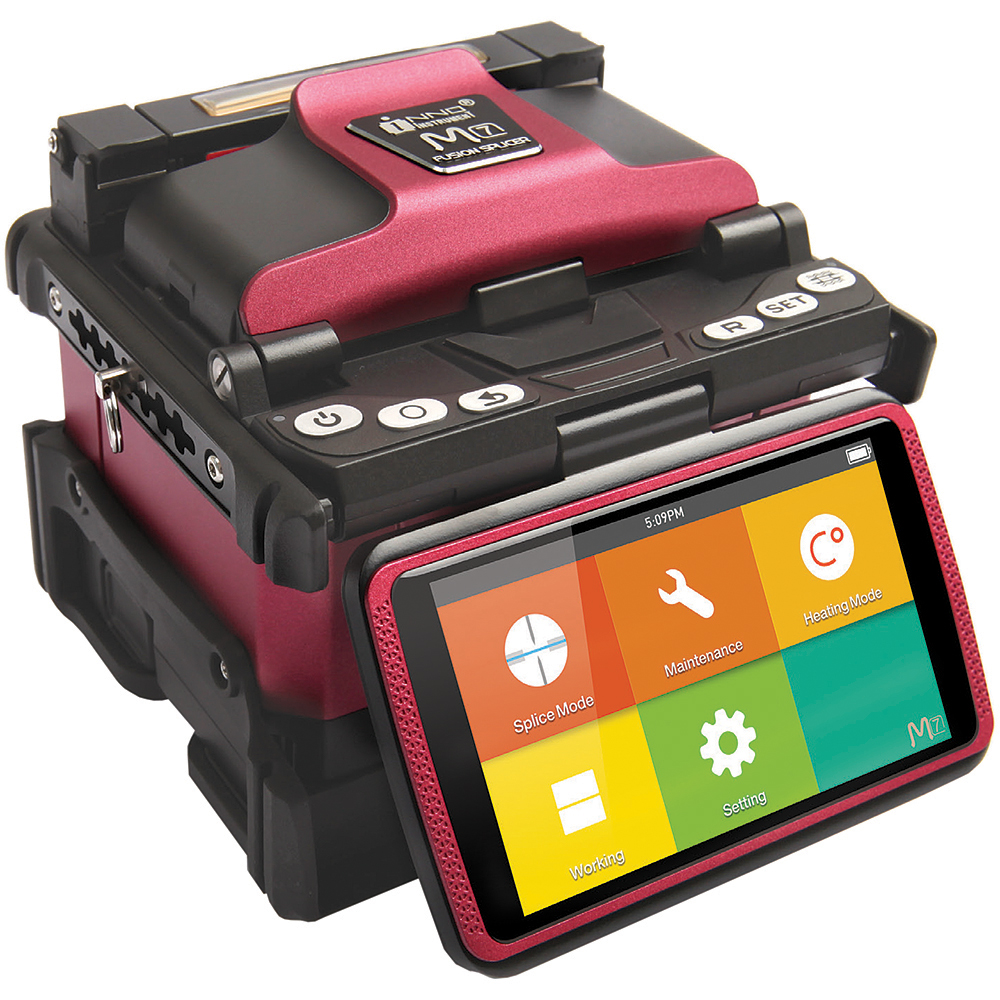

Inno Instrument M7 Hand-Held Fiber Optic Fusion Splicer Kit

The Inno M7, an active clad-alignment splicer with ultra-portable design, is the most efficient fusion splicer in the market. This small but accurate fusion splicer inherits many remarkable functionalities from sister products. M7’s 4.3 inch high-resolution color LCD touch screen with user-friendly intuitive GUI(Graphic User Interface) offers large and clear fiber images to users. Moreover, the adjustable strap hanger make users to customize M7 for their working condition.

Features:

• Long Life Electrode
• Truly Light Weight and Handy Size
• Active V-Groove Clad Alignment Splicing Method
• 2 Bright LEDs for Dark Environment
• 4.3 inch color LCD Touch Screen
• Ceramic clamp for improved durability
• Detachable heat oven for SOC
• Splicing Time:   7 sec average (quick mode) / 9 sec average (SM auto mode)
• Heating Time:   13 sec (45mm, slim 60mm), 15 sec (60mm)
• Number of Fiber:   single
• Fiber View & Magnification:   300X magnification with 3 display modes, 400X partial magnification
• Dimension:   135W x 125D x 125H mm (including rubber bumper)
• Display:   touch screen / button

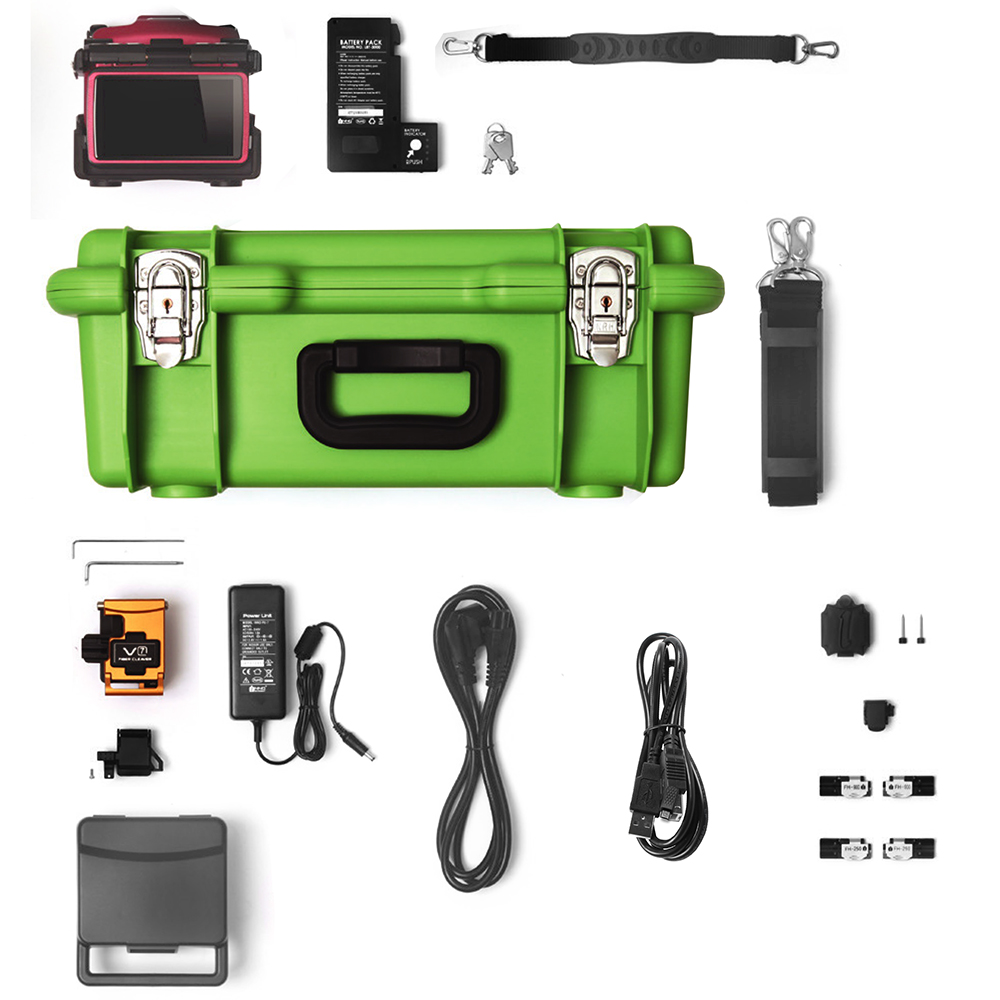

Included:
