ISC HaulerBiner Compact Haul Kit

The ISC HaulerBiner Compact Haul Kit is a pulley system that offers a 6:1 or 7:1 mechanical advantage. The HaulerBiner is lightweight, compact, and efficient, making it ideal for rope access, tower climbing, and other industrial rescue applications. Use the HaulerBiner as part of a pickoff system, haul system, or a tensioning system. The pulley wheels are mounted in the body of the carabiner to prevent it from jamming and to allow maximum haul height.

Specifications:

• Rope Diameter: 6 mm (1/4 in) for strength and grip
• Fully rated for lifting people - Number of Persons: 1

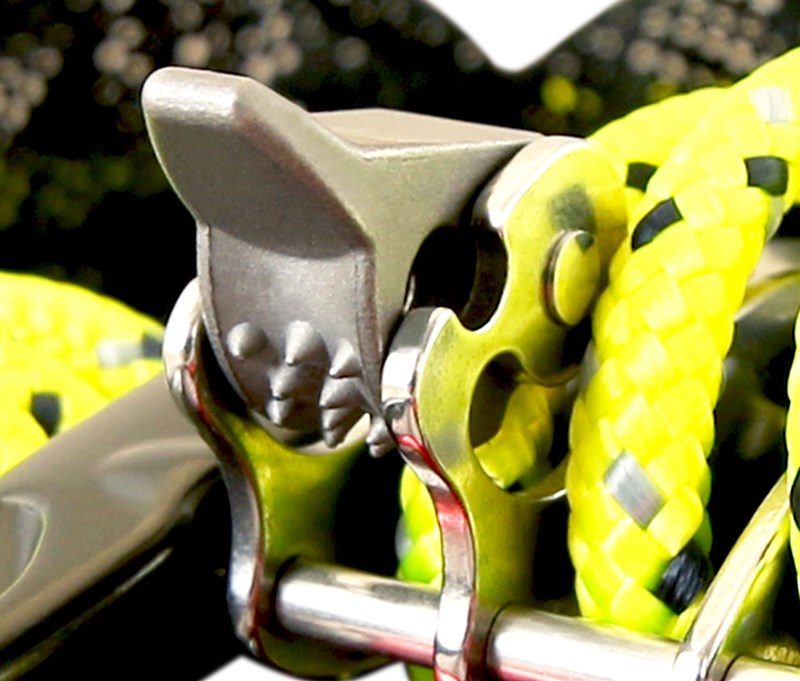

• Purpose-designed progress capture cam with an ‘on/off’ position

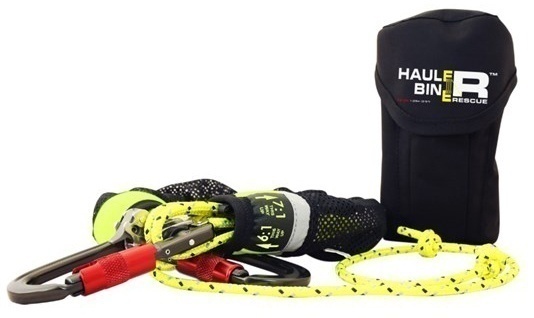

• Kit is supplied in a two-pouch bag, for easy deployment
• Safe Working Load: 308 lbs (140 kg)
• Minimum Breaking Strength: 3,596 lbf (16 kN)
• Body Finish: Anodized
• The length of the system, when fully contracted is only 32cm (12")

Applications:

• As part of a pick-off system
• On a structure, pull down on the system and achieve a 6:1 (theoretical) MA
• When suspended in a harness, pull up on the system and achieve a 7:1(theoretical) MA
• With a D4/D2 Descender, as part of a short-haul / long-lower system
• As a tensioning system for short/low load lines
• As a stretcher management device, using two or more HaulerBiners to easily change or adjust the orientation of the stretcher

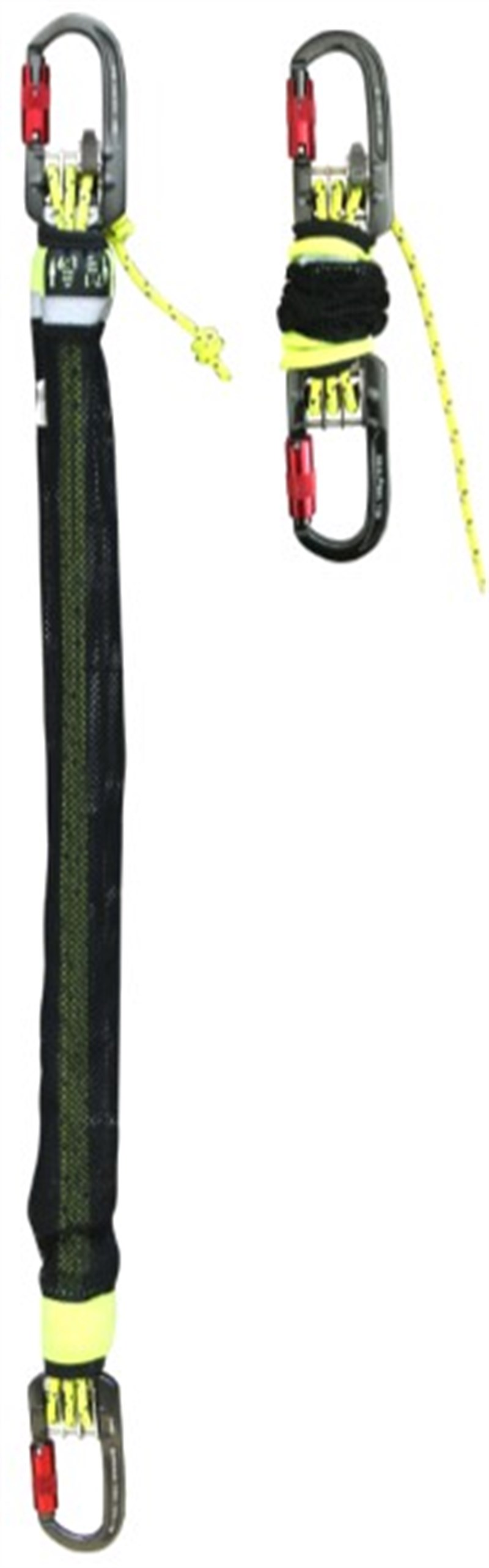

Lengths:

• 3' 7" / 105 cm (HB105A)
• 5' 5" / 165 cm (HB165A)
• 9' 10" / 300 cm (HB300A)
