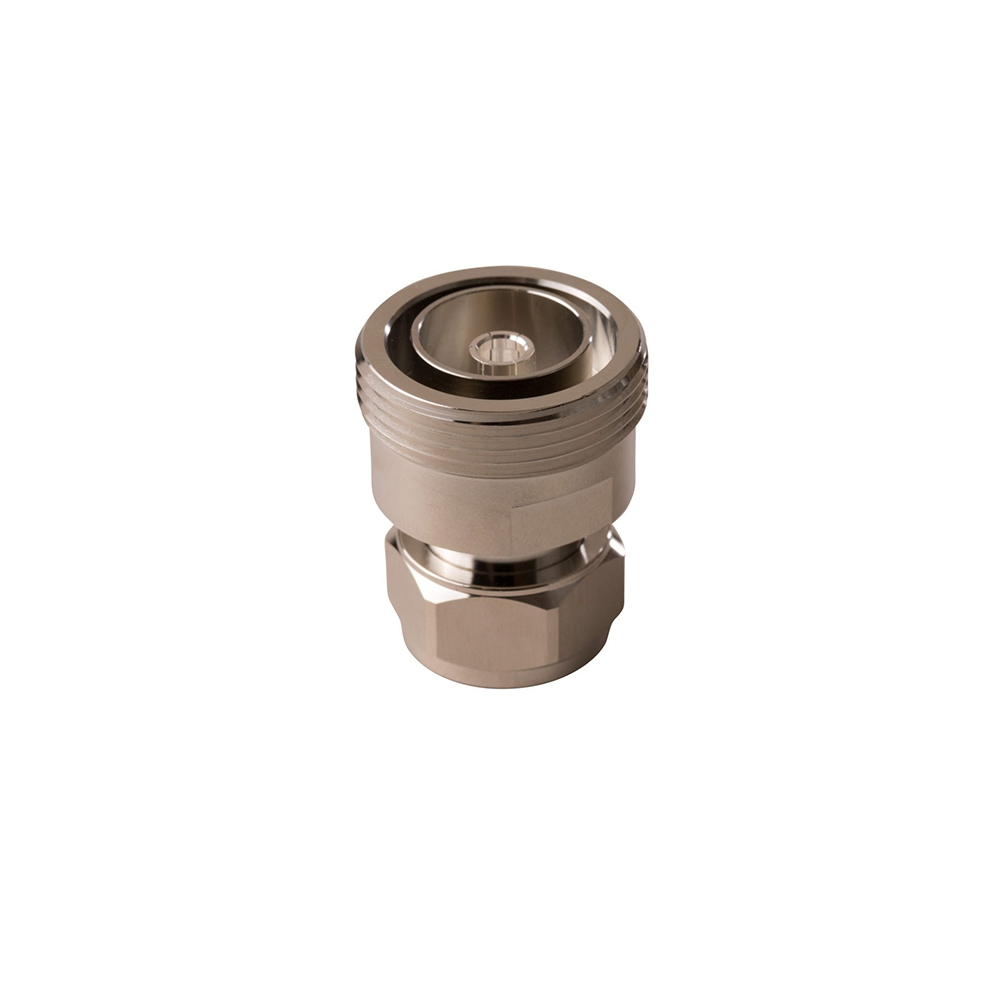

Izzy Industries 4.1-9.5 Mini Adapter DIN Male to DIN Female

The Izzy Industries RF Low PIM Coaxial Adapters are available in tri-metal plating.

Specifications:

• Article No.: ESTZJT-M-004-G-0006-D/A
• Frequency range: DC to 4GHz
• Impedance: 50±1.5Ω
• VSWR≤1.15
• 3rd Order PIM: ≥-155dBc
• Dielectric Resistance: ≥5000MΩ
• Connector Type: Din male – Din female
• Waterproof degree: IP67
• Moisture resistance: IP67
• Mating cycles: ≥500
• Operating temperature range: -40°C~+85°C
• Storage temperature range: -40°C~+85°C
