Jonard Mid Span Slit and Ring Tool for RocketRibbon Cable (11.6 mm-22.6 mm)

The MS-836 Mid Span Slit & Ring Tool is designed to provide easy access to optical ribbon fibers in Corning's RocketRibbon cable. Building on the popularity of the Jonard Tools MS-6 and MS-26 Fiber Optic Mid Span Slitting Tools, Jonard has incorporated a ring feature to make it even more versatile.

Features:

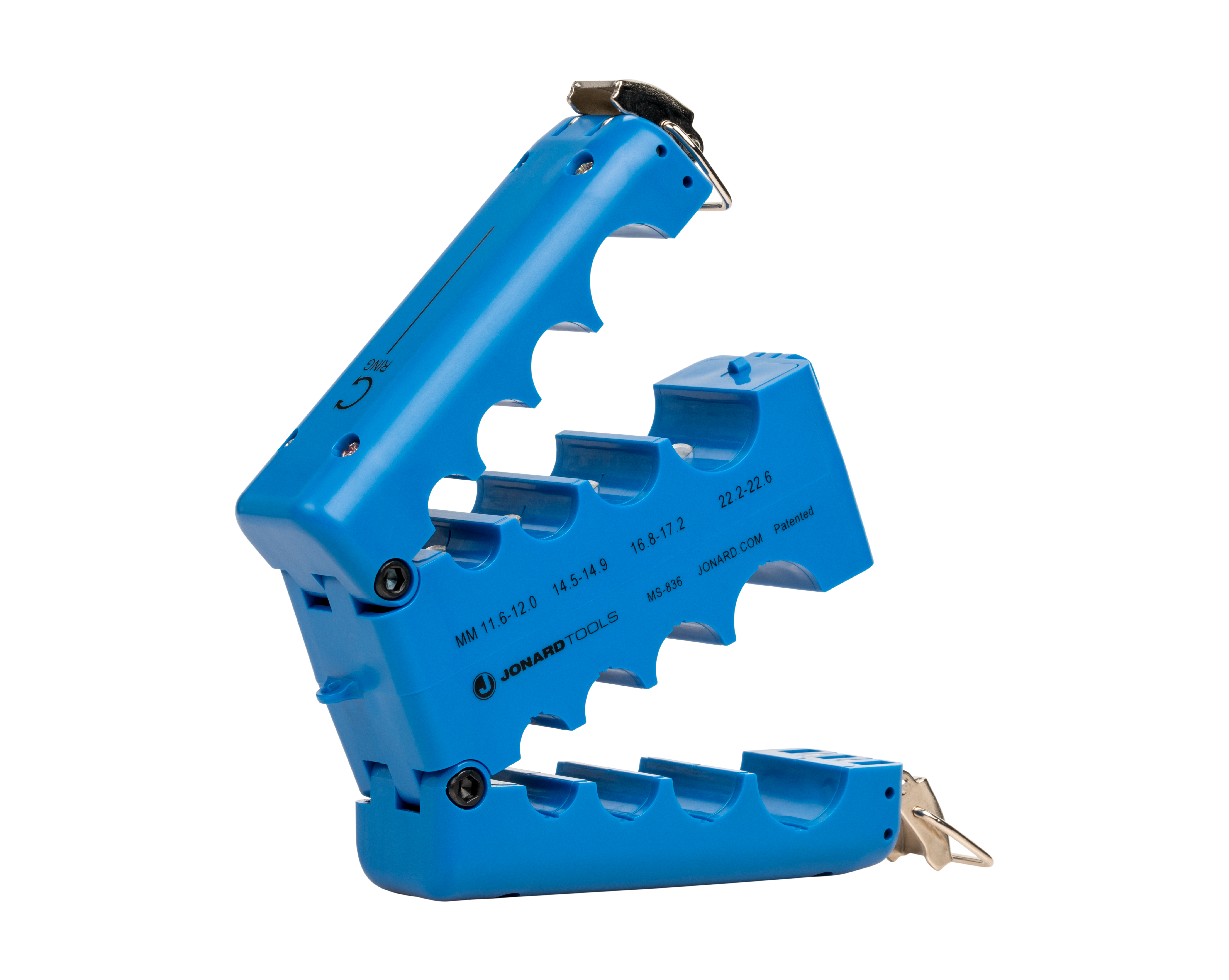

• Consists of 4 precision slitting grooves and 4 precision ring grooves ranging in size from 11.6 mm to 22.6 mm
• Compact design weighing less than 0.69 lb (311 g) with included tethering hole makes it perfect to use in tight spaces or on the go

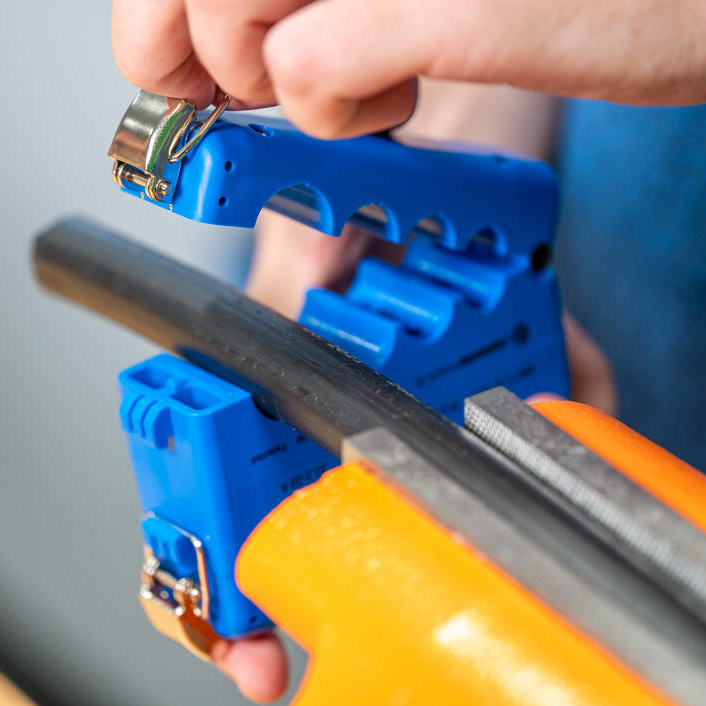

• One side of the tool performs radial/ring cuts and the other side slits the cable (longitudinal cut)
• The indicator line on top of the unit indicates the position of the blade for accurate slitting and ringing
• This tool was specially designed for use on Corning RocketRibbon cables

Replacement blade set available, part number: MS-836RB

Blades last for 5,000 slits or rings

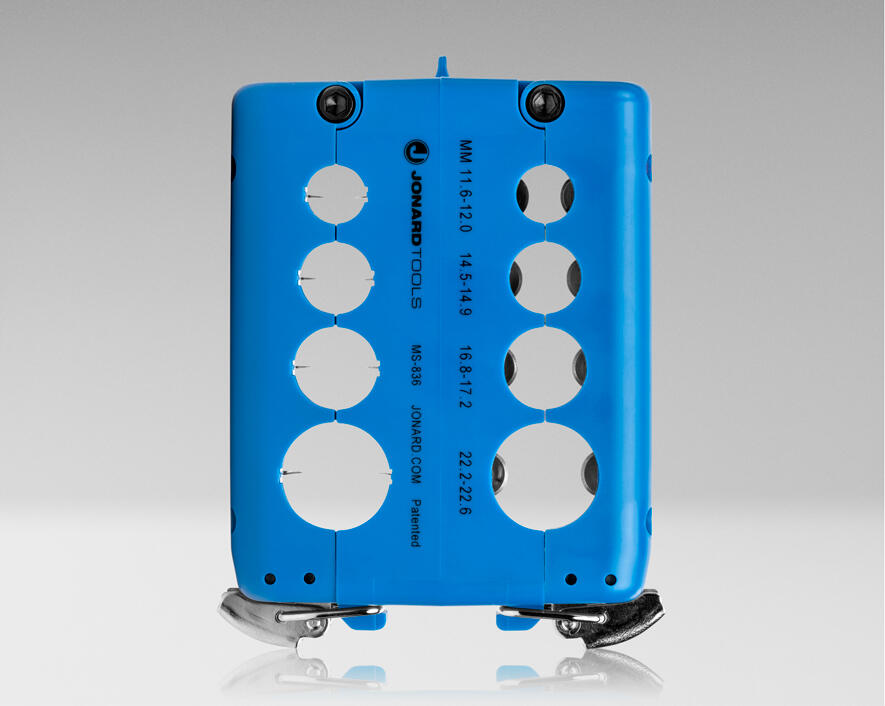

Groove Sizes:

• 11.6 mm-12.0 mm
• 14.5 mm-14.9 mm
• 16.8 mm-17.2 mm
• 22.2 mm-22.6 mm
