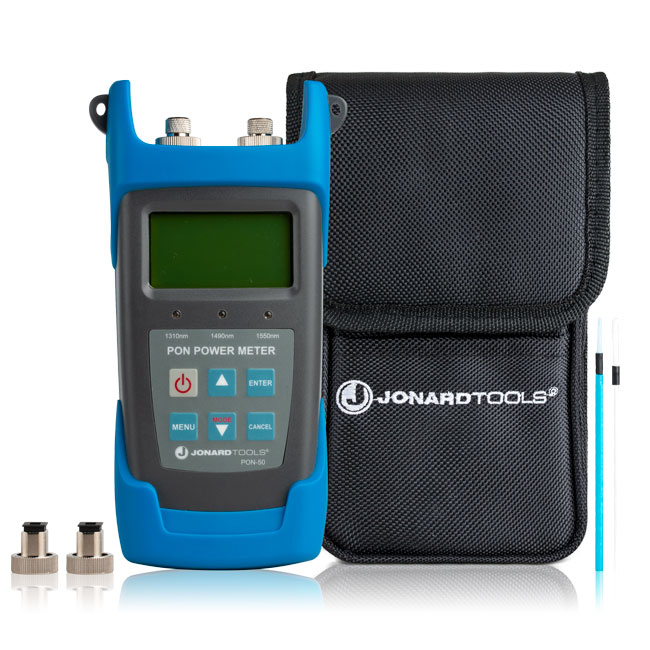

Jonard Passive Optical Network Power Meter ( BPON/EPON/GPON)

Designed to perform live testing with OLT equipment, this PON Power Meter is perfect for use during FTTx/PON service tune-up or maintenance. It is able to simultaneously test and measure the signal power of voice, data, and video connections, and is essential for the construction and maintenance of PON systems.

Features
• Analyzes voice, data, and video signals in BPON/EPON/GPON FTTx systems
• Concurrently measures 1310 nm, 1490 nm, and 1550 nm wavelengths anywhere in the network
• Three pass, warning, and fail LED indicators to allow you to quickly assess your network's power level
• Supports 1310 nm Upstream Burst Signal and 1490/1550 nm Downstream Signal Measurements
• USB port allows quick transfer of data, and up to 1,000 measurement items can be saved at once
• Optional 10 minute auto-off can be activated or deactivated
• Shatter-resistant sleeve protects it from accidental falls or other damage
• Included software allows you to set the thresholds, transfer data, and calibrate the wavelength from your PC



Specifications
• Network Types:  BPON/EPON/GPON
• Connector Types:  FC/SC
• Wavelengths:  1310 nm, 1490 nm, 1550 nm
• Measurement Range:  -40 dBm~+10 dBm @ 1310/1490 nm, -40~+20 dBm @ 1550 nm
• Max Output Power:  15 dBm @ 1310/1490 nm, 25 dBm @ 1550 nm
• Detector Type:  InGaAs
• Connatural Uncertainty (dB):  ±0.5 dB
• Linearity (dB):  ±0.1 dB
• Batteries:  (3) 1.5V AA
