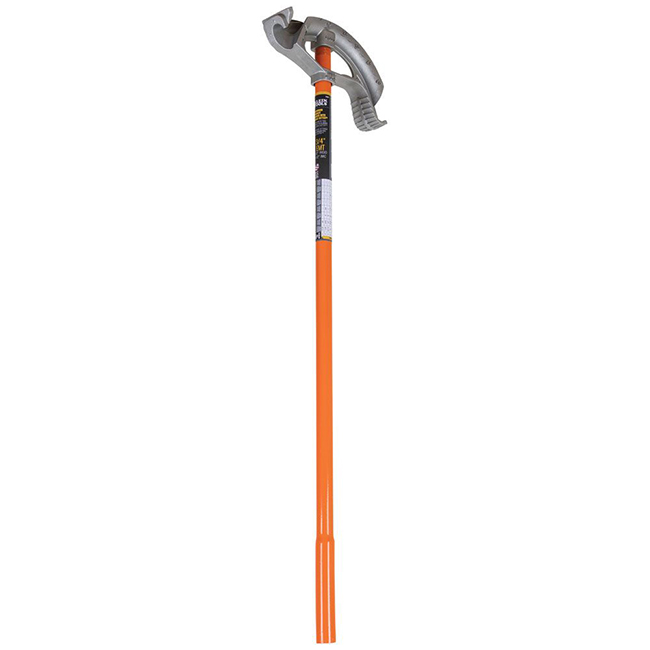

Klein Tools Aluminum Conduit Bender Full Assembly with Angle Setter

Aluminum Conduit Bender 3/4-Inch EMT with Angle Setter. Klein Tools’ conduit benders with Patent Pending Angle Setter technology allow for quick, accurate repeated bends. The wide foot pedal provides excellent stability and features angled grooves for extra traction. With easily visible bold cast-in benchmark symbols, degree scales and multiplier scales help save time on the job.

Features:

• 3/4-Inch assembled Aluminum Bender includes Klein’s unique Angle Setter technology for time-saving, repeated accurate bends; Patent pending Angle Setter for use on 10-, 22.5-, 30-, and 45-Degree bends (adjusted for conduit spring back)

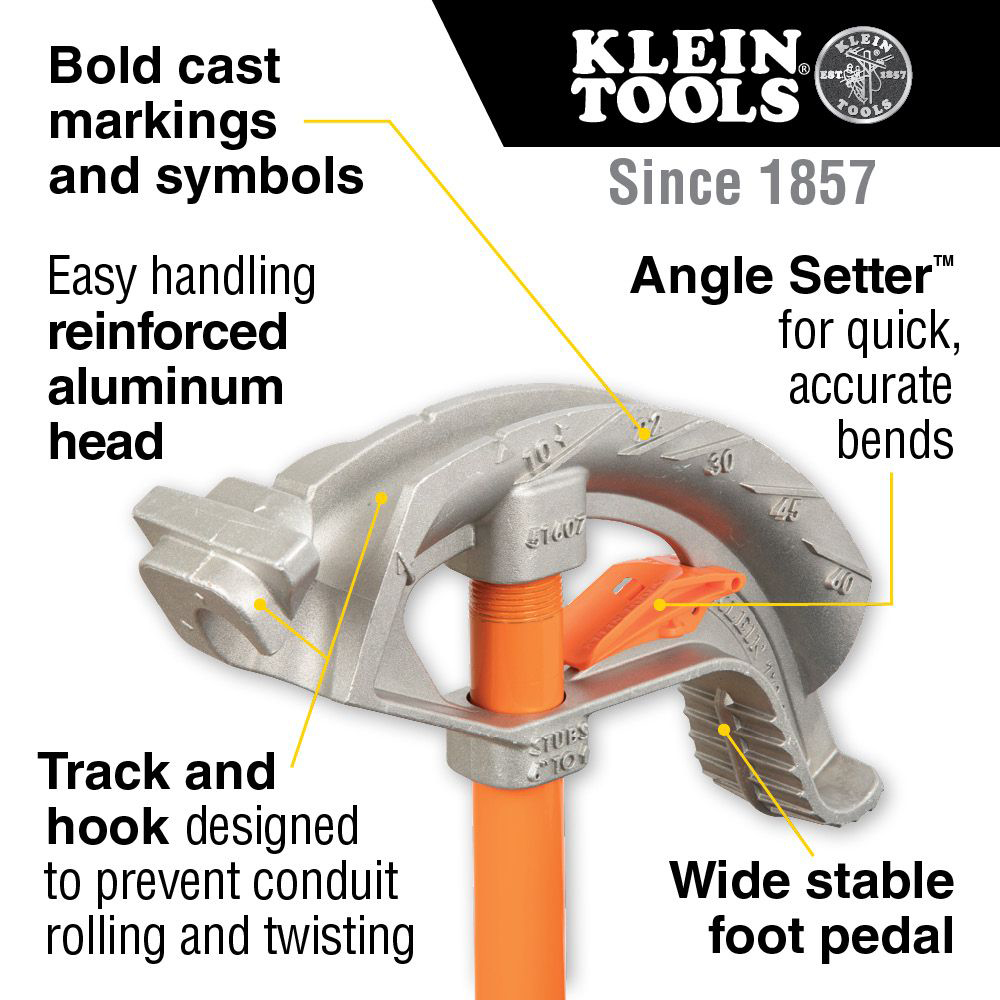

• Easy handling aluminum head is reinforced for added strength

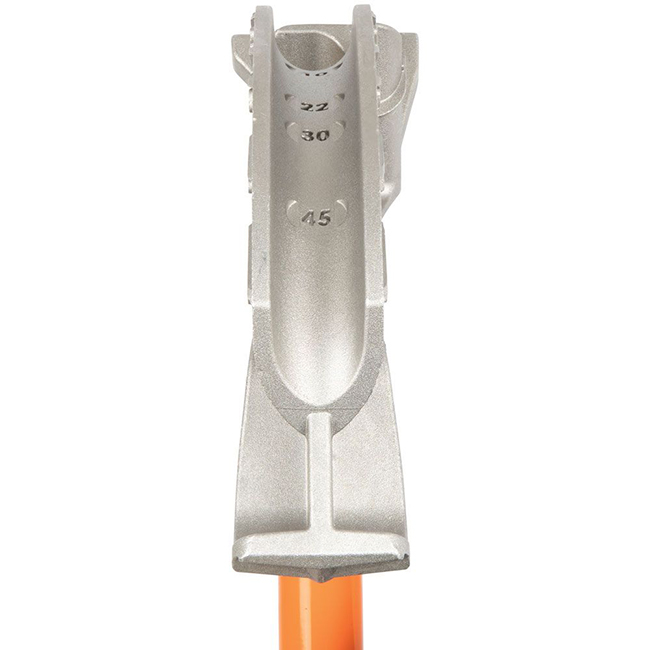

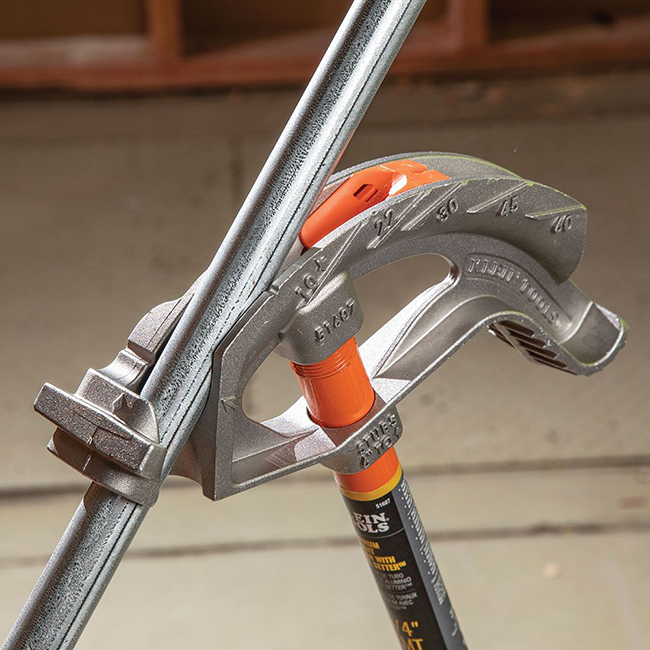

• Bold cast markings and symbols make for fast, easy conduit alignment to make all bend types, including saddle and back-to-back bends

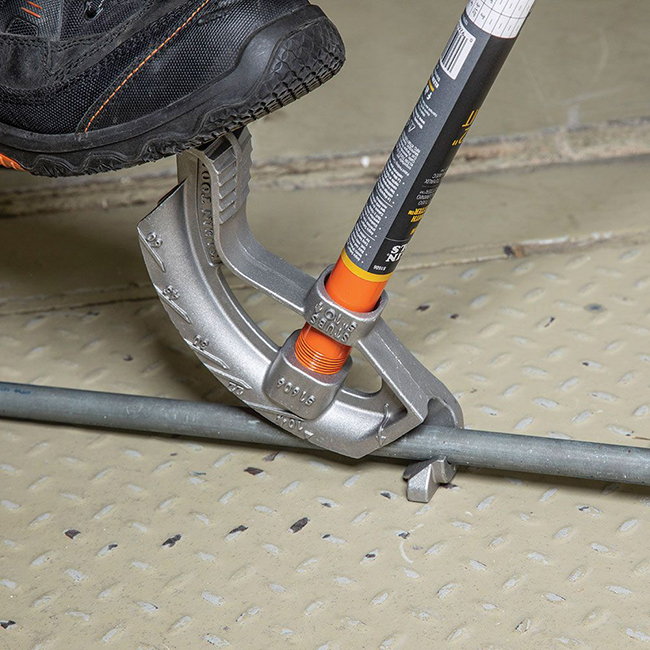

• Wide foot pedal provides excellent stability, leverage, and comfort
• Interior hook surface prevents conduit from rolling or twisting during bends

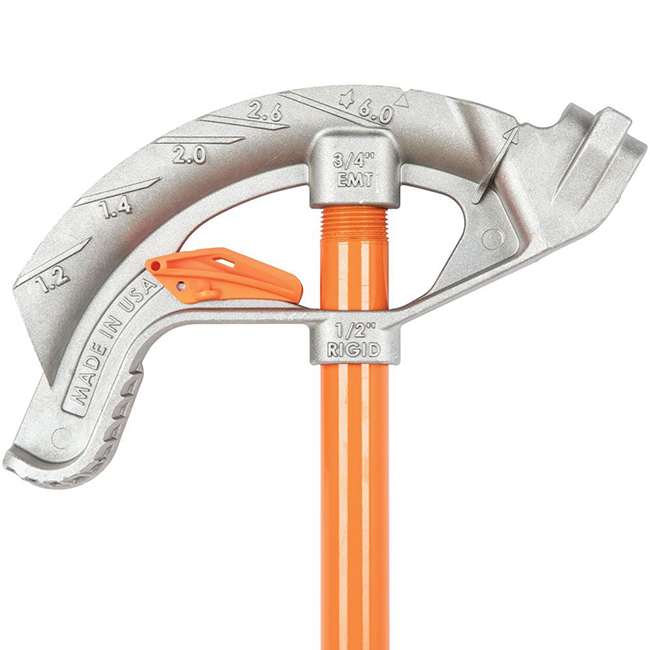

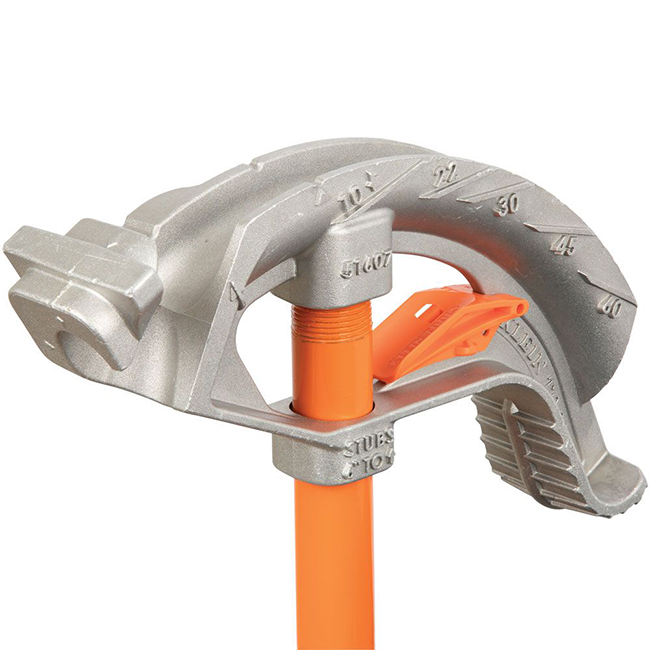

• Includes markings for 10-Degrees, 22.5-Degrees, 30-Degrees, 45-Degrees, 60-Degrees and corresponding offset multipliers

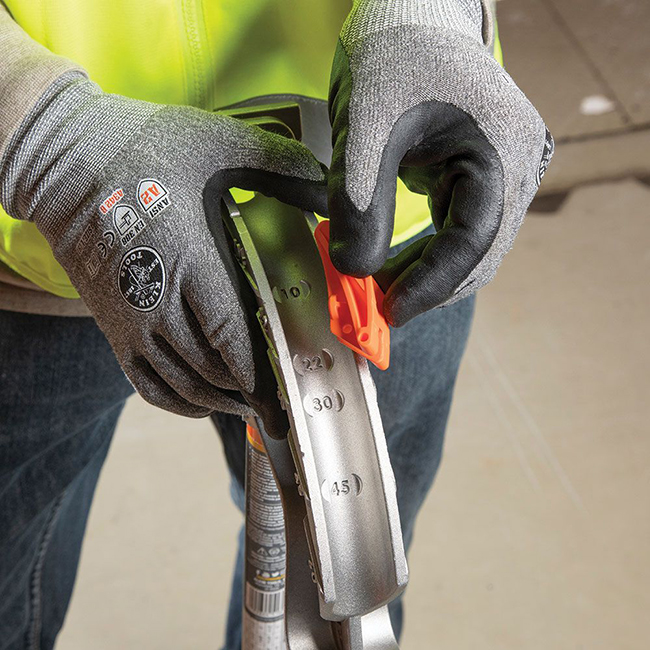

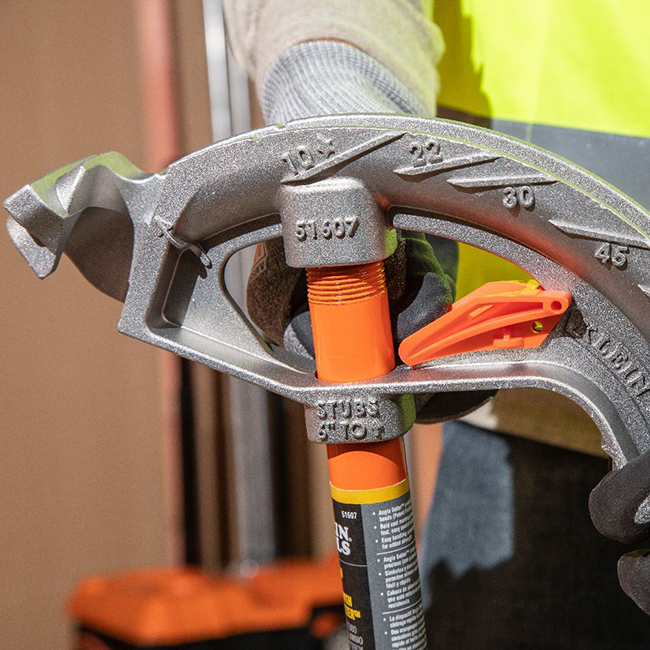

• Compatible with Klein’s 3/4-Inch Angle Setter (Cat. No. 51612) creates a hard stop for quick, accurate, and consistent bends

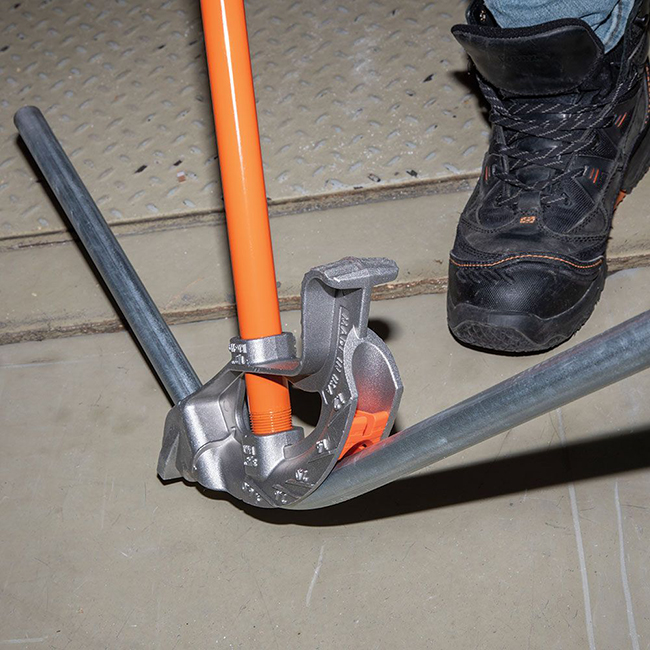

• Designed to bend 3/4-Inch EMT, 1/2-Inch Rigid and 1/2-Inch IMC conduit

Specifications:

• Type:   Aluminum Conduit Bender
• Application:   Bending Conduit
• Special Features:   Patent Pending Angle Setter Technology
• Overall Length:   1.9” (4.8 cm)
• Overall Height:   44.1” (112.0 cm)
• Overall Width:   9.8” (24.8 cm)
• Material:   Aluminum
• Handle Length:   38'' (96.5 cm)
• Stub-Up Height:   6” (15.2 cm)
• Thinwall/EMT:   3/4” (1.9 cm)
• Rigid/IMC:   1/2” (1.3 cm)
• Conduit Size:    3/4''
• Conduit Type:   EMT
• Marking:   10°, 22°, 30°, 45°, 60°
• Included:   51427 Aluminum Head, Handle; 51612 Angle Setter
• Weight:   4.9 lb (2.2 kg)
• UPC:   092644516078
