Home > Lifting & Rigging > Hardware > Klein Tools Chicago Grip for High-Strength Cable

Model#: 1684-5F

Stock#: KT-1684-5F

Catalog#: 34NC

UPC/GTIN/EIN: 092644479465

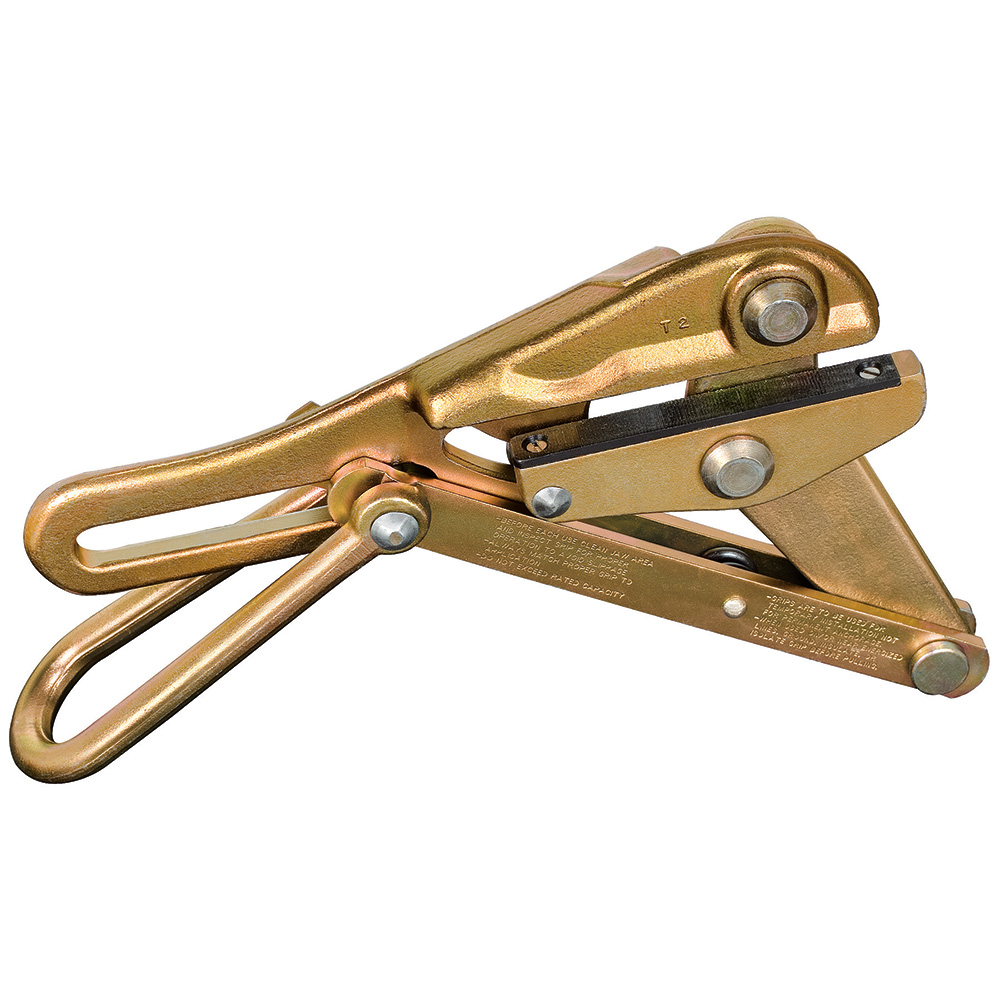

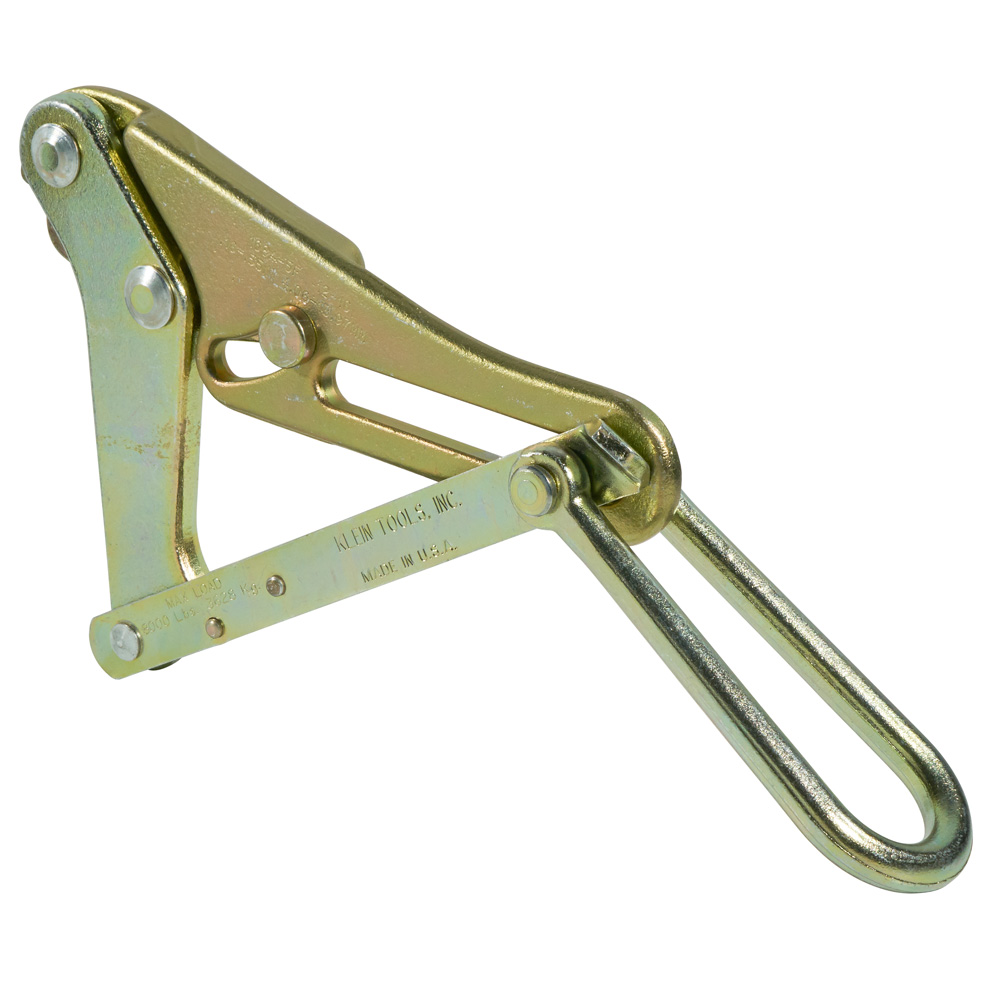

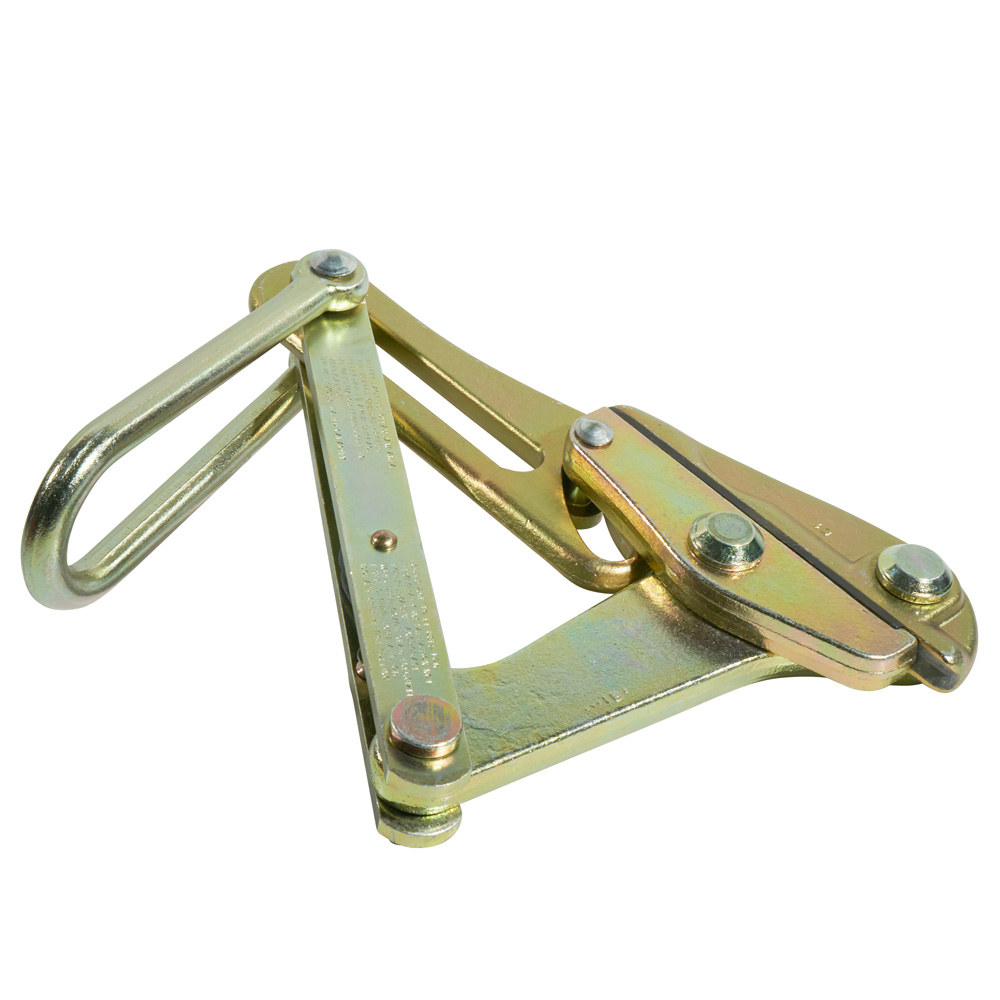

Klein Tools Chicago Grip for High-Strength Cable

KT-1684-5F

$707.99 Sale price: $707.99

THIS ITEM SHIPS FOR FREE!
This item qualifies for Quick Ship. Quick ship items typically ship out the same day you order them as long as the order is placed before 6pm EST, Monday through Friday. Get it by Oct 09

  • Designed for cable sizes from 0.16-Inch (4.06 mm) to 0.55-Inch (13.97 mm)
  • Double V grooves give four-point contact, reducing the chance of slipping and providing proper alignment of wire and cable
  • For larger conductors, see our grips with round inside-jaw contour

Klein Tools Chicago Grip for High-Strength Cable (1684-5F)

Designed for use on aluminum, copper, weatherproof coated wire, PVC-covered conductors, and messenger and guy strands. The Chicago style grip was designed for cable sizes from 0.16-Inch to 0.55-Inch (4.06 - 13.97 mm). Double -InchV-Inch grooves give four-point contact, reducing the chance of slipping and providing proper alignment of wire and cable.

Features:

  • Designed for cable sizes from 0.16-Inch (4.06 mm) to 0.55-Inch (13.97 mm)
  • Double V grooves give four-point contact, reducing the chance of slipping and providing proper alignment of wire and cable
  • For larger conductors, see our grips with round inside-jaw contour
  • Locking handle keeps jaw open while the grip is placed on cable with a hot stick
  • Made in the USA
  • Similar to Cat. No. 1684-5 except with a file inserted in the jaw for extra gripping power. Replacement file No. 578 and screws No. 573 are also available

Specifications:

  • Type: Chicago Grip
  • Application: Wire Pulling
  • Special Features: Removeable file (Replacement file Cat. No. 578 and screws Cat. No. 573)
  • Cable Type: Aircraft, EHS, Messenger, Guy Strand
  • Cable Diameter: 0.16'' to 0.55'' (4.06 to 13.97 mm)
  • Hot Latch: N
  • Swing Latch: N
  • Spring: Y
  • Locking Handle: Y
  • Jaw Type: Single V with File Insert
  • Jaw Length: 5'' (12.7 cm)
  • Maximum Safe Load: 8000 lb (3629 kg)
  • Weight: 6.4 lb (2.9 kg)
  • UPC: 092644479465

Other Available Grips:

Type Part Number Diameter Cable Type Max Safe Load
Haven's Grip 1604-20L .125" - .5" Messenger, Guy Strand 5000 lbs
Haven's Grip 1625-20 .28" - .75" Wire Rope 8000 lbs
Chicago Grip 1613-40 .12" - .37" Aircraft, EHS, Messenger, Guy Strand 4500 lbs
Chicago Grip 1628-18 .75" - 1.0" Aircraft, EHS, Messenger, Guy Strand 15,000 lbs
Chicago Grip 1628-17 .50" - .75" Aircraft, EHS, Messenger, Guy Strand 15,000 lbs
Chicago Grip 1628-16 .31" - .62" Aircraft, EHS, Messenger, Guy Strand 15,000 lbs
Chicago Grip 1684-5C .218" - .55" Aircraft, EHS, Messenger, Guy Strand 8000 lbs
Parallel-Jaw Grip 1685-20 .157" - .875" Messenger, EHS, Coated 4500 lbs
Parallel-Jaw Grip 1685-31 .625" - 1.25" Messenger, EHS, Guy Strand 7500 lbs
Chicago Grip 1613-35 #8 AWG Bare Copper - #6 AWG Bare Copper Copper 4500 lbs
Parallel-Jaw Grip with Hot Latch KT4602 .30" - .80" ACSR 10,000 lbs
Chicago Grip 1684-5 .218" - .55" Aircraft, EHS, Messenger, Guy Strand 8000 lbs
Chicago Grip 1692-5 .218" - .55" Aircraft, EHS, Messenger, Guy Strand 8000 lbs
Haven's Grip 1625-20 1 .50" - 1.0" Wire Rope 8000 lbs
Chicago Grip with Curved Jaw-Grip 1684-74 .218" - .55" Aircraft, EHS, Messenger, Guy Strand 8000 lbs
Chicago Grip 1684-5F .16" - .55" Aircraft, EHS, Messenger, Guy Strand 8000 lbs
Haven's Grip 1625-20-7/8 .38" - .88" Wire Rope 8000 lbs
Parallel Jaw Grip with Hot Latch KT4802 .70" - 1.25" ACSR 12,000 lbs
Chicago Grip with Hot-Line Latch 1684-5H .218" - .55" Aircraft, EHS, Messenger, Guy Strand 8000 lbs



KT-1684-5F

Country of Manufacture: United States
Manufacturer: Klein Tools
Type: Chicago Grip
Working Load Limit (WLL): 8000 lbs
Weight: 6.36
