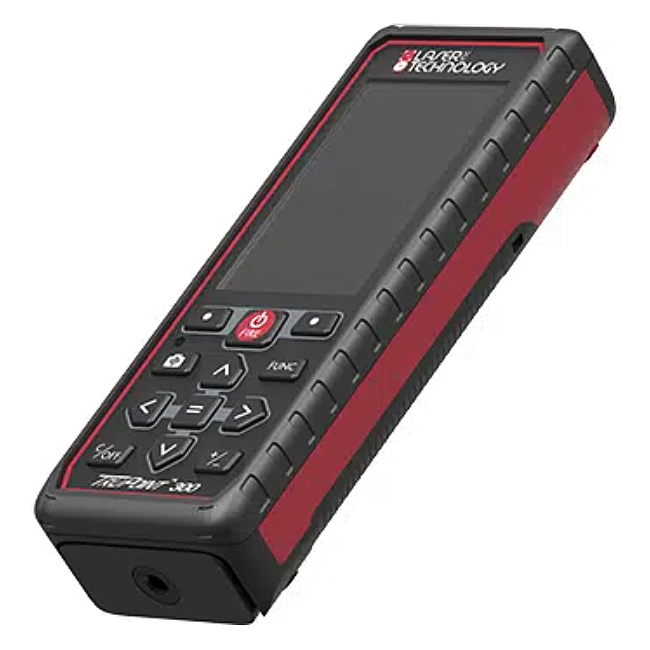

Laser Tech TruPoint 300 Total Station Laser Measurement Tool

The TruPoint 300 is the laser measurement tool that professionals worldwide have been waiting for. This ground-breaking product is a small, lightweight and compact total station ideal for use in GIS, Surveying, Construction, and Electric Utilities to name a few.

This mini total station is a powerhouse delivering survey-grade accuracy, onboard data storage and calculations, measures distance, inclination and horizontal angles for X, Y, Z coordinates. Additionally, an integrated camera allows you to take a photos that are tagged to your point measurements, and a red-dot aiming assist ensures you capture the right measurements. You no longer need to carry around multiple heavy and complicated tools. The TruPoint 300 total station is the go-to tool for collecting all the measurements you need quickly, easily, and safely.

Features:

• Both Bluetooth Smart and WIFI connectivity to computers and smart devices
• 4x Zoom Camera
• Collects and stores 3D measurement coordinates using the Data Capture in DXF Function
• Point Data Recall
• Integrated red dot visual indicator and high powered camera help guarantee what you aim at is what you measure, every time
• Easily obtains missing line measurements between two points at any angle using on-board solutions
• Measurement Data Collected in DXF Format

Specifications:

• Range Accuracy to Typical Targets:   ± 1 mm (0.04 in)
• Range Limits:   0.05 up to 300 m (0.16 to 1000 ft)
• Angle Accuracy:   ± 0.1° Horizontal and Vertical
• Angle Limits:   360° Horizontal, -40° to 80° Vertical
• Measuring Units:   Metric and Imperial
• TruTargeting:   Pointfinder with 4x zoom camera and red-dot laser
• Image / Camera Resolution:   Image: 800 x 600 / Screen: 240 x 400
• File Output Formats:   .jpg and .dxf
• Memory for CAD Files:   20 DXF files, each with 30 points
• Communication:   Bluetooth Smart, WLAN
• Battery Type:   Li-ion rechargeable with up to 4,000 measurements at full charge
• Charging Time:   4 hours
• Environmental:   IP54
• Operating Temperature:   -10° to 50° C (14° to 122° F)
• Tripod Mount:   1/4 – 20 thread
• Dimensions:   164 x 61 x 32 mm (6.45 x 2.4 x 1.3 in)
• Weight:   10.2 oz
