Lug-All Cable Hoist

The Lug-All Cable Hoist is an industrial grade ratchet winch hoist. It features double or single line lift capabilities. This hoist is made in the USA using 7x19 aircraft cable and is designed with an aluminum alloy main frame with open construction for easy cleaning and maintenance. This cable hoist also includes a handle that is designed to bend at 125 to 150 percent of the rated capacity, protecting you and the equipment. This hoist comes in four capacity options and they are color coded for easy identification. The 1-1/8 ton version is black, the 1-1/2 ton version is red, the 2 ton version is blue, and the 3 ton version is orange.

Available Options:

• 1-1/8 ton (2250-20)
• 1-1/2 ton (3000-30)
• 2 ton (4000-20)
• 3 ton (6000-15)

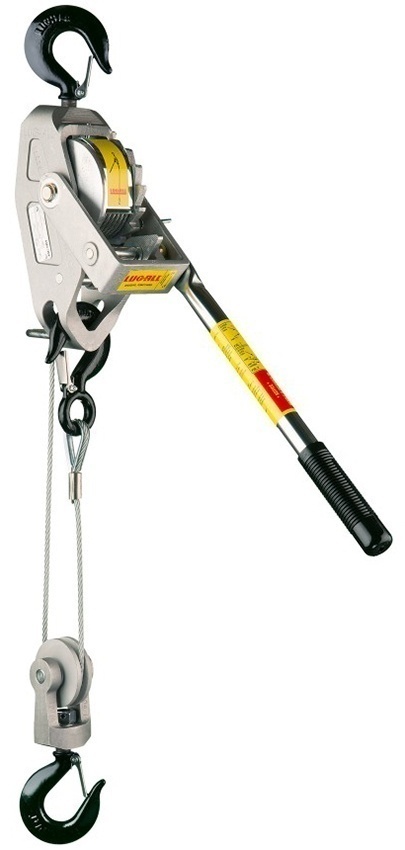

1-1/8 Ton Specifications:

• Capacity: 1-1/8 ton
• Weight: 9.25 lbs.
• Double Line Capacity: 2,250 lbs.
• Double Line Lift: 10 ft.
• Single Line Capacity: 1,125 lbs.
• Single Line Lift: 20 ft.
• Cable Diameter: 3/16 in.

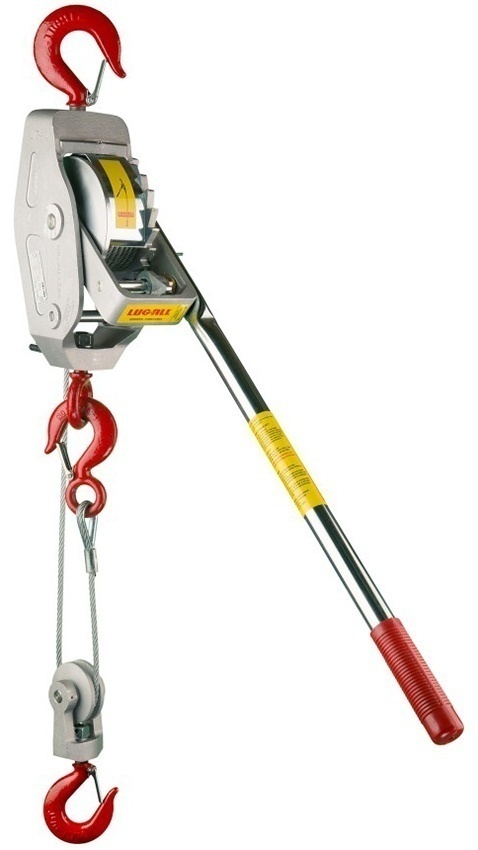

1-1/2 Ton Specifications:

• Capacity: 1-1/2 ton
• Weight: 13.75 lbs.
• Double Line Capacity: 3,000 lbs.
• Double Line Lift: 15 ft.
• Single Line Capacity: 1,500 lbs.
• Single Line Lift: 30 ft.
• Cable Diameter: 7/32 in.

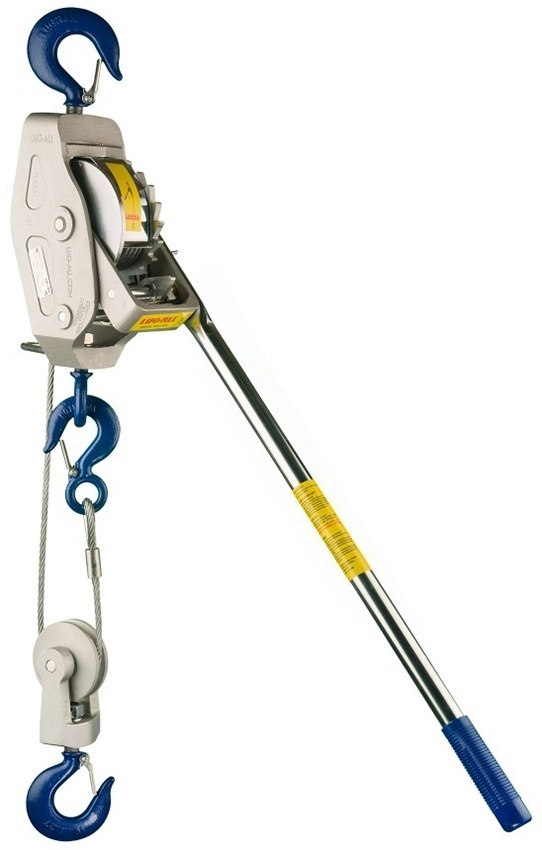

2 Ton Specifications:

• Capacity: 2 ton
• Weight: 15-1/2 lbs.
• Double Line Capacity: 4,000 lbs.
• Double Line Lift: 10 ft.
• Single Line Capacity: 2,000 lbs.
• Single Line Lift: 20 ft.
• Cable Diameter: 1/4 in.

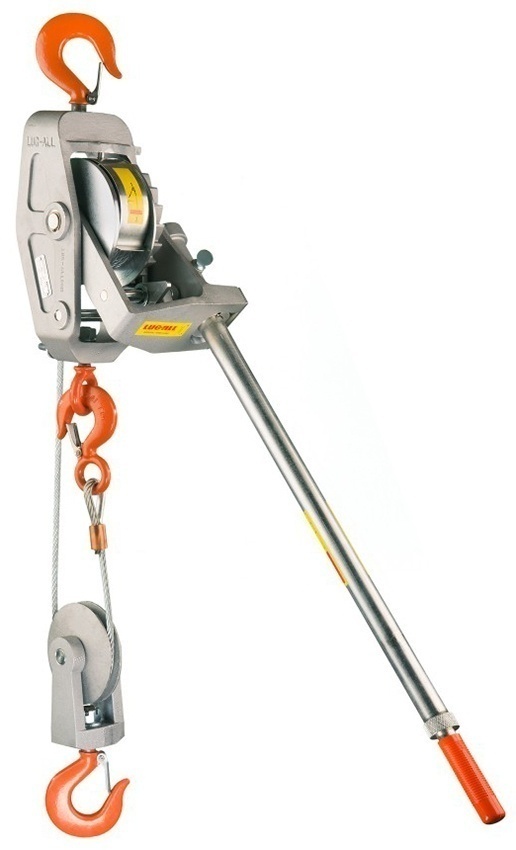

3 Ton Specifications:

• Capacity: 3 ton
• Weight: 34 lbs.
• Double Line Capacity: 6,000 lbs.
• Double Line Lift: 7 ft. 6 in.
• Single Line Capacity: 3,000 lbs.
• Single Line Lift: 15 ft.
• Cable Diameter: 5/16 in.
