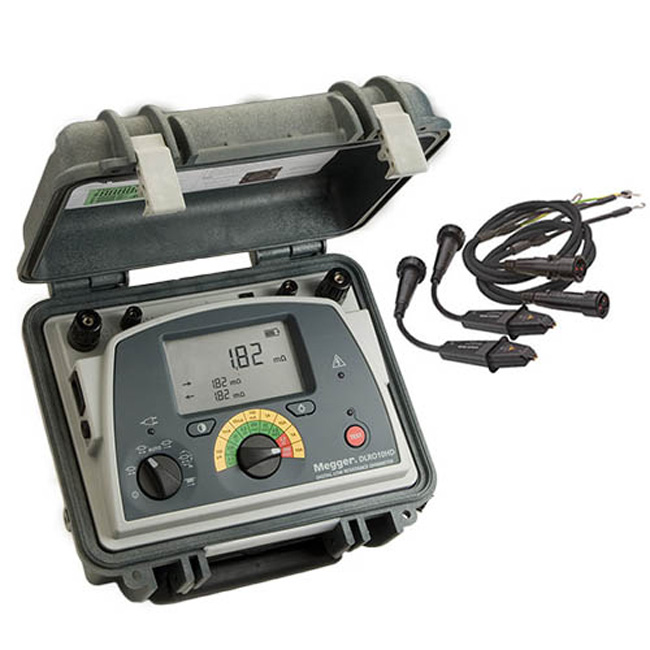

Megger DLRO10HD Dual Power 10A Low Resistance Ohmmeter

Features:

• High or low output power selection for condition diagnosis
• Rechargeable battery or line power supply, continuous operation, even with a dead battery
• 10 A for 60 seconds, less time waiting to cool, great for charging inductance
• High input protection to 600 V, inadvertent connection to line or UPS voltage will not blow a fuse
• Heavy duty case: IP 65 lid closed, IP54 operational (battery operation only)
• A rotary switch selects one of five test modes, including an auto-start on connection, giving ease of use

The Megger DLRO10HD Dual Power 10A Low Resistance Ohmmeter combines the ultimate simplicity of operation with a rugged IP65 case designed for stable ground and bench operation. The unit is powered from either its rechargeable battery or line power making it suitable for continuous testing in production line/repetitive use environments. Rotary switch controls are simple and easy to operate in all weather conditions and with gloved hands. A large, clear,  backlit LCD display is easy to read from a distance. The DLRO10HD provides significantly enhanced compliance and is capable of delivering 10A into measurements up to 250mΩ and 1A into measurements up to 2.5Ω. The duration of each test may be up to 60 seconds. The  DLRO10HD  is rated  CATIII  300V  provided the optional terminal cover is fitted to the instrument. Details of which can be found in the ordering information panel of this datasheet. The  DLRO10HD  provides  five  test  modes  each  of  which  is  selected through a simple rotary control
